Locking- Distal Femur Plate 4.5/5.0mm
Locking- Distal Femur Plate 4.5/5.0mm
Locking Distal Femur Plate 4.5/5.0mm
Product Overview:

This Locking Distal Femur Plate is fabricated for the stable fixation of complex distal femur fractures, including osteoporotic and comminuted cases. Made with anatomically contoured profiles, the plate ensures an optimal fit to the distal femur, minimizing soft tissue irritation and reducing the need for intraoperative bending. Its locking screw technology provides angular stability, promoting reliable fixation even in compromised bone quality. The combination of dynamic compression slots and multiple locking options allows surgeons to address varied fracture patterns with precision. Manufactured from high-grade, biocompatible titanium and stainless steel, this distal femur locking plate supports consistent clinical outcomes while adhering to stringent international quality standards.

Siora also manufactures international quality proximal femur plates.

Available Types and Sizes of Our Locking Distal Femur Plates

Siora Srugicals Pvt. Ltd. fabricates distal femur locking plates in different structural configurations and sizes, suitable for various fracture patterns and patient anatomies.

helix logo
Locking- Distal Femur Plate 4.5/5.0mm

Locking Distal Femur Plate 4.5/5.0mm

Designed for reliable fixation of distal femur fractures, this plate combines anatomical contouring with a robust locking mechanism. It supports stable fixation in both simple and complex fracture patterns, ensuring proper alignment while reducing soft tissue disruption. Suitable for use in osteoporotic bone conditions.

  • Indications:
    • Supra Condylar Fractures Of Distal Femur.
    • Complex Intra – Articular Fractures Of Distal Femur.
    • Low Periprosthetic Fracture Of Distal Femur.
    • Nonunion Of Distal Femur.
    • Comminuted Facturs Of Distal Femur.
Cat No. (Stainless Steel)HolesCat No. (Titanium)
853.215 – 853.2235 – 13 (Left)Ti.853.215 – Ti.853.223
853.205 – 853.2135 – 13 (Right)Ti.853.205 – Ti.853.213

A) 5.0mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.314 To 106.39014mm To 90mmTi.106.314 To Ti.106.390
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.414 To 106.49014mm To 90mmTi.106.414 To Ti.106.490

B) 4.5mm Cortical Screw Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.214 To 106.27414mm To 74mmTi.106.214 To Ti.106.274
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.120 To 106.16020mm To 60mmTi.106.120 To Ti.106.160

C) 5.0mm Locking Head Cancellous Screw Full Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
110.725 To 110.81025mm To 110mmTi.110.725 To Ti.110.810
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
110.925 To 110.99825mm To 110mmTi.110.925 To Ti.110.998

D) 5.0mm Locking Head Cancellous Screw 16mm Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
108.550 To 108.61040mm To 110mmTi.108.540 To Ti.108.610
Cat No.Descreption
260.430Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated
260.320Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long
301.029Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw)
301.050Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle
303.020Large Depth Gauge
803.110LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm
803.112Tap for 5.0mm Locking Head Screws
804.164Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm)
804.170Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M)
XP.301.082Star Drive Screw Driver – 3.5mm Tip/T-20
Locking Distal Lateral Femur Plate 4.5/5.0mm

Locking Distal Lateral Femur Plate 4.5/5.0mm

This lateral locking distal femur plate is shaped to match the outer contour of the distal femur, offering strong lateral column support. Its locking screw system enhances fixation strength, especially in comminuted fractures. The design allows surgeons to achieve accurate placement with minimal intraoperative adjustments.

  • Indications:
    • Osteotomy of Lateral Distal Femur & Fixation of Fractures
Cat No. (Stainless Steel)HolesCat No. (Titanium)
889.005 – 889.0135 – 13 (Left)Ti.889.005 – Ti.889.013
889.105 – 889.1135 – 13 (Right)Ti.889.105 – Ti.889.113

A) 5.0mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.314 To 106.39014mm To 90mmTi.106.314 To Ti.106.390
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.414 To 106.49014mm To 90mmTi.106.414 To Ti.106.490

B) 4.5mm Cortical Screw Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.214 To 106.27414mm To 74mmTi.106.214 To Ti.106.274
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.120 To 106.16020mm To 60mmTi.106.120 To Ti.106.160

C) 5.0mm Locking Head Cancellous Screw Full Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
110.725 To 110.81025mm To 110mmTi.110.725 To Ti.110.810
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
110.925 To 110.99825mm To 110mmTi.110.925 To Ti.110.998

D) 5.0mm Locking Head Cancellous Screw 16mm Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
108.550 To 108.61040mm To 110mmTi.108.540 To Ti.108.610
Cat No.Descreption
260.430Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated
260.320Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long
301.029Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw)
301.050Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle
303.020Large Depth Gauge
803.110LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm
803.112Tap for 5.0mm Locking Head Screws
804.164Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm)
804.170Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M)
XP.301.082Star Drive Screw Driver – 3.5mm Tip/T-20
Locking Distal Femur Osteotomy Plate 4.5 / 5.0mm

Locking Distal Femur Osteotomy Plate 4.5 / 5.0mm

An anatomically contoured plate for distal femoral osteotomies, compatible with 4.5mm and 5.0mm screws. It provides angular stability, precise alignment correction, and durable fixation during bone healing.

  • Indications:
    • Osteotomy of the Medial Distal Femur of Fixation of Fractures.
Cat. No. (Stainless Steel)HolesCat No. (Titanium)
899.004 – 899.0064 – 6 (Left)Ti.899.004 – Ti.899.006
899.104 – 899.1064 – 6 (Right)Ti.899.104 – Ti.899.106

A) 5.0mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.314 To 106.39014mm To 90mmTi.106.314 To Ti.106.390
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.414 To 106.49014mm To 90mmTi.106.414 To Ti.106.490

B) 4.5mm Cortical Screw Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.214 To 106.27414mm To 74mmTi.106.214 To Ti.106.274
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.120 To 106.16020mm To 60mmTi.106.120 To Ti.106.160

C) 5.0mm Locking Head Cancellous Screw Full Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
110.725 To 110.81025mm To 110mmTi.110.725 To Ti.110.810
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
110.925 To 110.99825mm To 110mmTi.110.925 To Ti.110.998

D) 5.0mm Locking Head Cancellous Screw 16mm Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
108.550 To 108.61040mm To 110mmTi.108.540 To Ti.108.610
Cat No.Descreption
260.430Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated
260.320Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long
301.029Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw)
301.050Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle
303.020Large Depth Gauge
803.110LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm
803.112Tap for 5.0mm Locking Head Screws
804.164Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm)
804.170Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M)
XP.301.082Star Drive Screw Driver – 3.5mm Tip/T-20
Locking Anteromedial Distal Femur Plate 4.5/5.0mm

Locking Anteromedial Distal Femur Plate 4.5/5.0mm

Specifically designed for anteromedial application, this plate supports fixation in challenging fracture patterns involving the medial column. Its contoured structure ensures a close fit, while the locking mechanism provides dependable stability, making it suitable for both primary fixation and revision procedures.

  • Indications:
    • Metadiaphyseal Fractures Of Distal Femur
    • Nonuniun of Distal Femur
Cat No. (Stainless Steel)HolesCat No. (Titanium)
859.215 – 859.2215 – 11 (Left)Ti.859.215 – Ti.859.221
859.205 – 859.2115 – 11 (Right)Ti.859.205 – Ti.859.211

A) 5.0mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.314 To 106.39014mm To 90mmTi.106.314 To Ti.106.390
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.414 To 106.49014mm To 90mmTi.106.414 To Ti.106.490

B) 4.5mm Cortical Screw Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.214 To 106.27414mm To 74mmTi.106.214 To Ti.106.274
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.120 To 106.16020mm To 60mmTi.106.120 To Ti.106.160

C) 5.0mm Locking Head Cancellous Screw Full Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
110.725 To 110.81025mm To 110mmTi.110.725 To Ti.110.810
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
110.925 To 110.99825mm To 110mmTi.110.925 To Ti.110.998

D) 5.0mm Locking Head Cancellous Screw 16mm Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
108.550 To 108.61040mm To 110mmTi.108.540 To Ti.108.610
Cat No.Descreption
260.430Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated
260.320Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long
301.029Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw)
301.050Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle
303.020Large Depth Gauge
803.110LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm
803.112Tap for 5.0mm Locking Head Screws
804.164Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm)
804.170Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M)
XP.301.082Star Drive Screw Driver – 3.5mm Tip/T-20
VARILOCK logo

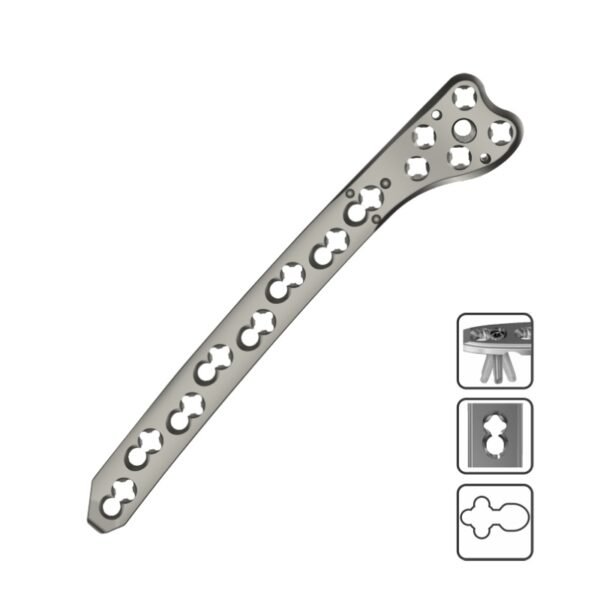

Locking Variable Angle Distal Femur Plate 4.5/5.0mm

Locking Variable Angle Distal Femur Plate 4.5/5.0mm

Engineered for surgical flexibility, this plate allows variable angle screw placement to better address complex fracture anatomies. It helps achieve targeted fixation while maintaining angular stability. Ideal for cases requiring customized screw trajectories without compromising construct strength.

  • This Plate Is To Be Use In (V.A. Locking Holes Allow +/-15° Off-Axis Screw Angulation)
  • Indications:
    • Supra Condylar Fractures of Distal femur.
    • Intra & Extra Articular Condylar Fractures of Distal femur.
    • Periprosthetic Fractures of Distal Femur.
    • Osteopenic Bone Fracture of Femur.
    • Nonunions & Malunions of Distal Femur.
Cat No. (Stainless Steel)HolesCat No. (Titanium)
890.105 – 890.1135 – 13 (Left)Ti.890.105 – Ti.890.113
890.005 – 890.0135 – 13 (Right)Ti.890.005 – Ti.890.013

A) 4.5mm Cortical Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.214 To 106.27414mm To 74mmTi.106.214 To Ti.106.274
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.120 To 106.16020mm To 60mmTi.106.120 To Ti.106.160

B) Variolock 5.0mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.920 To 106.99020mm To 90mmTi.106.920 To Ti.106.990
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–20mm To 90mmTi.106.520 To Ti.106.590

C)5.0mm Periprosthetic Locking Head Screw

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.812 To 106.82012mm To 20mmTi.106.812 To Ti.106.820
–22mm To 30mmTi.106.822 To Ti.106.830

D) 5.0mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
106.314 To 106.39014mm To 90mmTi.106.314 To Ti.106.390
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
106.414 To 106.49014mm To 90mmTi.106.414 To Ti.106.490

E) Variolock 5.0mm Locking Head Cancellous Screw Full Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
111.725 To 111.81025mm To 110mmTi.111.725 To Ti.111.810
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–25mm To 110mmTi.111.425 To Ti.111.510

F) 5.0mm Locking Head Cancellous Screw Full Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
110.725 To 110.81025mm To 110mmTi.110.725 To Ti.110.810
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
110.925 To 110.99825mm To 110mmTi.110.925 To Ti.110.998

G) 5.0mm Locking Head Cancellous Screw 16mm Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–40mm To 45mmTi.108.540 To Ti.108.545
108.550 To 108.61050mm To 110mmTi.108.550 To Ti.108.610

H) 5.0mm Taper Head Cancellous Screw 16mm Thread - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
108.710 To 108.76060mm To 110mmTi.108.710 To Ti.108.760
Cat No.Descreption
260.430Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated
260.320Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long
263.040Bone Tap with T – Handle Dia. 4.5mm Thread Length 70mm, Total Length 125mm
301.129Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) – Silicon Handle
301.114Large Hexagonal Screw Driver 3.5mm Tip – Sillicon Handle
301.130Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 4.5mm Cortical & 6.5mm Cancellous Screw) –  Silicon Handle
303.020Large Depth Gauge
803.110LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm
803.112Tap for 5.0mm Locking Head Screws
804.164Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm)
804.170Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M)
XP.301.082Star Drive Screw Driver – 3.5mm Tip/T-20
803.114Variable Angle Drill Guide For 4.5/5.0MM Variable Angle – LCP Plate
804.116Conical Type Variable Angle Drill Sleeve 4.5/5.0mm

Key Features of Our Distal Femur Locking Plates

Anatomical Contouring

Pre-shaped to match the distal femur’s natural anatomy, the plate ensures a precise fit, reducing intraoperative adjustments and minimizing soft tissue irritation.

Threaded locking holes allow screws to lock into the plate, creating a fixed-angle construct that enhances stability, especially in osteoporotic bone.

Threaded locking holes allow screws to lock into the plate, creating a fixed-angle construct that enhances stability, especially in osteoporotic bone.

Designed to support minimally invasive techniques, preserving blood supply and promoting faster biological healing.

Manufactured from medical-grade stainless steel or titanium, offering durability, corrosion resistance, and compatibility with the human body.

The plate design evenly distributes mechanical stress across the fracture site, reducing the risk of implant failure and supporting long-term fixation success.

Key Features of Our Distal Femur Locking Plates
Key Indications of Locking Plates for Distal Femur Fractures

Key Indications of Locking Plates for Distal Femur Fractures

Comminuted Distal Femur Fractures

Ideal for multi-fragmentary fractures where stable fixation is challenging, allowing controlled alignment and secure fragment stabilization.

Recommended for patients with poor bone quality, as the locking mechanism provides reliable fixation without relying solely on bone purchase.

Suitable for fractures extending into the joint surface, enabling precise reconstruction and maintenance of articular congruity.

Effective in managing fractures occurring around knee prostheses, where conventional fixation options may be limited.

Used in corrective surgeries to realign improperly healed fractures or to stabilize non-healing fracture sites.

Designed to address both extra-articular and intra-articular fracture patterns in the distal femur region with enhanced stability.

frequently asked questions

What is a distal femur locking plate, and where is it used?

A distal femur locking plate is an orthopedic implant used to treat fractures in the lower part of the femur, just above the knee joint. It is commonly used in distal femur fractures, especially in complex, comminuted, or osteoporotic cases where stable fixation is required.

The best manufacturer is one that provides consistent quality, international certifications, and a reliable global supply. Distributors usually prefer suppliers with ISO and CE certifications along with proven export experience in multiple countries.

The price depends on material, quantity, and design. Stainless steel plates are more cost-effective, while titanium plates are priced higher. Bulk orders usually come with better pricing and distributor margins. Contact us for more details.

Locking plates provide angular stability and do not rely on bone compression for fixation. This makes them more effective in osteoporotic bone and complex fractures, reducing the risk of implant failure.

Yes, OEM and private labeling services are available. Distributors can sell the products under their own brand with customized packaging and labeling.

You should check certifications, request product samples, review manufacturing processes, and confirm export experience. Reliable suppliers provide transparent documentation and support.

Yes, LCP distal femur plates are highly suitable for osteoporotic bone because locking screws provide stable fixation without depending on bone density.

Anatomically contoured plates fit better to the bone, reduce soft tissue irritation, and improve surgical outcomes. The plates are available specific to the left and right femur bones.

You can contact manufacturers through their website inquiry forms, email, or WhatsApp. Sharing your requirements helps in receiving accurate quotations quickly.

Leave A Message

If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.

WhatsApp
