Locking Proximal Femur Cable Plate
Proximal Femur Plates
Product Overview:
Proximal Femur Locking Plates from Siora Surgicals Pvt. Ltd. are engineered to deliver stable fixation in complex hip and upper femur fractures, including intertrochanteric and subtrochanteric patterns. Designed with anatomically contoured profiles, these proximal femur plates ensure a close fit to the proximal femur, reducing intraoperative adjustments. The locking screw mechanism provides angular stability, making them especially effective in osteoporotic bone where conventional fixation may fail. Manufactured from medical-grade stainless steel or titanium, these large fragment locking plates offer excellent strength, corrosion resistance, and biocompatibility. Multiple screw options and optimized hole placement allow surgeons to achieve precise fixation while supporting early mobilization and improved patient outcomes.
Available Types and Sizes of Our Locking Proximal Femur Plates
We manufacture locking femur plates in different configurations and sizes to accommodate various fracture patterns and patient anatomies.

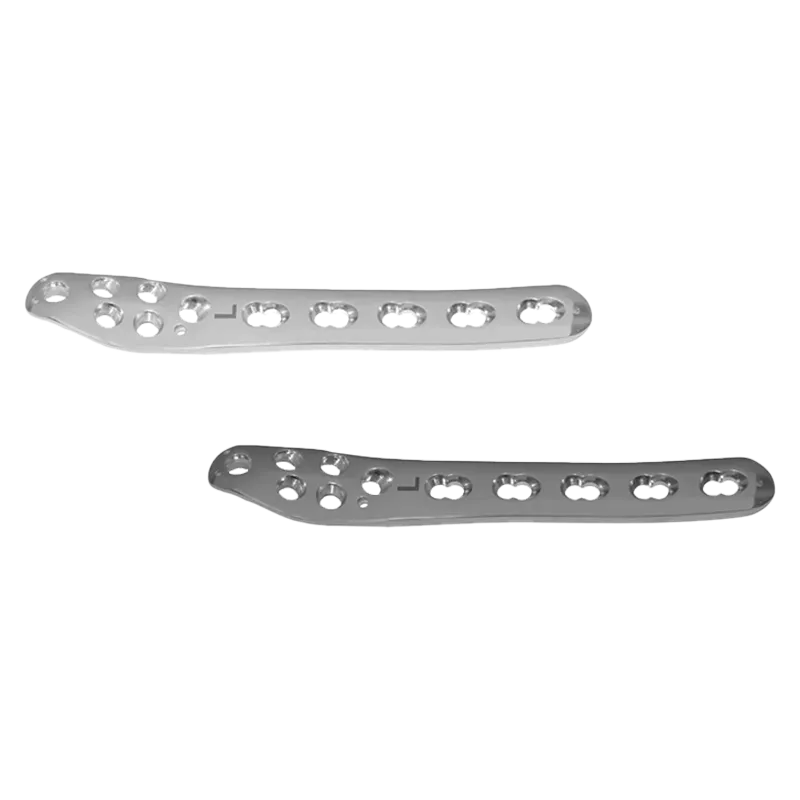

Locking Periarticular Proximal Femur Plate 4.5/5.0mm
Engineered for complex fractures around the proximal femur, this locking periarticular plate offers anatomical contouring for a precise fit. Multiple locking options provide stable fixation in osteoporotic bone. Its low-profile design minimizes soft tissue irritation while supporting early mobilization and reliable fracture healing outcomes.
- Indications:
- Fractures Of The Trochnatric Region Including Simple Intertrochantric, Reverse Intertrochantric, Transvers Trochantric, Complex Multi Fragmentary And Fractures With Medial Cortex Instability.
- Proximal femur fractures With Ipsilateral Shaft fractures.
- Metastatic Proximal Femur Fracture.
- Proximal Femur Osteotomis.
- Fracture In Osteoperic Bone.
- Nonunions And Malunions.
- Subcapital Femoral Neck Fractures.
Following Size of Locking Periarticular Proximal Femur Plate 4.5/5.0mm are available in Stainless Steel & Titanium Material
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 878.005 – 878.013 | 5 – 13 (Left) | Ti.878.005 – Ti.878.013 |
| 878.105 – 878.113 | 5 – 13 (Right) | Ti.878.105 – Ti.878.113 |
Following Screws are to be use with Above Plates:
A) 5.0mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
C) 5.0mm Locking Head Cancellous Screw Full Thread - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 110.725 To 110.810 | 25mm To 110mm | Ti.110.725 To Ti.110.810 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 110.925 To 110.998 | 25mm To 110mm | Ti.110.925 To Ti.110.998 |
D) 5.0mm Locking Head Cancellous Screw 16mm Thread - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 108.550 To 108.610 | 40mm To 110mm | Ti.108.540 To Ti.108.610 |
Following Instruments to be use with above Plate:
| Cat No. | Descreption |
| 260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
| 260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
| 301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
| 301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
| 303.020 | Large Depth Gauge |
| 803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
| 803.112 | Tap for 5.0mm Locking Head Screws |
| 804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
| 804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
| XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |

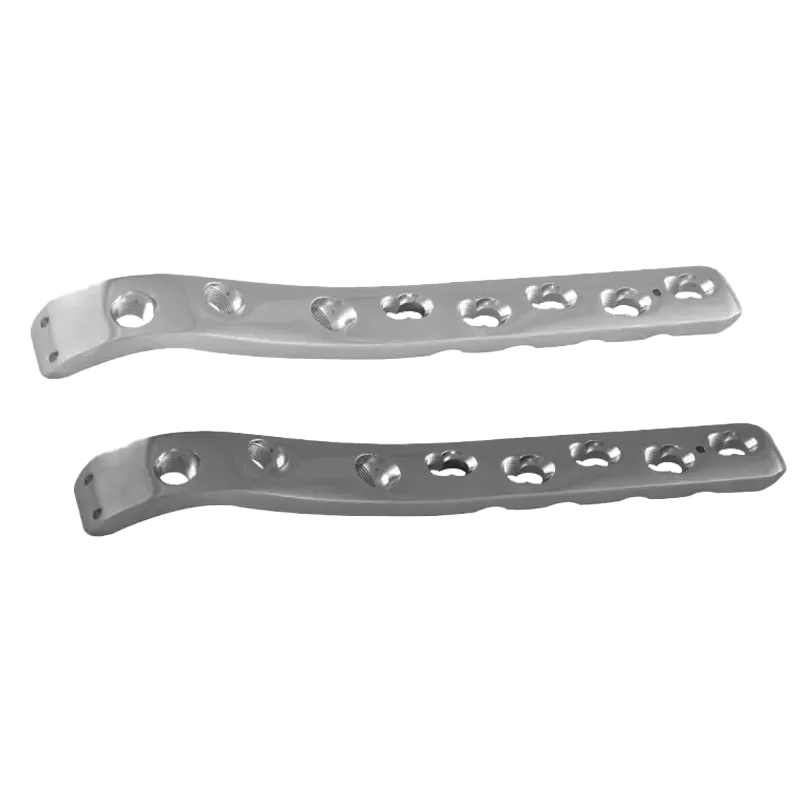

Locking Proximal Femur Plate 5.0/7.0mm
This locking proximal femur plate is designed to manage various proximal femoral fractures with enhanced stability. It features angular stability through locking screw technology and an anatomically contoured profile. Ideal for osteoporotic bones, it ensures secure fixation, promotes healing, and allows surgeons better intraoperative flexibility and control.
- This Plate Is To Be Use In Proximal Femur
- Indications:
- Fractures Of The Trochentric Region, Trochantric Simple, Cervicotrochantric, Trochanterrodiaphyseal, Miltifragmentary Pertrochantric, Intertrochentric Reversed Or Transverse Fracture.
- Fractures Of The Proximal End Of The Femur Combined With Ipsilateral Shaft Fractures.
- Metastic Fracture Of The Proximal Femur.
- Osteotomies Of The Proximal Femur.
- Use In Fixation Of Osteopenic Bone & Fixation Of Nonunion Or Malunion.
Following Size of Locking Proximal Femur Plate 5.0/7.0mm are available in Stainless Steel & Titanium Material
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 870.103 – 870.111 | 3 – 11 (Left) | Ti.870.103 – Ti.870.111 |
| 870.133 – 870.140 | 3 – 11 (Right) | Ti.870.133 – Ti.870.140 |
Following Screws are to be use with Above Plates:
A) 5.0mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 7.0mm Locking Cannulated Cancellous Screw 16mm Thread
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 111.150 To 111.210 | 50mm To 110mm | Ti.111.150 To Ti.111.210 |
C) 7.0mm Locking Cannulated Cancellous Screw 32mm Thread
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 112.160 To 112.210 | 50mm To 110mm | Ti.112.150 To Ti.112.210 |
Following Instruments to be use with above Plate:
| Cat No. | Descreption |
| 260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
| 301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
| 301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
| 303.020 | Large Depth Gauge |
| 803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
| 803.112 | Tap for 5.0mm Locking Head Screws |
| 804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
| 804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
| XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
| 703.010 | Cannulated Drill Bit 4.5mm |
| 703.011 | Cannulated Tap with T – Handle 7.0mm |
| 703.015 | Threaded Guide Wire Dia 2.0mm. X Length 230mm |
| 703.016 | Large Cannulated Hexagonal Screw Driver 3.5mm Tip – Sillicon Handle |
| 803.111 | LCP Drill Sleeve 7.0mm for Drill Bit 4.5mm (Use With Proximal Femur Plate) |

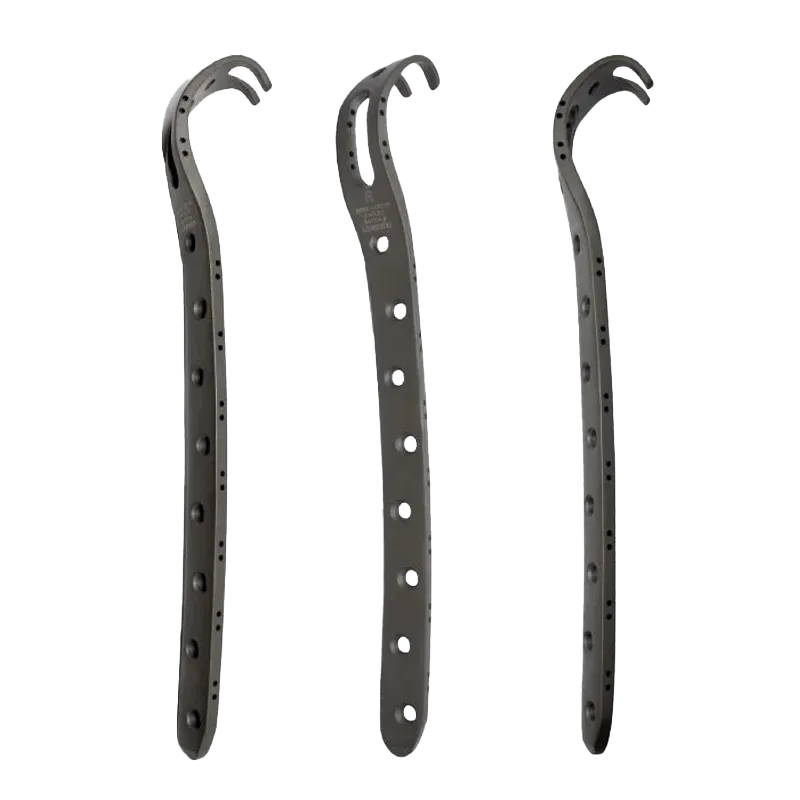

Locking Proximal Femur Cable Plate
Combining locking screw fixation with cable cerclage support, this plate is ideal for complex and periprosthetic fractures. It provides enhanced stability in compromised bone conditions. The system allows secure fixation around implants, ensuring balanced load distribution, reduced micromotion, and improved healing in challenging proximal femur fracture cases.
| Cat No. (Titanium) | Angle | Holes |
| Ti.898.002 – Ti.898.014 | Left | 2 – 14 |
| Ti.898.102 – Ti.898.114 | Right | 2 – 14 |

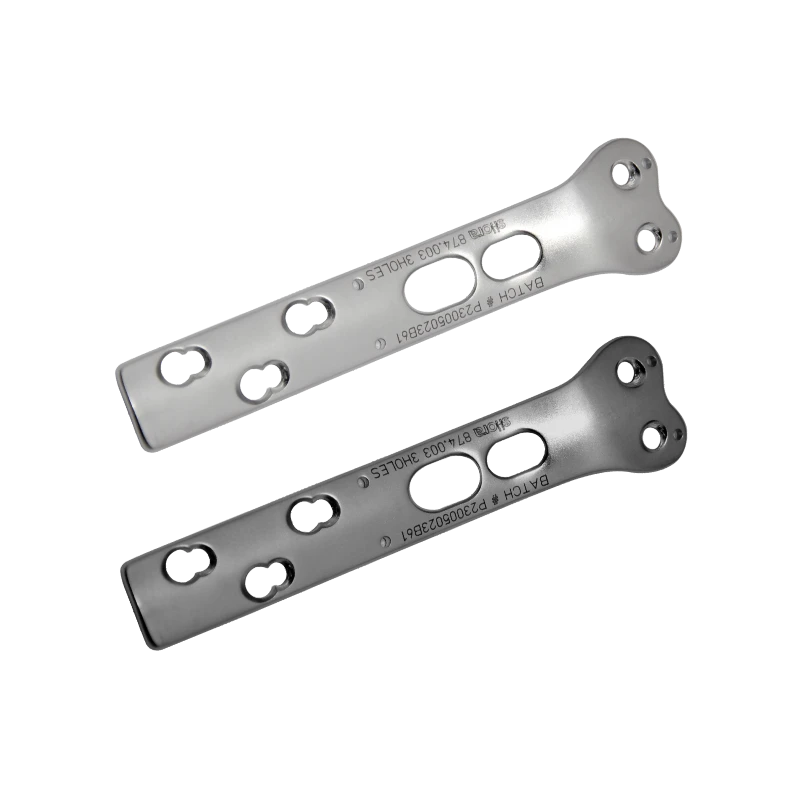

Locking Lateral Support Plate 3.5/4.0mm (use with PFN/TFN nail)
Designed to supplement PFN and TFN fixation, this locking support plate enhances lateral wall stability, improves fracture fixation strength, and helps maintain reduction in complex trochanteric femur fractures.
- Indications:
- An Unstable Trochanteric Fracture Femur with Lateral Wall Comminution.
Following Size of Locking Lateral Support Plate 3.5/4.0mm (use with PFN/TFN nail) are available in Stainless Steel & Titanium Material:
| Cat. No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 874.002 – 874.003 | 2 – 3 | Ti.874.002 – Ti.874.003 |
Following Screws are to be use with Above Plates:
A) 3.5mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 102.310 To 102.380 | 10mm To 80mm | Ti.102.310 To Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 102.410 To 102.480 | 10mm To 80mm | Ti.102.410 To Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 105.512 To 105.580 | 12mm To 80mm | Ti.105.512 To Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 105.612 To 105.680 | 12mm To 80mm | Ti.105.612 To Ti.105.680 |
C) Cortical Screw 3.5mm Dia. - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 102.210 To 102.296 | 10mm To 100mm | Ti.102.210 To Ti.102.300 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 102.710 To 102.760 | 10mm To 60mm | Ti.102.710 To Ti.102.760 |
Following Instruments to be use with above Plate:
| Cat No. | Descreption |
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated |
| 260.250 | Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 264.037 | Bone Tap – Quick Coupling End Dia. 4.0mm, – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.025 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screw) |
| 301.026 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 303.010 | Small Depth Gauge |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M) |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

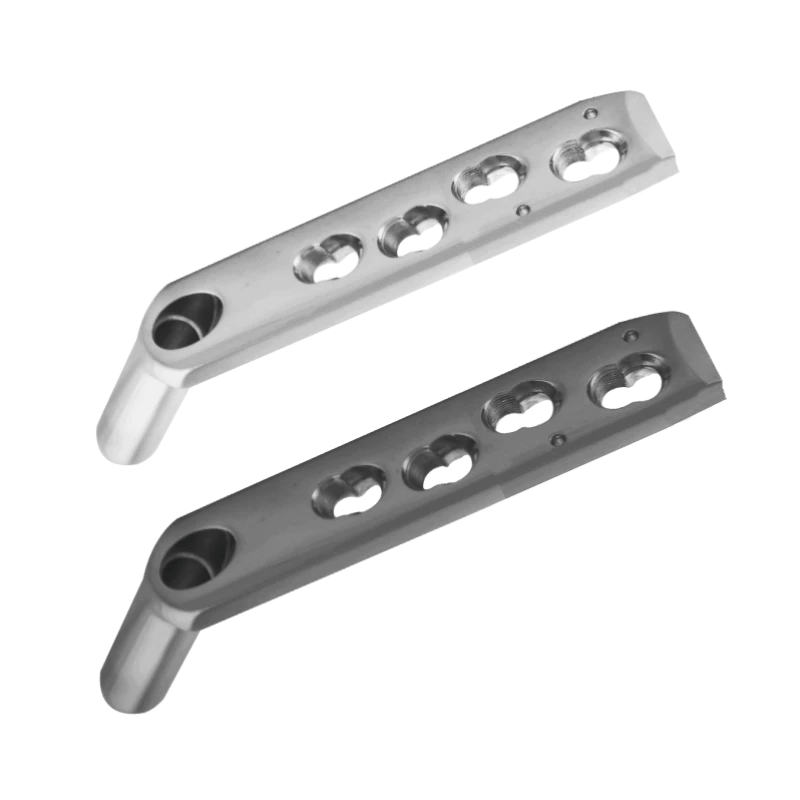

Locking- DHS- 135 Deg. Long Barrel
A robust fixation plate designed for proximal femoral fractures. The 135° long-barrel configuration provides controlled sliding, enhanced stability, and secure fixation when used with dynamic hip screw systems.
- Indications:
- Subtrochantric Fractures.
- Intertrochantric Fractures With Shaft Femur.
- Intertrochantric Fractures (Type A-3).
Following Size of Locking- DHS- 135 Deg. Long Barrel are available in Stainless Steel & Titanium Material
| Cat. No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 166.303 – 166.310 | 3 – 20 | Ti.166.303 – Ti.166.320 |
Following Screws are to be use with Above Plates:
A) 5.0mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
| Stainless Steel | Star Driave | Titanium |
| Cat No. | Size | Cat No. |
| 106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
C) DHS/DCS Screw With Compression Screw
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 168.050 To 168.145 | 50mm To 145mm | Ti.168.050 To Ti.168.145 |
Following Instruments to be use with above Plate:
| Cat No. | Descreption |
| 260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
| 260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
| 301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
| 301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
| 303.020 | Large Depth Gauge |
| 803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
| 803.112 | Tap for 5.0mm Locking Head Screws |
| 804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
| 804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
| XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
| 701.022 | DHS Angle Guide – 135º |
| 701.023 | T – Handle with Quick Coupling |
| 701.024 | Direct Measuring Device – S.S. |
| 701.025 | DHS Tripple Reamer |
| 701.026 | Wrench for DHS Screws |
| 701.027 | DHS Impactor |
| 701.028 | DHS Tap |
| 701.029 | Centering Sleeve for DHS Tap |
| 701.030 | Centering Sleeve for DHS Wrench |
| 701.031 | Coupling Screw for Inserting DHS Screw |
| 701.032 | Guide Shaft for Coupling Screw |
| 701.033 | Long Coupling Screw for DHS Screw Removal |
| 701.034 | Stylet 2.5mm |
| 701.021 | Threaded Guide Wire 2.5mm |

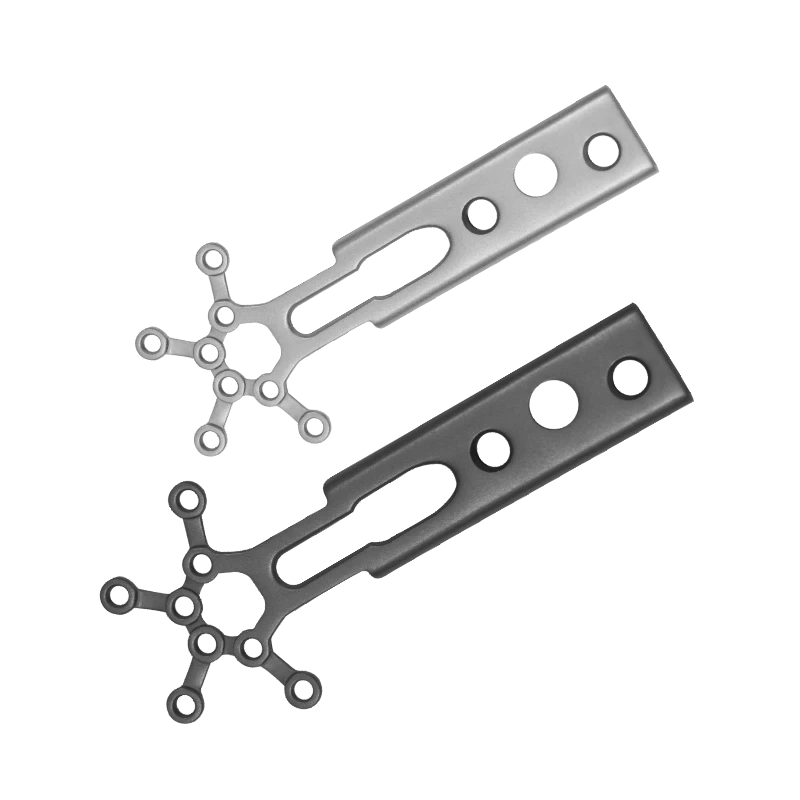

DHS Trochanter Stabilizing Locking Plate (Use with DHS Plates)
Engineered to augment DHS constructs, this locking plate supports unstable trochanteric fractures by preventing lateral wall collapse, improving fixation stability, and promoting reliable fracture healing outcomes.
- Indications:
- (Use With DHS Plate)
- Unstable Intertrochantric Fractures.
- Compromised Lateral Wall.
- To Additional Support To The Greater Trochanter.
Following Size of DHS Trochanter Stabilizing Locking Plate (Use with DHS Plates) are available in Stainless Steel & Titanium Material
| Cat. No. (Stainless Steel) | Cat No. (Titanium) |
| 876.001 | Ti.876.001 |
Following Screws are to be use with Above Plates:
A) 3.5mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 102.310 To 102.380 | 10mm To 80mm | Ti.102.310 To Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 102.410 To 102.480 | 10mm To 80mm | Ti.102.410 To Ti.102.480 |
Following Instruments to be use with above Plate:
| Cat No. | Descreption |
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated |
| 260.250 | Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 264.037 | Bone Tap – Quick Coupling End Dia. 4.0mm, – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.025 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screw) |
| 301.026 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 303.010 | Small Depth Gauge |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M) |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

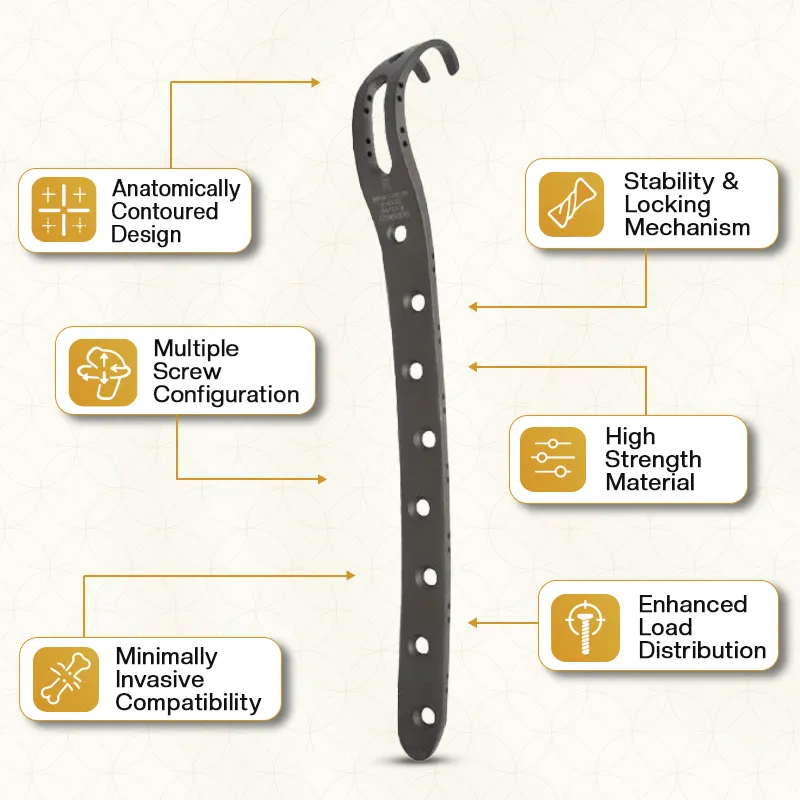

Key Features of Proximal Femur Plate
Anatomically Contoured Design
Pre-shaped to match the natural curvature of the proximal femur, minimizing intraoperative bending and ensuring a better fit.
Angular Stability with Locking Mechanism
Locking screw technology creates a fixed-angle construct, enhancing stability, especially in osteoporotic or comminuted fractures.
Multiple Screw Configuration Options
Strategically placed holes enable versatile screw placement for secure fixation across various fracture patterns.
High-Strength Biocompatible Material
Manufactured from medical-grade stainless steel or titanium for durability, corrosion resistance, and long-term safety.
Minimally Invasive Compatibility
Designed to support less invasive surgical techniques, helping reduce soft tissue damage and operative time.
Enhanced Load Distribution
Evenly distributes mechanical stress across the implant, lowering the risk of implant failure and supporting early mobilization.
Indications of Proximal Femur Locking Plates
Intertrochanteric Fractures
Ideal for stabilizing fractures occurring between the greater and lesser trochanter, ensuring secure fixation and early mobilization.
Subtrochanteric Fractures
Provides strong support in high-stress regions just below the lesser trochanter, where fracture healing can be challenging.
Osteoporotic Bone Fractures
Recommended for patients with reduced bone density, where the locking mechanism enhances fixation strength and prevents screw loosening.
Comminuted Proximal Femur Fractures
Effective in multi-fragmentary fractures by maintaining alignment and offering angular stability.
Pathological Fractures
Used in fractures caused by underlying conditions like tumors, where additional implant stability is crucial.
frequently asked questions
What are the advantages of locking proximal femur plates over conventional plates?
Locking plates offer:
- Better fixation in osteoporotic bones
- Reduced risk of screw loosening
- Improved load distribution
- Minimally invasive surgical options
These benefits make them preferred in modern orthopedic trauma management.
What materials are used in proximal femur locking plates?
High-quality proximal femur plates are typically manufactured using:
- Medical-grade stainless steel (SS 316L)
- Titanium alloy (Ti-6Al-4V)
These materials ensure biocompatibility, corrosion resistance, and high strength.
Are proximal femur locking plates suitable for osteoporotic patients?
Yes, our proximal and even distal femur locking plate technology is highly effective in osteoporotic bones due to angular stability and reduced dependence on bone quality.
What makes a proximal femur locking plate system of high-quality?
A high-quality system typically features precise machining, accurate locking threads, anatomical contouring, and strong fatigue resistance. International buyers also look for proper certifications and consistent product quality across batches.
Do you offer OEM or private labeling options?
Yes, we provide OEM and private labeling services for distributors and importers. This allows businesses to sell products under their own brand while maintaining international quality standards.
Who is the best proximal femur locking plate manufacturer for export?
The best manufacturer is one that offers international certifications, consistent quality, and reliable supply. Distributors usually prefer suppliers that provide ISO- and CE-certified products, competitive pricing, and experience with global exports.
What packaging options are available for international distribution?
We offer sterile and non-sterile packaging. Our packaging and labeling processes are carried out in ISO Class 7 cleanroom facilities, adhering to ISO 14644 standards to maintain product integrity and meet global regulatory requirements.
Leave A Message
If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
