Locking Dorsal Distal Radius T- Plate Head 3 Holes 2.7mm
Distal Radius Plates
Product Overview:
Locking Distal Radius Plates are engineered to provide stable fixation for complex distal radius fractures, including intra-articular and osteoporotic cases. Designed with anatomically contoured profiles, these plates ensure an optimal fit, minimizing soft tissue irritation and reducing the need for intraoperative adjustments. The locking screw mechanism enhances angular stability, supporting early mobilization and consistent healing outcomes. Precision-machined from medical-grade titanium or stainless steel, the implants offer high strength, corrosion resistance, and biocompatibility. Multiple screw hole configurations allow surgeons to address varied fracture patterns with confidence, making them a reliable choice in modern orthopedic trauma care.
Keeping the orthopedic advancements under check, siora also manufactures clavicle plates, distal & proximal humerus plates, olecranon plates, and distal radius plates under its small fragment locking implants category.
Available Types and Sizes of Distal Radius Fracture Plates
Siora manages a huge inventory of locking distal radius plates of different types and sizes to address both simple and complex fracture patterns. Our distal radius system is designed to accommodate varying patient anatomies while delivering improved post-surgical outcomes.
Locking Dorsal Distal Radius T- Plate Head 3 Holes 2.7mm
Designed for dorsal fixation, this T-shaped plate offers strong subchondral support with three head holes for precise screw placement. It ensures stable fixation in complex distal radius fractures while maintaining anatomical alignment.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
- (The Two Plate Technique of Dorsal Fixation. This Offers a Strong Construct for Complex Distal Radius Fractures).
- (T-Plate, L-Plate, Oblique L Plate & Straight Plate are used in the Dorsal Two Plate Technique).
Following Size of Locking Dorsal Distal Radius T- Plate Head 3 Holes 2.7mm are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 884.003 – 884.004 | 3 – 4 | Ti.884.003 – Ti.884.004 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Dorsal Distal Radius Straight Plate 2.7mm
This straight dorsal distal radius plate is ideal for simple dorsal fractures, offering rigid fixation with a low-profile design. It allows accurate alignment and minimizes soft tissue irritation during recovery.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
- (The Two Plate Technique of Dorsal Fixation. This Offers a Strong Construct for Complex Distal Radius Fractures).
- (T-Plate, L-Plate, Oblique L Plate & Straight Plate are used in the Dorsal Two Plate Technique).
Following Size of Locking Dorsal Distal Radius Straight Plate 2.7mm are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 885.005 – 885.006 | 5 – 6 | Ti.885.005 – Ti.885.006 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Dorsal Distal Radius L- Plate Head 2 Holes 2.7mm
Featuring an L-shaped design, this distal radius plate supports targeted fixation in smaller fracture fragments. Two head holes enable controlled screw positioning for stable and reliable outcomes.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
- (The Two Plate Technique of Dorsal Fixation. This Offers a Strong Construct for Complex Distal Radius Fractures).
- (T-Plate, L-Plate, Oblique L Plate & Straight Plate are used in the Dorsal Two Plate Technique).
Following Size of Locking Dorsal Distal Radius L- Plate Head 2 Holes 2.7mm are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 886.003 – 886.004 | 3 – 4 (Left) | Ti.886.003 – Ti.886.004 |
| 886.103 – 886.104 | 3 – 4 (Right) | Ti.886.103 – Ti.886.104 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Dorsal Distal Radius L- Plate Head 3 Holes 2.7mm
With three head holes, this L-plate provides enhanced fixation in dorsal fractures. Its anatomical contour helps maintain reduction while offering flexibility in screw placement.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
- (The Two Plate Technique of Dorsal Fixation. This Offers a Strong Construct for Complex Distal Radius Fractures).
- (T-Plate, L-Plate, Oblique L Plate & Straight Plate are used in the Dorsal Two Plate Technique).
Following Size of Locking Dorsal Distal Radius L- Plate Head 3 Holes 2.7mm are available in Stainless Steel & Titanium Material
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 887.003 – 887.004 | 3 – 4 (Left) | Ti.887.003 – Ti.887.004 |
| 887.103 – 887.104 | 3 – 4 (Right) | Ti.887.103 – Ti.887.104 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Dorsal Distal Radius L- Plate Head 3 Holes, Angle 20 Deg. – 2.7 mm
Engineered with a 20° angled head, this plate improves access to challenging fracture sites. It ensures optimal screw trajectory and stable fixation in complex dorsal radius injuries.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
- (The Two Plate Technique of Dorsal Fixation. This Offers a Strong Construct for Complex Distal Radius Fractures).
- (T-Plate, L-Plate, Oblique L Plate & Straight Plate are used in the Dorsal Two Plate Technique).
Following Size of Locking Dorsal Distal Radius L- Plate Head 3 Holes, Angle 20 Deg. 2.7 MM are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 888.003 – 888.004 | 3 – 4 (Left) | Ti.888.003 – Ti.888.004 |
| 888.103 – 888.104 | 3 – 4 (Right) | Ti.888.103 – Ti.888.104 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Volar Plate 2.7mm Head 4 Holes (Head width 19.5mm)
This volar plate for distal radius fracture is designed with a compact head width for smaller anatomies. It ensures angular stability and supports early mobilization.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius (Volar Approach).
- Osteotomies of Distal Radius (Volar Approach).
Following Size of Locking Volar Plate 2.7mm Head 4 Holes (Head width 19.5mm) are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 894.002 – 894.010 | 2 – 10 (Left) | Ti.894.002 – Ti.894.010 |
| 894.102 – 894.110 | 2 – 10 (Right) | Ti.894.102 – Ti.894.110 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |

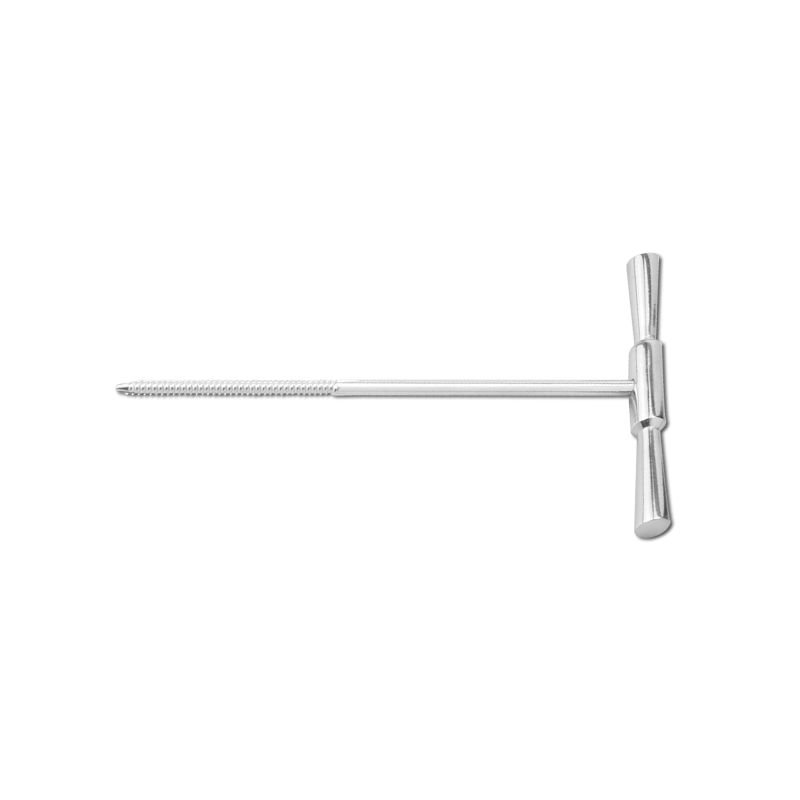

| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Volar Plate 2.7mm Head 4 Holes (Head width 22.0mm)
With a wider head, this volar locking distal radius plate provides increased coverage and support for larger fracture areas. It delivers stable fixation while preserving anatomical alignment.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius (Volar Approach).
- Osteotomies of Distal Radius (Volar Approach).
Following Size of Locking Volar Plate 2.7mm Head 4 Holes (Head width 22.0mm) are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 894.202 – 894.210 | 2 – 10 (Left) | Ti.894.202 – Ti.894.210 |
| 894.302 – 894.310 | 2 – 10 (Right) | Ti.894.302 – Ti.894.310 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Volar Plate 2.7mm (Use With 2.7mm Locking Head Screw) Head 5 Holes
Featuring five head holes, this volar locking plate allows versatile screw placement for complex fractures. It ensures strong fixation and optimal load distribution across the fracture site.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius (Volar Approach).
- Osteotomies of Distal Radius (Volar Approach).
Following Size of Locking Volar Plate 2.7mm (Use With 2.7mm Locking Head Screw) Head 5 Holes are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 867.002 – 867.010 | 2 – 10 (Left) | Ti.867.002 – Ti.867.010 |
| 867.102 – 867.110 | 2 – 10 (Right) | Ti.867.102 – Ti.867.110 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Juxta Articular Distal Radius Plate 2.7mm
Specifically designed for fractures near the joint surface, this juxta articular distal radius plate provides strong subchondral support. Its low-profile structure ensures minimal irritation while maintaining accurate joint reconstruction.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius (Volar Approach).
- Osteotomies of Distal Radius (Volar Approach).
Following Size of Locking Juxta Articular Distal Radius Plate 2.7mm are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 897.003 – 897.005 | 3 – 5 (Left) | Ti.897.003 – Ti.897.005 |
| 897.103 – 897.105 | 3 – 5 (Right) | Ti.897.103 – Ti.897.105 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
3.5 MM Locking T – Plate Right Angled
Designed for distal radius fracture fixation, this right-angled locking T-plate provides stable fragment support, angular stability, and reliable fixation while helping maintain anatomical alignment during healing.
This Plate is to be use in Distal Part of Radius in Forearm Bone
- Indications: Intra – Articular or Extra – Articular Fractures of Distal Radius.
Following Size of 3.5 MM Locking T – Plate Right Angled are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 141.303 – 141.309 | 3 – 9 | Ti.141.303 – Ti.141.309 |
Following Screws are to be use with Above Plates:

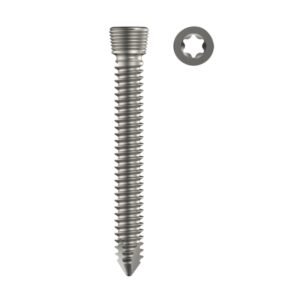

A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.026 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) |
| 301.025 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
3.5 MM Locking T – Plate Oblique Angled
This oblique-angled locking T-plate is designed to accommodate distal radius anatomy, offering secure fixation, improved screw placement flexibility, and dependable stability for fracture management.
This Plate is to be use in Distal Radius Part of Forearm Bone
- Indications:
- Intra – Articular or Extra – Articular Fractures of Distal Radius.
- Osteotomy of Distal Radius.
Following Size of 3.5 MM Locking T – Plate Oblique Angled are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 142.203 – 142.209 | 3 – 9 (Right) | Ti.142.203 – Ti.142.209 |
| 142.253 – 142.259 | 3 – 9 (Left) | Ti.142.253 – Ti.142.259 |
Following Screws are to be use with Above Plates:
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.026 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) |
| 301.025 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
Locking Extra Articular Small T-Plate 2.7mm (Head 5 Holes)
Engineered for extra-articular distal radius fractures, this 2.7mm locking plate features a five-hole head for enhanced fixation options, stable construct strength, and precise fracture stabilization.
- Indications:
- Displaced Intra – Articular or Extra Articular Fractures of Distal Radius.
- Osteotomies and Nonunions of Distal Radius.
- Fractures of Small Bones in Adults.
Following Size of Locking Extra – Articular Small T – Plate 2.7mm (Head 5 Holes) are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 141.403 – 141.410 | 3 – 10 (Left) | Ti.141.403 – Ti.141.410 |
| 141.413 – 141.420 | 3 – 10 (Right) | Ti.141.413 – Ti.141.420 |
Following Screws are to be use with Above Plates:
A) 2.7 mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft – 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Star Drive Screw Driver 2mm Tip/T-8 |
Locking Extra Articular Small T – Plate 2.7mm (Head 4 Holes)
Featuring a four-hole head configuration, this extra-articular locking T-plate delivers stable fixation, controlled compression, and effective support for distal radius fracture reconstruction procedures.
- Indications:
- Displaced Intra – Articular or Extra Articular Fractures of Distal Radius.
- Osteotomies and Nonunions of Distal Radius.
- Fractures of Small Bones in Adults.
Following Size of Locking Extra Articular Small T – Plate (Head 4 Holes) are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 141.503 – 141.505 | 3 – 5 (Left) | Ti.141.503 – Ti.141.505 |
| 141.513 – 141.515 | 3 – 5 (Right) | Ti.141.513 – Ti.141.515 |
Following Screws are to be use with Above Plates:
A) 2.7 mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C. End Shaft – 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Star Drive Screw Driver 2mm Tip/T-8 |
Locking Extra Articular Small T – Plate Oblique Angled-2.7mm (Head 4 Holes)
This oblique-angled 2.7mm locking plate provides secure fixation and optimized contouring, helping achieve stable fracture reduction and reliable support in extra-articular distal radius procedures.
- Indications:
- Intra – Articular or Extra Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
Locking Extra Articular Small T Plate Oblique Angled 2.7mm (Head 5 Holes)
Designed with an oblique-angled profile and five-hole head, this plate enables versatile screw positioning, strong fixation, and anatomical adaptation for extra-articular distal radius fractures.
- Indications:
- Intra – Articular or Extra Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
Following Size of Locking Extra Articular Small T Plate Oblique Angled 2.7mm (Head 5 Holes) are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 142.303 – 142.310 | 3 – 10 (Left) | Ti.142.303 – Ti.142.310 |
| 142.313 – 142.320 | 3 – 10 (Right) | Ti.142.313 – Ti.142.320 |
Following Screws are to be use with Above Plates:
A) 2.7 mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft – 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Star Drive Screw Driver 2mm Tip/T-8 |

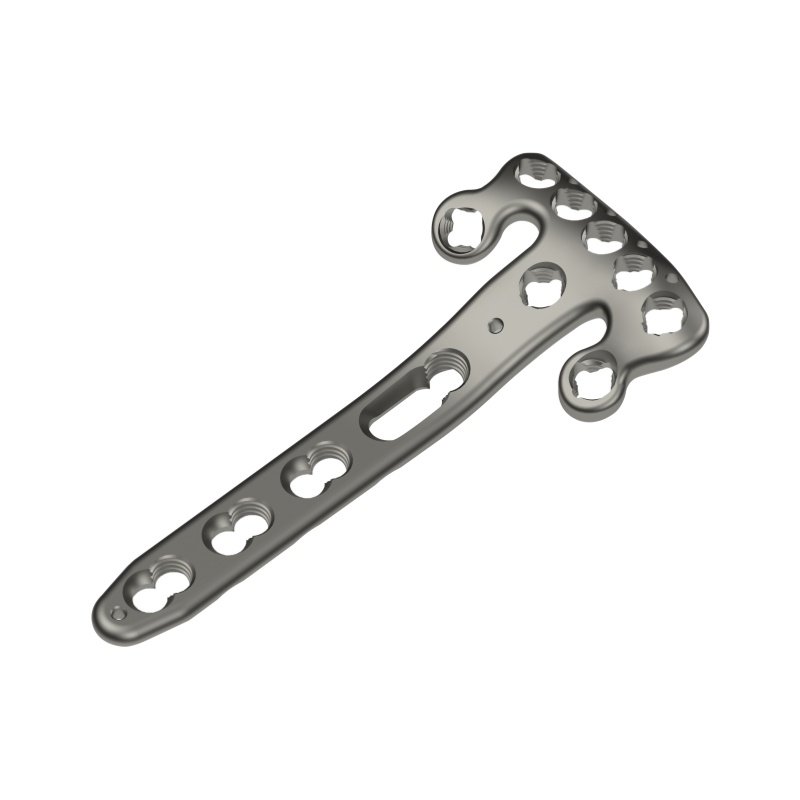

Locking Distal Radius Volar Rim Plate 2.7mm
Specially developed for volar rim fractures, this low-profile locking plate offers subchondral support, stable fixation, and anatomical restoration of complex distal radius fracture patterns.
- Indications:
- Complex Intra – Articular and Extra – Articular Fractures of Distal Radius.
- Osteotomies of Distal Radius.
Following Size of Locking Distal Radius Volar Rim Plate 2.7mm are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 881.003 – 881.006 | 3 – 6 (Left) | Ti.881.003 – Ti.881.006 |
| 881.103 – 881.106 | 3 – 6 (Right) | Ti.881.103 – Ti.881.106 |
Following Screws are to be use with Above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Wrist Fusion Plate Standard 2.7 / 3.5mm
Designed for wrist arthrodesis procedures, this fusion plate provides rigid stabilization, optimal load distribution, and dependable fixation to support successful wrist joint fusion outcomes.
- Indications:
- Wrist Arthrodesis & Factures of Other Small Bones.
- Specific Indications Include:
- Posttraumatric Arthritis of the Wrist Joints.
- Rheumatoid Wrist Deformities.
- Complex Carpal Instability.
- Postseptric Arthritis of the Wrist etc.
Following Size of Locking Wrist Fusion Plate Standard 2.7 / 3.5mm are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 880.008 | 8 | Ti.880.008 |
Following Screws are to be use with Above Plates:
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
C) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
D) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap – Quick Coupling End Dia. 4.0mm, – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.026 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) |
| 301.025 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
| 301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge (Measuring Length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
| 804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
| XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Locking Volar Plate 2.7mm Variable Angle – 5 HOLES (Head Width 25.5mm)
Offering maximum coverage, this plate features variable angle locking for precise screw orientation. It is ideal for complex and comminuted fractures requiring strong stabilization.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 867.002V – 867.010V | 2 – 10 (Left) | Ti.867.002V – Ti.867.010V |
| 867.102V – 867.110V | 2 – 10 (Right) | Ti 867.102V – Ti 867.110V |
Variolock Locking Variable Angle Volar Plate 2.7mm Head 4 Holes (Head width 19.5mm)
This variable angle volar locking plate enables flexible screw positioning for tailored fixation. Its compact design suits smaller bones while ensuring strong and stable fracture support.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 895.002 – 895.010 | 2 – 10 (Left) | Ti.895.002 – Ti.895.010 |
| 895.102 – 895.110 | 2 – 10 (Right) | Ti.895.102 – Ti.895.110 |
Variolock Locking Variable Angle Volar Plate 2.7mm Head 4 Holes (Head Width 22.0mm)
Designed for broader coverage, this volar locking plate distal radius combines variable angle technology with a wider head. It enhances fixation options for complex distal radius fractures.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 895.202 – 895.210 | 2 – 10 (Left) | Ti.895.202 – Ti.895.210 |
| 895.302 – 895.310 | 2 – 10 (Right) | Ti.895.302 – Ti.895.310 |
Variolock Locking Distal Radius Volar Rim Plate 2.4 / 2.7 mm – Variable Angle
Featuring variable-angle locking technology, this volar rim plate allows customized screw trajectories, enhanced fragment capture, and secure fixation for challenging distal radius fractures.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 881.203 – 881.206 | 3 – 6 (Left) | Ti.881.203 – Ti.881.206 |
| 881.213 – 881.216 | 3 – 6 (Right) | Ti.881.213 – Ti.881.216 |
Key Features of Our Distal Radius Locking Plates
Anatomically Contoured Design
Pre-shaped to match the distal radius anatomy, ensuring better fit, reduced soft tissue irritation, and minimal intraoperative bending.
Angular Stability with Locking Mechanism
Threaded screw-plate interface creates a fixed-angle construct, offering superior stability, especially in osteoporotic bone.
Multiple Screw Placement Options
Strategically placed holes allow versatile screw positioning to effectively manage simple to complex fracture patterns.
Low-Profile Plate Structure
Slim design minimizes tendon irritation and enhances patient comfort without compromising strength.
High-Quality Biocompatible Material
Manufactured using medical-grade titanium or stainless steel for excellent strength, corrosion resistance, and long-term safety.
Support for Early Mobilization
Stable fixation enables early wrist movement, helping reduce stiffness and promote faster functional recovery.
Key Indications of Distal Radius Plates
Fixation of Distal Radius Fractures
Used to stabilize simple and complex fractures of the distal radius, ensuring proper alignment and healing.
Management of Intra-Articular Fractures
Helps accurately reconstruct joint surfaces in fractures involving the wrist joint, reducing the risk of post-traumatic arthritis.
Treatment of Comminuted Fracture
Provides rigid support in multi-fragmented fractures where maintaining stability is challenging.
Osteoporotic Bone Fixation
Ideal for elderly patients, as the locking mechanism offers enhanced hold in weak or low-density bone.
Correction of Malunions
Used in revision procedures to realign improperly healed distal radius fractures and restore wrist function.
Support in High-Energy Trauma Cases
Ensures stable fixation in fractures caused by severe trauma, enabling early rehabilitation and improved functional outcomes.
frequently asked questions
What types of distal radius plates should a distributor stock for better sales?
A distributor should stock a complete range of distal radius plates, including volar locking plates, dorsal plates, T-plates, and variable angle plates. Different fracture patterns require different plate designs, so having multiple variants helps serve hospitals and surgeons better. Distal radius systems are designed to handle complex fractures and often include a full set of plates and instruments, making a diversified inventory more profitable.
What materials are preferred in distal radius plates for international markets?
Most global markets demand distal radius plates made from medical-grade titanium or stainless steel. Titanium is preferred for premium markets due to its lightweight and biocompatibility, while stainless steel is widely used because it is cost-effective and durable. The choice of material directly affects pricing, demand, and distributor margins in different regions.
What is included in a complete distal radius plating system?
A complete distal radius plating system typically includes multiple plate designs along with compatible screws and surgical instruments such as drills, clamps, and targeting devices. Providing a full system allows distributors to offer a complete solution to hospitals and surgeons, improving customer satisfaction and increasing order value.
How does locking plate technology improve fracture fixation outcomes?
Locking plate technology allows screws to lock into the plate, creating a fixed-angle construct that provides superior stability compared to conventional plates. This reduces dependence on bone quality and preserves blood supply, resulting in better healing outcomes and lower risk of implant failure.
Do manufacturers offer OEM or private labeling for distal radius plates?
Yes, many leading manufacturers provide OEM and private labeling services, allowing distributors to sell products under their own brand. This includes customized packaging, branding, and product specifications, helping distributors differentiate themselves in competitive markets.
What is the typical lead time for bulk orders of distal radius plates?
Lead time for bulk orders generally depends on order volume and customization requirements. Most manufacturers deliver within a few weeks after order confirmation, along with proper export packaging and documentation. Efficient logistics and supply chain management are critical for maintaining distributor operations.
What challenges do distributors face when sourcing distal radius implants?
Common challenges include inconsistent product quality, delays in delivery, lack of proper certifications, and pricing competition. Partnering with an experienced and certified manufacturer, like Siora Surgicals Pvt. Ltd., helps overcome these issues and ensures a reliable supply for long-term business growth.
How can distributors ensure consistent supply and quality of implants?
To maintain consistency, distributors should work with manufacturers that have advanced infrastructure, strict quality control systems, and a strong export network. Reliable suppliers ensure the uninterrupted availability of products and consistent performance across batches.
Why is India becoming a preferred sourcing destination for distal radius plates?
India has become a global hub for orthopedic implant manufacturing due to its ability to offer high-quality products at competitive prices. Manufacturers in India, such as Siora Surgicals Pvt. Ltd., follow international standards, provide OEM solutions, and have strong export capabilities, making them an attractive choice for global distributors.
Leave A Message
If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
