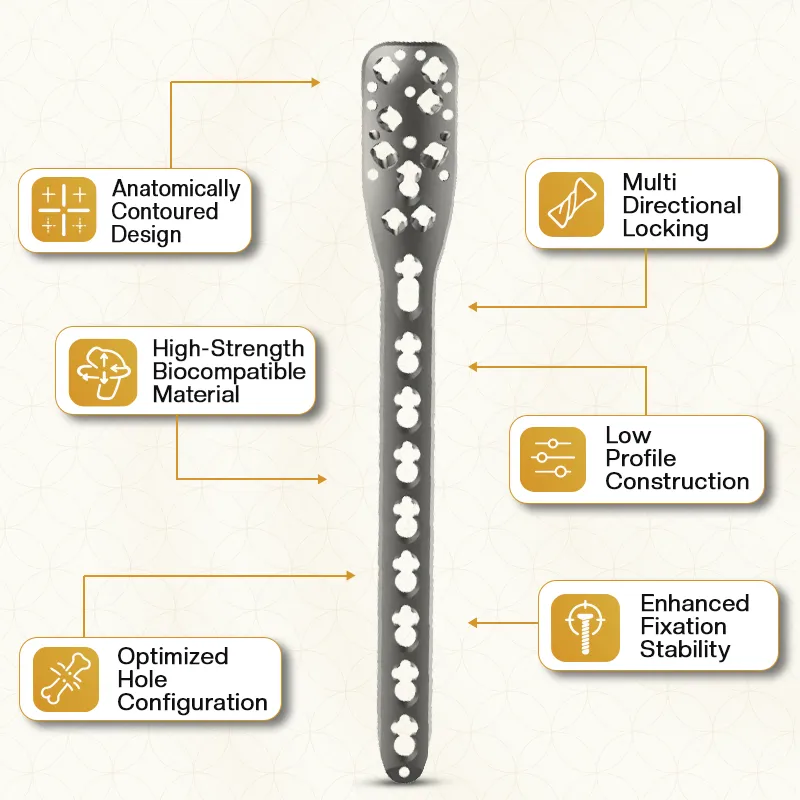

Designed to address complex proximal humerus fractures, the Locking Proximal Humeral Plate from Siora Surgicals Pvt. Ltd. combines anatomical precision with dependable fixation strength. The plate features pre-contoured geometry to closely match the humeral anatomy, minimizing the need for intraoperative bending. Multiple locking screw options in the humeral head region allow for stable angular fixation, especially in osteoporotic bone. Engineered using high-grade, biocompatible stainless steel and titanium, these proximal humeral locking plates ensure durability while supporting early mobilization. The low-profile design helps reduce soft tissue irritation, promoting patient comfort and improved recovery outcomes.
We also have locking distal humerus plates in our inventory.
We manufacture PHMA locking humerus plates in different sizes and structural configurations to address varied patterns of proximal humerus fractures and patient anatomies.

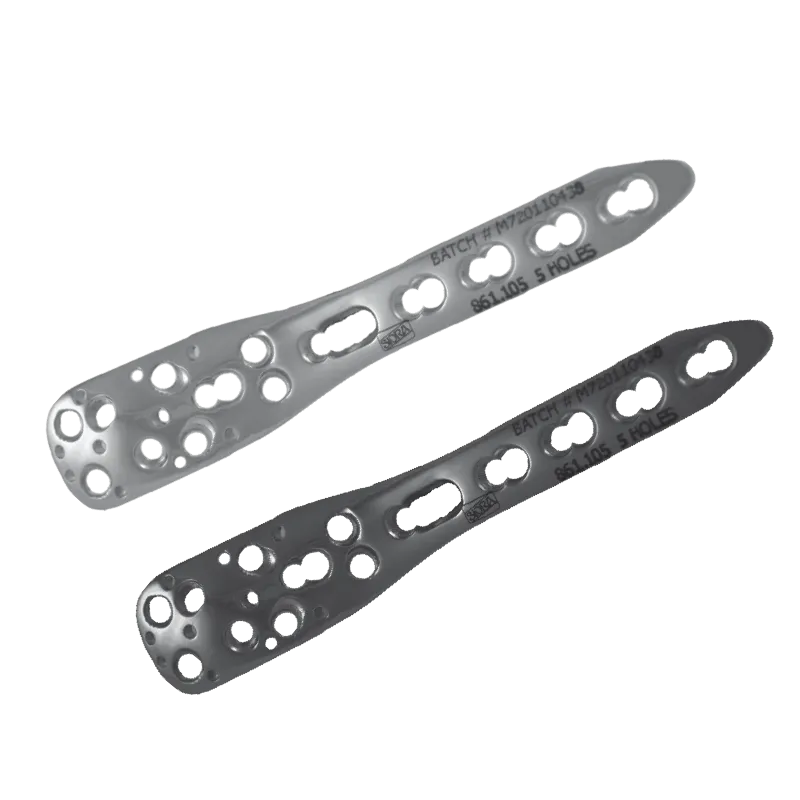

A compact solution for proximal humerus fractures, this short PHMA locking plate offers multi-angle screw placement for improved fixation in limited bone regions. Its anatomically contoured design supports a precise fit, making it suitable for less extensive fracture patterns.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 861.103 – 861.105 | 3 – 5 | Ti.861.103 – Ti.861.105 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

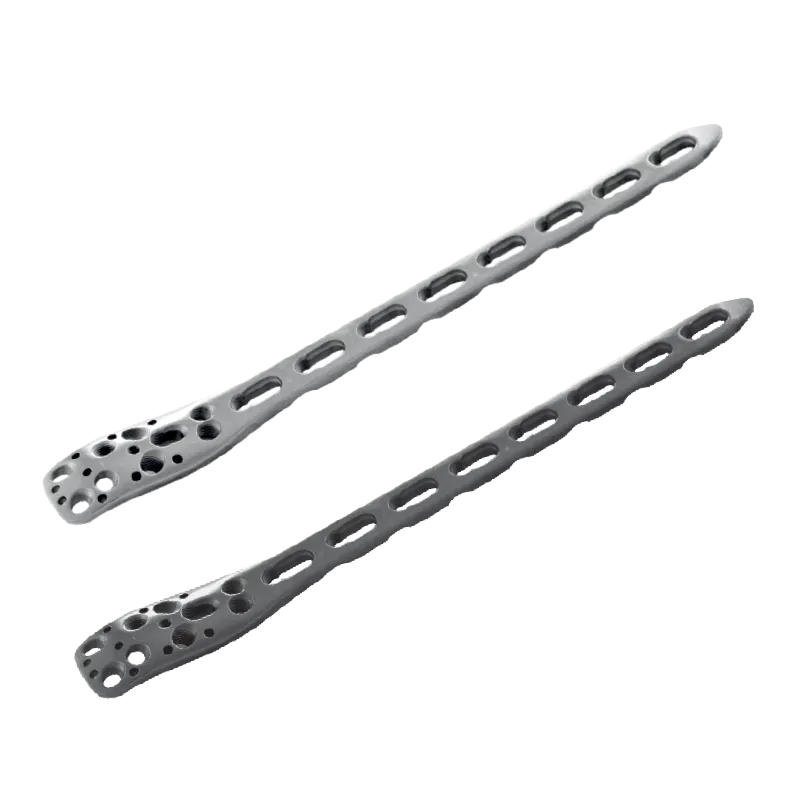

Designed for extended fracture coverage, the long PHMA plate provides multi-angle locking options for enhanced stability across complex fracture zones. Its elongated structure ensures better load distribution and reliable fixation in multi-fragmentary proximal humerus fractures.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 861.205 – 861.212 | 5 – 12 | Ti.861.205 – Ti.861.212 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

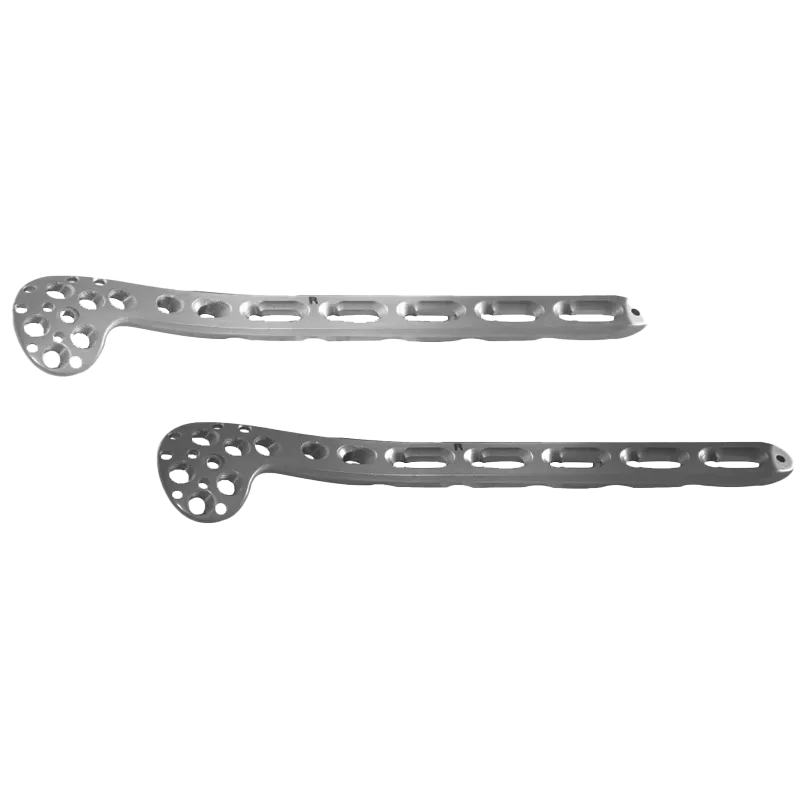

Specifically developed for periarticular fractures, this periarticular proximal humerus plate ensures stable fixation near the joint region. Its low-profile, anatomically contoured design supports precise placement, while multiple locking options provide secure anchorage in proximal humerus fracture management.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 869.003 – 869.009 | 3 – 9 (Left) | Ti.869.003 – Ti.869.009 |
| 869.103 – 869.109 | 3 – 9 (Right) | Ti.869.103 – Ti.869.109 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

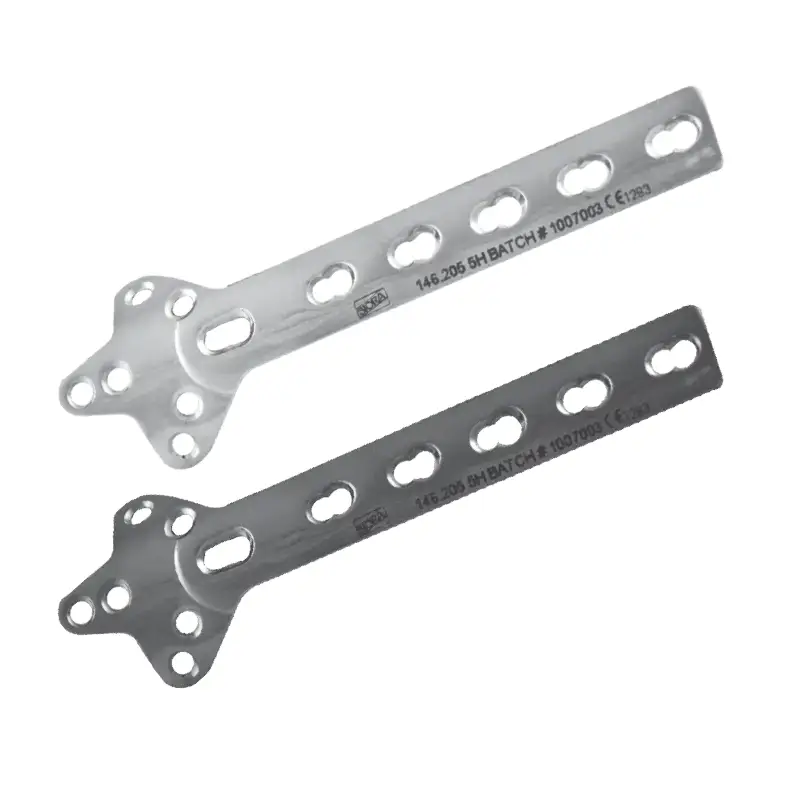

An anatomically contoured plate designed to address fractures near the joint surface, including proximal humerus & distal tibia fractures.
This Cloverleaf Plates are fixed by both Cortical 3.5mm and Cancellous Screws 4.0mm. The Cloverleaf Plates Indicated for Intra-Articular Fractures of the Distal Tibia and Proximal Humerus.
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
| 146.203 – 146.206 | 3 – 6 | Ti.146.203 – Ti.146.206 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

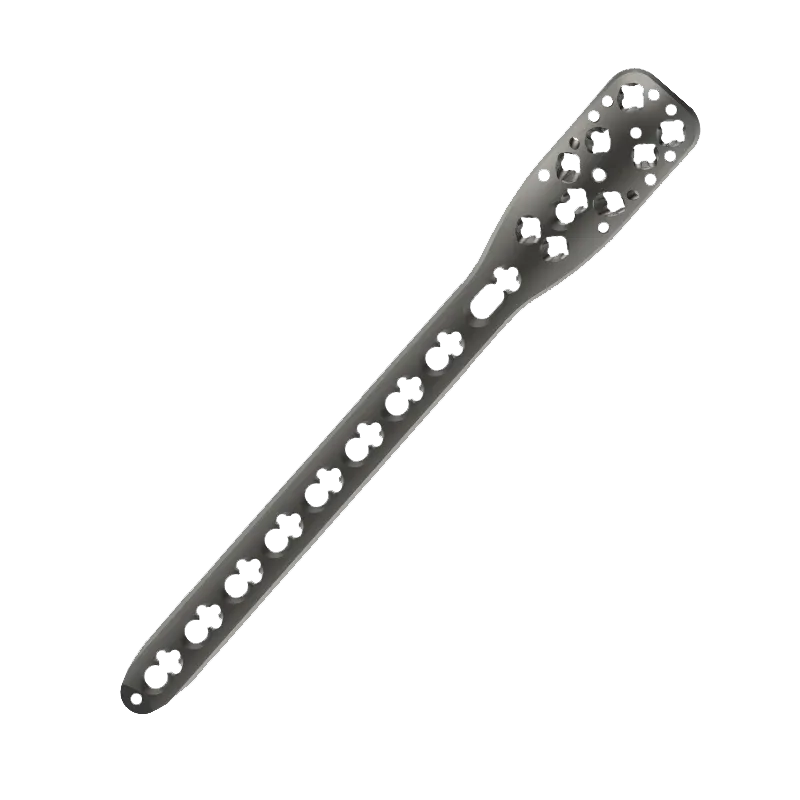

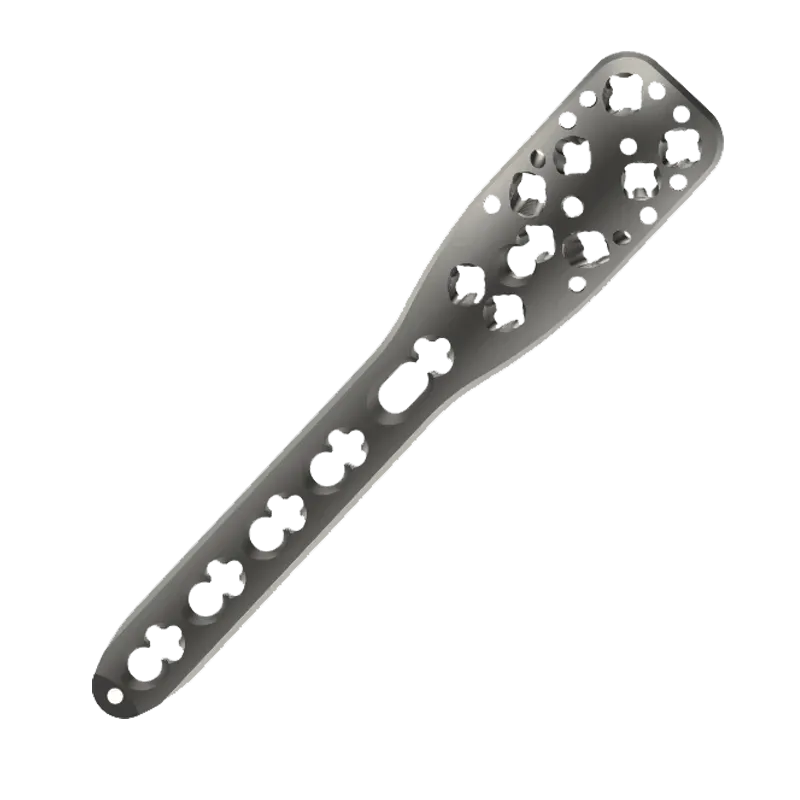

PHMA Locking Plate is intended for the treatment of proximal humerus fractures, offering multi-angle screw placement for better fixation. Designed with an anatomically contoured shape, it is available in short and long variations.
| Cat No. (Titanium) | Holes |
| Ti.846.102 – Ti.846.105 (Short) | 2 – 5 |
| Ti.846.205 – Ti.846.212 (Long) | 5 – 12 |
A) Variolock 3.5mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 10mm To 80mm | Ti.102.910 To Ti.102.980 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 10mm To 80mm | Ti.102.510 To Ti.102.580 |
B) 3.5mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 10mm To 80mm | Ti.102.310 To Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 10mm To 80mm | Ti.102.410 To Ti.102.480 |
C) Variolock 4.0mm Locking Head Cancellous Screw Full Thread - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 12mm To 80mm | Ti.105.912 To Ti.105.980 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 12mm To 80mm | Ti.105.412 To Ti.105.480 |
D) 4.0mm Locking Head Cancellous Screw Full Thread - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 12mm To 80mm | Ti.105.512 To Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 12mm To 80mm | Ti.105.612 To Ti.105.680 |
E) Cortical Screw 3.5mm Dia. - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 10mm To 60mm | Ti.102.210 To Ti.102.260 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| – | 10mm To 60mm | Ti.102.710 To Ti.102.760 |
| Cat No. | Descreption |
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M) |
| 260.250 | Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long |
| 263.025 | Bone Tap with T – Handle Dia. 3.5mm Thread Length 50mm, Total Length 125mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 263.037 | Bone Tap with T – Handle Dia. 4.0mm – Cancellous, Thread Length 50mm, Total Length 125mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Sillicon Handle |
| 301.126 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screw) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
| 804.114 | Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate |
| 804.128 | Conical Type Variable Angle Drill Sleeve 3.5/4.0mm |
Pre-shaped to match the natural anatomy of the proximal humerus, reducing the need for intraoperative bending and ensuring better implant fit.
Provides multiple locking screw trajectories in the humeral head for enhanced angular stability, especially in osteoporotic bone.
Designed with a slim profile to minimize soft tissue irritation and reduce the risk of postoperative discomfort.
Manufactured using medical-grade stainless steel or titanium to ensure durability, corrosion resistance, and patient safety.
Locking mechanism creates a fixed-angle construct, supporting reliable fracture stabilization and early mobilization.
Strategically placed holes allow for flexible screw placement, enabling surgeons to address varied fracture patterns effectively.
Indicated for stable fixation of displaced 2, 3, and 4 part fractures of the proximal humerus.
Suitable for fractures in patients with poor bone quality, where angular stability is critical.
Effective in managing complex fracture-dislocations requiring secure and precise fixation.
Designed to address multi-fragmentary fractures by providing stable support and alignment.
Can be used in revision surgeries to correct improperly healed or non-healed proximal humerus fractures.
Applicable for fractures involving the metaphyseal region, ensuring proper stabilization and healing alignment.
A proximal humeral plate is an orthopedic implant used for the fixation of proximal humerus fractures. It provides stable support using locking screw technology for better bone healing.
Yes, Siora Surgicals Pvt. Ltd. is a trusted proximal humeral plate manufacturer offering high-quality implants designed as per international standards.
We offer a complete proximal humerus plating system, including locking plates, interlocking plates, periarticular plates, and shaft plates for various fracture types.
Our implants are manufactured using medical-grade titanium and stainless steel, ensuring high strength, durability, and biocompatibility.
Yes, we provide OEM and private label manufacturing services, allowing customization in design, branding, and packaging as per client requirements.
Yes, we are a global supplier of proximal humerus plates and other small fragment locking plates, providing bulk supply to distributors, hospitals, and orthopedic businesses worldwide.
Yes, we support bulk and customized orders with flexible manufacturing options under OEM services.
Yes, we provide proximal humerus surgery plates along with compatible screws as part of a complete plating system.
Siora Surgicals is known for precision manufacturing, international certifications, a reliable supply chain, and strong OEM capabilities.
If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
