Distal Humerus Plates

Locking Distal Humerus Plate (DHLP) Lateral Side 2.7 / 3.5mm
Locking Distal Humerus Plate (DHLP) Lateral Side With Support 2.7/3.5mm
Locking Distal Humerus Plate (DHLP) Medial Side 2.7/3.5mm
Locking Extra – Articular Distal Humerus Plate 3.5/4.0 mm

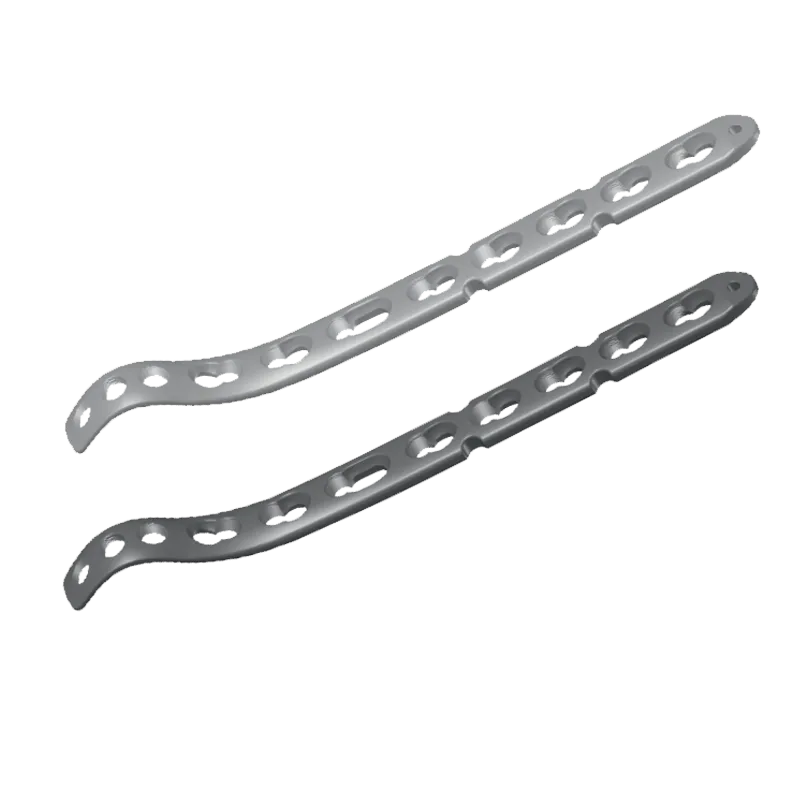

Locking Metaphyseal Distal Humerus Plate 3.5/4.0mm

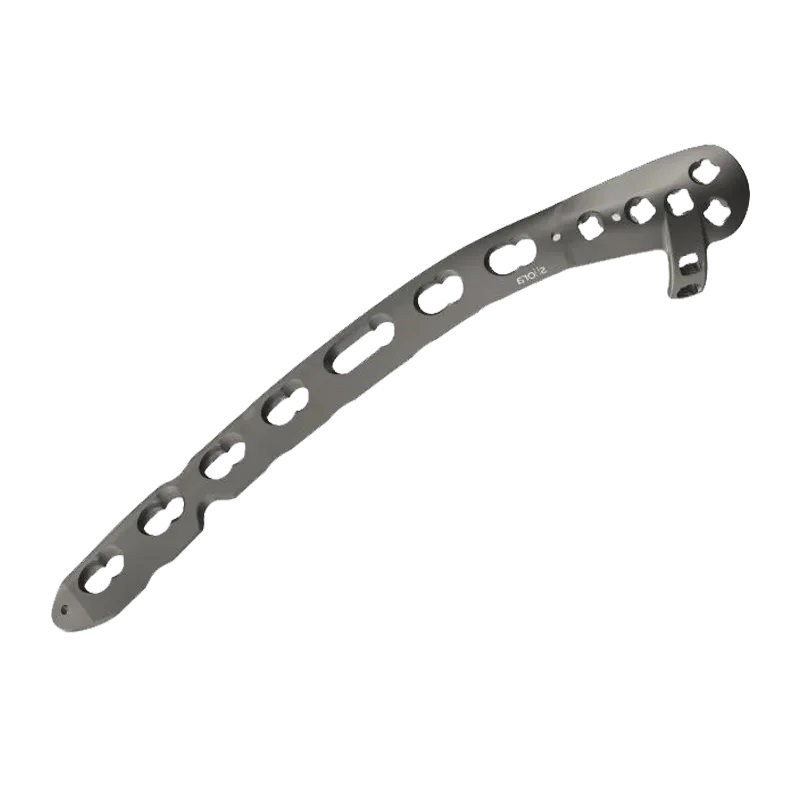

Locking Variable Angle Distal Humerus Plate with Lateral Extension 2.7/3.5mm

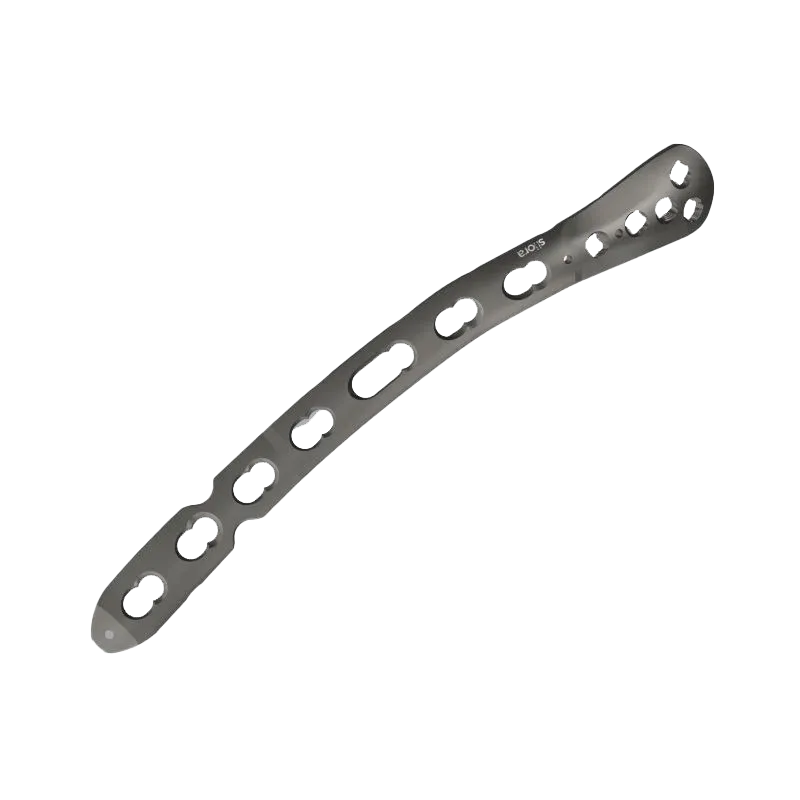

Locking Variable Angle Distal Humerus Posterolateral Plate 2.7/3.5mm

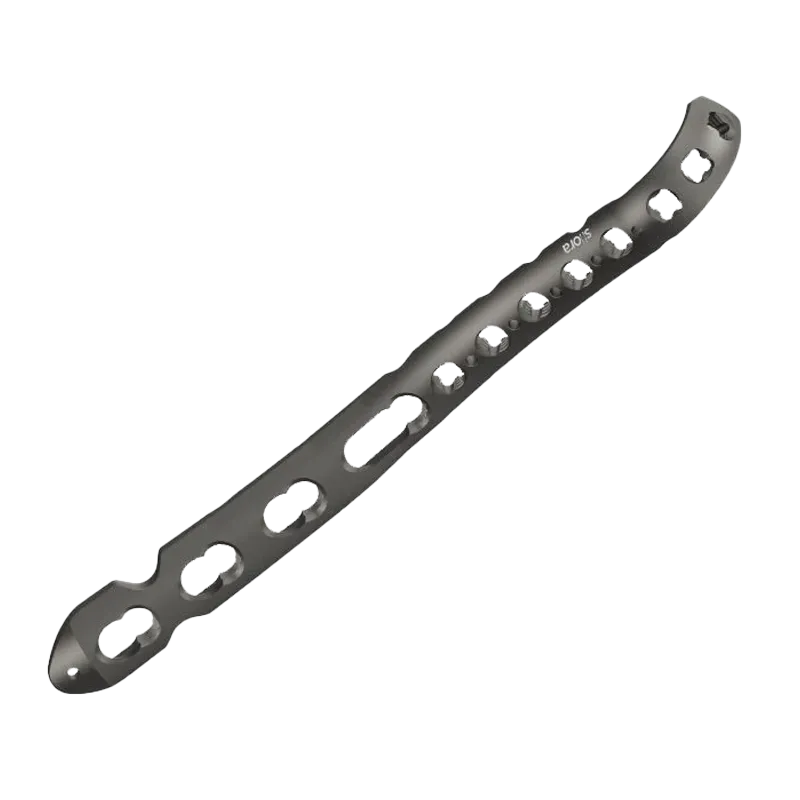

Locking Variable Angle Distal Humerus Medial Plate with Extension 2.7/3.5mm

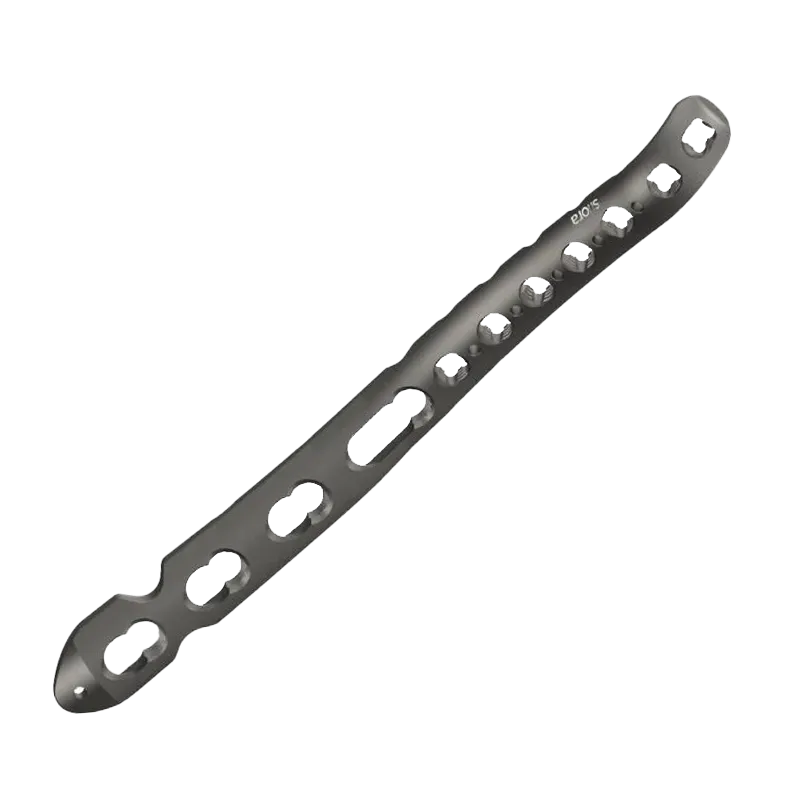

Locking Variable Angle Distal Humerus Medial Plate 2.7/3.5mm

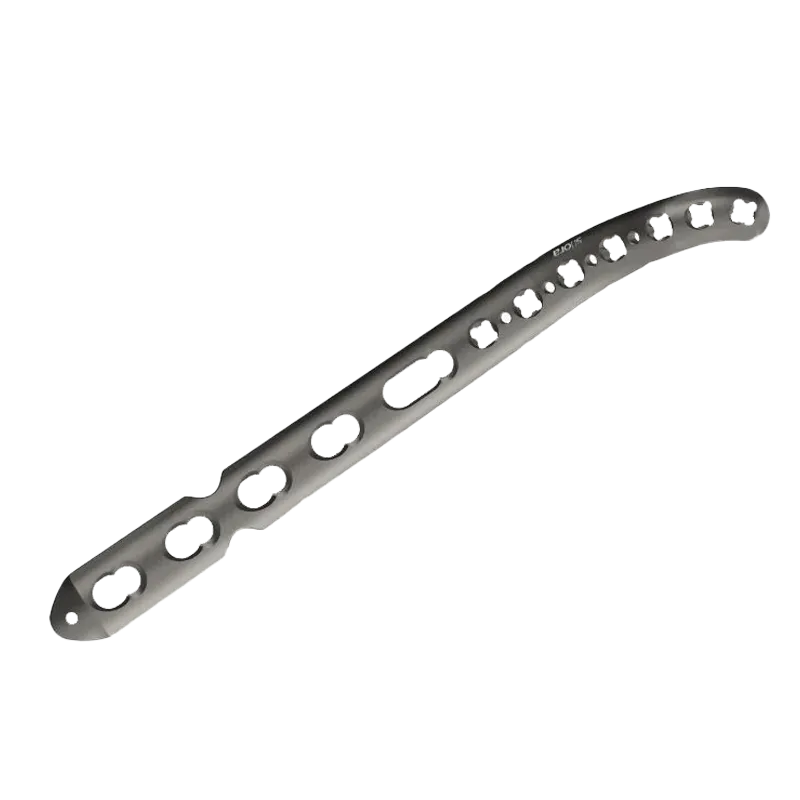

Locking Variable Angle Lateral Distal Humerus Plate 2.7/3.5mm
previous arrow
next arrow

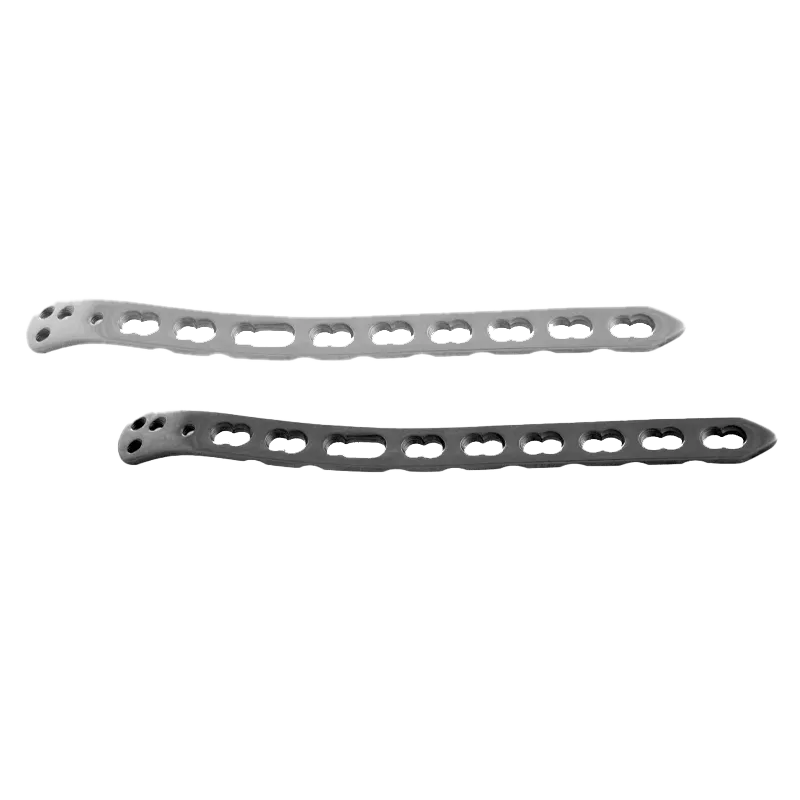

Locking Distal Humerus Plate (DHLP) Lateral Side 2.7 / 3.5mm
Locking Distal Humerus Plate (DHLP) Lateral Side 2.7/3.5mm
Locking Distal Humerus Plate (DHLP) Lateral Side 2.7/3.5mm
Product Overview:

Locking Distal Humerus Plates are designed to deliver stable fixation in complex distal humerus fractures, including intra-articular fractures, supracondylar fractures, and osteoporotic cases. Engineered with anatomically contoured profiles, these distal humerus plates ensure a precise fit while minimizing soft tissue irritation. The multidirectional locking hole configuration allows surgeons to achieve angular stability and improved screw purchase, even in compromised bone quality. Manufactured from medical-grade titanium and stainless steel, the plates offer high strength, corrosion resistance, and biocompatibility. Their low-profile design supports early mobilization and helps promote effective healing outcomes, making them a reliable choice for demanding orthopedic trauma procedures.

Available Types and Sizes of Our Locking Distal Humerus Fracture Plates

We offer an extensive range of distal humerus plates required to address specific fracture patterns and varying patient anatomies. Have a look at our humerus locking distal plate inventory:

helix logo
Locking Distal Humerus Plate (DHLP) Lateral Side 2.7/3.5mm

Locking Distal Humerus Plate (DHLP) Lateral Side 2.7 / 3.5mm

Designed for lateral column fixation, this plate offers an anatomical fit with 2.7/3.5mm locking options. It provides stable support for distal humerus fractures while preserving soft tissues and enabling precise screw placement.

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Stainless Steel)HolesCat No. (Titanium)
862.113 – 862.1193 – 9 (Left)Ti.862.113 – Ti.862.119
862.103 – 862.1093 – 9 (Right)Ti.862.103 – Ti.862.109

A) 3.5mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.310 to 102.38010mm to 80mmTi.102.310 to Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
102.410 to 102.48010mm to 80mmTi.102.410 to Ti.102.480

B) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.210 to 102.29610mm to 100mmTi.102.210 to Ti.102.300

C) 2.7mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
101.310 to 101.35010mm to 50mmTi.101.310 to Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
101.410 to 101.45010mm to 50mmTi.101.410 to Ti.101.450

D) Cortical Screw 2.7mm Dia. Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
101.106 to 101.1406mm to 40mmTi.101.106 to Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
101.710 to 101.74010mm to 40mmTi.101.710 to Ti.101.740
Cat No.Description
260.281Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121Tap for 3.5mm Locking Head Screws
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm
260.270Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.110Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.126Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle
301.125Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle
303.010Small Depth Gauge
XP.301.081Star Drive Screw Driver – 2.5mm Tip/T-15
260.210Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
264.020Bone Tap – Quick Coupling End Dia. 2.7mm, Thread Length 33mm, Total Length 100mm
301.124Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.4 mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.108Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
311.004Mini Depth Gauge (Measuring length 40mm)
804.120LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122Tap for 2.7mm Locking Head Screws
804.162Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm)
804.166Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm)
XP.301.080Star Drive Screw Driver 2mm Tip/T-8

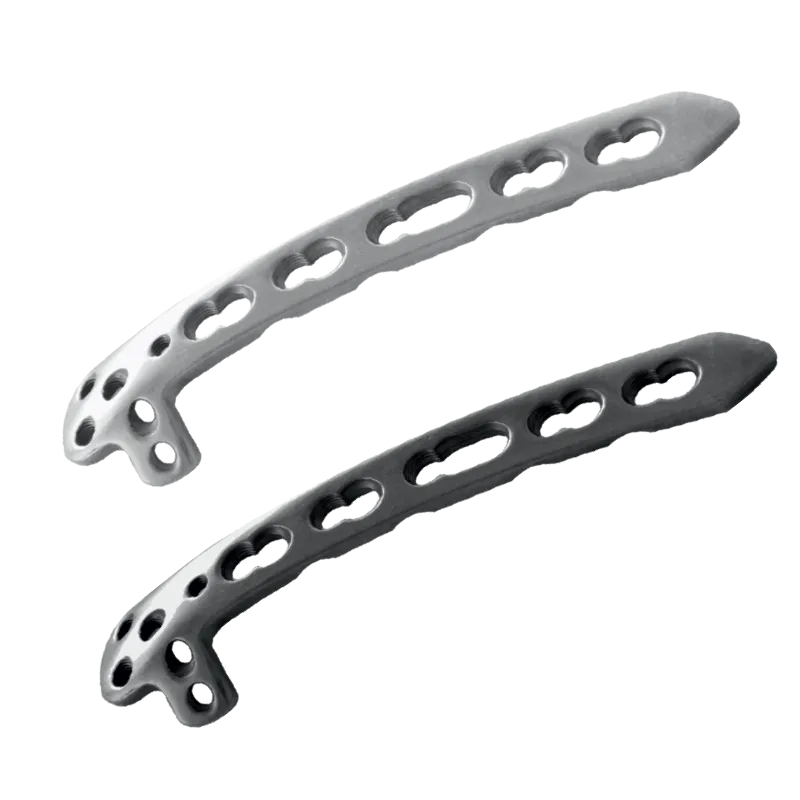

Locking Distal Humerus Plate (DHLP) Lateral Side With Support 2.7/3.5mm

Locking Distal Humerus Plate (DHLP) Lateral Side With Support 2.7 / 3.5mm

Featuring an extended support structure, this lateral distal humerus plate enhances fixation in comminuted fractures. Its design improves distal fragment capture and ensures better load distribution, especially in complex or osteoporotic bone conditions.

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Stainless Steel)HolesCat No. (Titanium)
862.213 – 862.2193 – 9 (Left)Ti.862.213 – Ti.862.219
862.203 – 862.2093 – 9 (Right)Ti.862.203 – Ti.862.209

A) 3.5mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.310 to 102.38010mm to 80mmTi.102.310 to Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
102.410 to 102.48010mm to 80mmTi.102.410 to Ti.102.480

B) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.210 to 102.29610mm to 100mmTi.102.210 to Ti.102.300

C) 2.7mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
101.310 to 101.35010mm to 50mmTi.101.310 to Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
101.410 to 101.45010mm to 50mmTi.101.410 to Ti.101.450

D) Cortical Screw 2.7mm Dia. Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
101.106 to 101.1406mm to 40mmTi.101.106 to Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
101.710 to 101.74010mm to 40mmTi.101.710 to Ti.101.740
Cat No.Description
260.281Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121Tap for 3.5mm Locking Head Screws
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm
260.270Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.110Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.126Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle
301.125Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle
303.010Small Depth Gauge
XP.301.081Star Drive Screw Driver – 2.5mm Tip/T-15
260.210Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
264.020Bone Tap – Quick Coupling End Dia. 2.7mm, Thread Length 33mm, Total Length 100mm
301.124Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.4 mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.108Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
311.004Mini Depth Gauge (Measuring length 40mm)
804.120LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122Tap for 2.7mm Locking Head Screws
804.162Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm)
804.166Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm)
XP.301.080Star Drive Screw Driver 2mm Tip/T-8

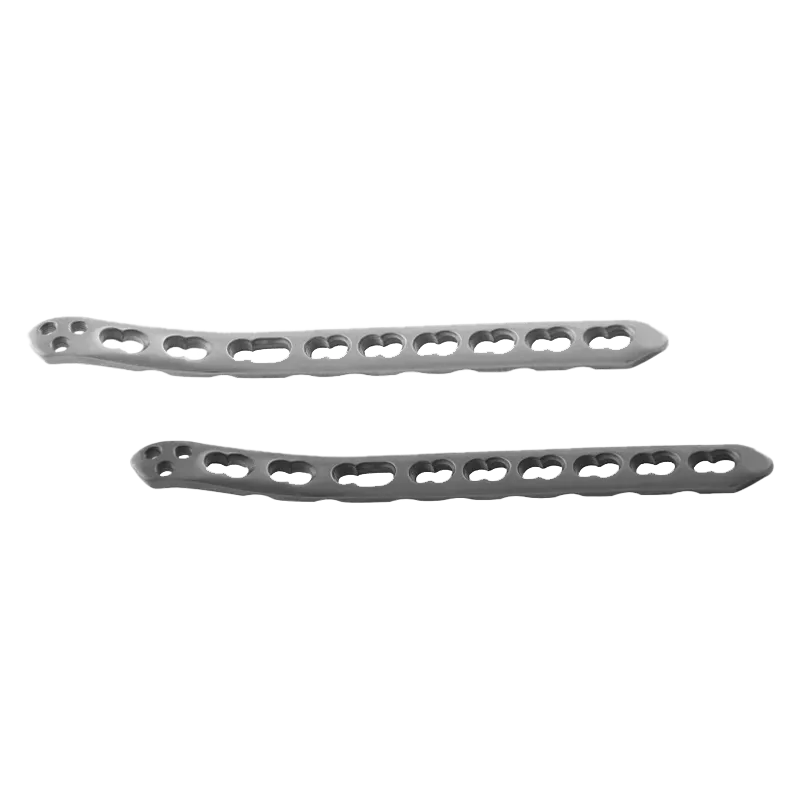

Locking Distal Humerus Plate (DHLP) Medial Side 2.7/3.5mm

Locking Distal Humerus Plate (DHLP) Medial Side 2.7 / 3.5mm

Engineered for medial column stabilization, this medial distal humerus plate ensures accurate contouring and reliable fixation. It supports intercondylar and supracondylar fractures with optimized screw angulation and strong locking capability.

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Stainless Steel)HolesCat No. (Titanium)
862.313 – 862.3193 – 9 (Left)Ti.862.313 – Ti.862.319
862.303 – 862.3093 – 9 (Right)Ti.862.303 – Ti.862.309

A) 3.5mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.310 to 102.38010mm to 80mmTi.102.310 to Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
102.410 to 102.48010mm to 80mmTi.102.410 to Ti.102.480

B) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.210 to 102.29610mm to 100mmTi.102.210 to Ti.102.300

C) 2.7mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
101.310 to 101.35010mm to 50mmTi.101.310 to Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
101.410 to 101.45010mm to 50mmTi.101.410 to Ti.101.450
Cat No.Description
260.281Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121Tap for 3.5mm Locking Head Screws
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm
260.270Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.110Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.126Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle
301.125Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle
303.010Small Depth Gauge
XP.301.081Star Drive Screw Driver – 2.5mm Tip/T-15
260.210Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
264.020Bone Tap – Quick Coupling End Dia. 2.7mm, Thread Length 33mm, Total Length 100mm
301.124Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.4 mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.108Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
311.004Mini Depth Gauge (Measuring length 40mm)
804.120LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122Tap for 2.7mm Locking Head Screws
804.162Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm)
804.166Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm)
XP.301.080Star Drive Screw Driver 2mm Tip/T-8

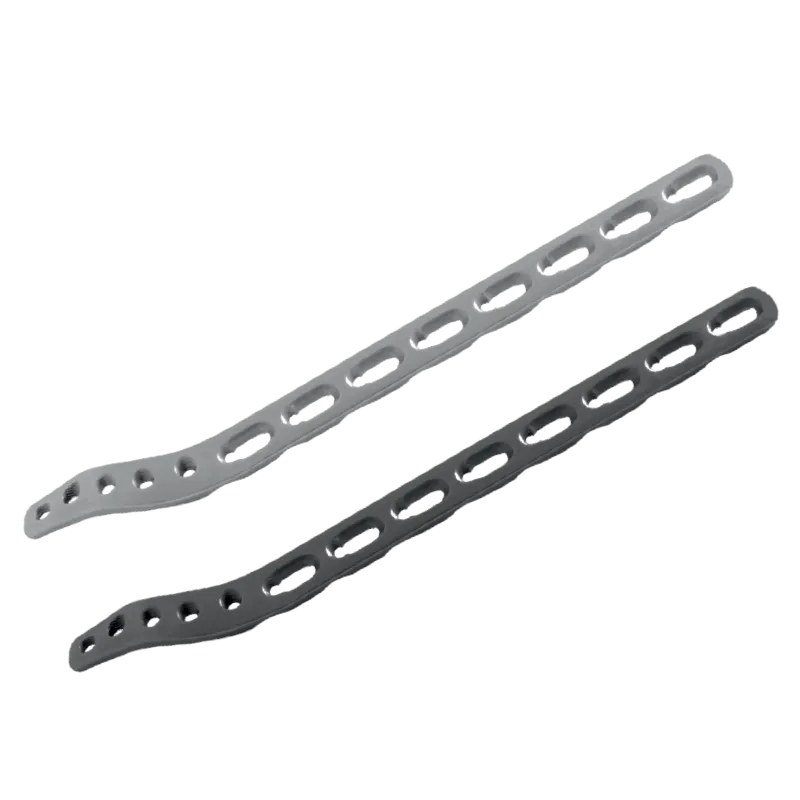

Locking Extra – Articular Distal Humerus Plate 3.5/4.0 mm

Locking Extra – Articular Distal Humerus Plate 3.5/4.0 mm

Specifically intended for extra-articular fractures, this plate delivers robust fixation using 3.5/4.0mm screws. Its contoured design maintains alignment while minimizing soft tissue disruption and promoting stable healing.

  • The 3.5mm Extra Articular Distal Humerus Plates are Indicated for Fractures of the Distal Humerus, Comminuted Supra Condyler Fractures, Osteotomies, and Nonunious of the Distal Humerus.

  • Indications:
    • Extra – Articular Fractures of Distal Humerus.
    • Malunions of the Distal Humerus.
    • Nonunions of the Distal Humerus.
Cat No. (Stainless Steel)HolesCat No. (Titanium)
862.413 – 862.4223 – 12 (Left)Ti.862.413 – Ti.862.422
862.403 – 862.4123 – 12 (Right)Ti.862.403 – Ti.862.412

A) 3.5mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.310 to 102.38010mm to 80mmTi.102.310 to Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
102.410 to 102.48010mm to 80mmTi.102.410 to Ti.102.480

B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
105.512 to 105.58012mm to 80mmTi.105.512 to Ti.105.580
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
105.612 to 105.68012mm to 80mmTi.105.612 to Ti.105.680

C) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.210 to 102.29610mm to 100mmTi.102.210 to Ti.102.300

D) Cancellous Screw 4.0mm Dia. Short Thread

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
104.010 to 104.08510mm to 85mmTi.104.010 to Ti.104.085

E) Cancellous Screw 4.0mm Dia. Full Thread

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
105.010 to 105.08510mm to 85mmTi.105.010 to Ti.105.085
Cat No.Description
260.281Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121Tap for 3.5mm Locking Head Screws
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm
260.270Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.110Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.126Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle
301.125Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle
303.010Small Depth Gauge
XP.301.081Star Drive Screw Driver – 2.5mm Tip/T-15
Locking Metaphyseal Distal Humerus Plate 3.5/4.0mm

Locking Metaphyseal Distal Humerus Plate 3.5/4.0mm

Ideal for metaphyseal fractures, this plate offers enhanced fixation in transitional bone zones. The design ensures stable anchorage with improved load sharing, supporting effective fracture stabilization and recovery.

  • Indications: Juxta – Articular Distal Humerus Fractures.
Cat No. (Stainless Steel)HolesCat No. (Titanium)
892.004 – 892.0104 – 10Ti.892.004 – Ti.892.010

A) 3.5mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.310 to 102.38010mm to 80mmTi.102.310 to Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
102.410 to 102.48010mm to 80mmTi.102.410 to Ti.102.480

B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
105.512 to 105.58012mm to 80mmTi.105.512 to Ti.105.580
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
105.612 to 105.68012mm to 80mmTi.105.612 to Ti.105.680

C) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
102.210 to 102.29610mm to 100mmTi.102.210 to Ti.102.300

D) Cancellous Screw 4.0mm Dia. Short Thread

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
104.010 to 104.08510mm to 85mmTi.104.010 to Ti.104.085

E) Cancellous Screw 4.0mm Dia. Full Thread

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
105.010 to 105.08510mm to 85mmTi.105.010 to Ti.105.085
Cat No.Description
260.281Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121Tap for 3.5mm Locking Head Screws
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm
260.270Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.110Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.126Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle
301.125Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle
303.010Small Depth Gauge
XP.301.081Star Drive Screw Driver – 2.5mm Tip/T-15
VARILOCK logo
Locking Variable Angle Distal Humerus Plate with Lateral Extension 2.7/3.5mm

Locking Variable Angle Distal Humerus Plate with Lateral Extension 2.7/3.5mm

This plate combines variable angle locking with lateral extension for improved distal fixation. It allows flexible screw positioning, aiding in the management of complex fracture patterns and small fragment stabilization.

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Left)HolesCat No. (Right)
Ti.835.003 – Ti.835.0113 – 11Ti.835.103 – Ti.835.111

A) Variolock 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.910 To Ti.101.940
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTi.100.710 To Ti.100.740

B) 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTI.101.310 To Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTi.101.410 To Ti.101.450

C) Cortical Screw 2.7mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–6mm To 40mmTi.101.106 To Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.710 To Ti.101.740

D) Variolock 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.910 To Ti.102.980
Stainless SteelStar  DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.510 To Ti.102.580

E) 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.310 To Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.410 To Ti.102.480

F) Cortical Screw 3.5mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.210 To Ti.102.260
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.710 To Ti.102.760
Cat No. Descreption
260.281 Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated
804.110 LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121 Tap for 3.5mm Locking Head Screws
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168 Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M)
260.250 Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long
263.025 Bone Tap with T – Handle Dia. 3.5mm Thread Length 50mm, Total Length 125mm
301.110 Small Hexagonal Screw Driver 2.5mm Tip – Sillicon Handle
301.124 Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.0mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.125 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical, & 4.0mm Locking Head Screws) – Silicon Handle
301.126 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) – Silicon Handle
303.010 Small Depth Gauge (Measurging Upto 80mm)
XP.301.081 Star Drive Screw Driver – 2.5mm Tip/T-15
804.114 Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate
260.210 Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
260.215 Drill Bit – S.S.Quick Coupling End Dia. 2.2mm x 150mm Long – Calibrated
263.020 Bone Tap with T – Handle Dia. 2.7mm Thread Length 33mm, Total Length 125mm
301.108 Hexagonal Screw Driver  2.0mm Tip – Sillicon Handle
311.004 Mini Depth Gauge(Measuring length 40mm)
804.120 LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122 Tap for 2.7mm Locking Head Screws
804.124 Variable Angle Drill Sleeve 2.7mm
804.127 Conical Type Variable Angle Drill Sleeve 2.7mm
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.166 Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M)
XP.301.080 Star Drive Screw Driver 2mm Tip/T-8
Locking Variable Angle Distal Humerus Posterolateral Plate 2.7/3.5mm

Locking Variable Angle Distal Humerus Posterolateral Plate 2.7/3.5mm

Designed for posterolateral application, this distal humerus plate supports challenging fracture configurations. Variable angle locking holes enable targeted screw placement, enhancing fixation in difficult-to-reach anatomical regions.

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Left)HolesCat No. (Right)
Ti.836.003 – Ti.836.0113 – 11Ti.836.103 – Ti.836.111

A) Variolock 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.910 To Ti.101.940
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTi.100.710 To Ti.100.740

B) 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTI.101.310 To Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTi.101.410 To Ti.101.450

C) Cortical Screw 2.7mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–6mm To 40mmTi.101.106 To Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.710 To Ti.101.740

D) Variolock 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.910 To Ti.102.980
Stainless SteelStar  DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.510 To Ti.102.580

E) 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.310 To Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.410 To Ti.102.480

F) Cortical Screw 3.5mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.210 To Ti.102.260
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.710 To Ti.102.760
Cat No.Descreption
260.281Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated
804.110LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121Tap for 3.5mm Locking Head Screws
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M)
260.250Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long
263.025Bone Tap with T – Handle Dia. 3.5mm Thread Length 50mm, Total Length 125mm
301.110Small Hexagonal Screw Driver 2.5mm Tip – Sillicon Handle
301.124Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.0mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.125Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical, & 4.0mm Locking Head Screws) – Silicon Handle
301.126Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) – Silicon Handle
303.010Small Depth Gauge (Measurging Upto 80mm)
XP.301.081Star Drive Screw Driver – 2.5mm Tip/T-15
804.114Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate
260.210Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
260.215Drill Bit – S.S.Quick Coupling End Dia. 2.2mm x 150mm Long – Calibrated
263.020Bone Tap with T – Handle Dia. 2.7mm Thread Length 33mm, Total Length 125mm
301.108Hexagonal Screw Driver  2.0mm Tip – Sillicon Handle
311.004Mini Depth Gauge(Measuring length 40mm)
804.120LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122Tap for 2.7mm Locking Head Screws
804.124Variable Angle Drill Sleeve 2.7mm
804.127Conical Type Variable Angle Drill Sleeve 2.7mm
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.166Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M)
XP.301.080Star Drive Screw Driver 2mm Tip/T-8
Locking Variable Angle Distal Humerus Medial Plate with Extension 2.7/3.5mm

Locking Variable Angle Distal Humerus Medial Plate with Extension 2.7/3.5mm

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Left)HolesCat No. (Right)
Ti.837.001 – Ti.837.0081 – 8Ti.837.101 – Ti.837.108

A) Variolock 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.910 To Ti.101.940
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTi.100.710 To Ti.100.740

B) 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTI.101.310 To Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTi.101.410 To Ti.101.450

C) Cortical Screw 2.7mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–6mm To 40mmTi.101.106 To Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.710 To Ti.101.740

D) Variolock 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.910 To Ti.102.980
Stainless SteelStar  DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.510 To Ti.102.580

E) 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.310 To Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.410 To Ti.102.480

F) Cortical Screw 3.5mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.210 To Ti.102.260
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.710 To Ti.102.760
Cat No. Descreption
260.281 Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated
804.110 LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121 Tap for 3.5mm Locking Head Screws
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168 Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M)
260.250 Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long
263.025 Bone Tap with T – Handle Dia. 3.5mm Thread Length 50mm, Total Length 125mm
301.110 Small Hexagonal Screw Driver 2.5mm Tip – Sillicon Handle
301.124 Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.0mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.125 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical, & 4.0mm Locking Head Screws) – Silicon Handle
301.126 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) – Silicon Handle
303.010 Small Depth Gauge (Measurging Upto 80mm)
XP.301.081 Star Drive Screw Driver – 2.5mm Tip/T-15
804.114 Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate
260.210 Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
260.215 Drill Bit – S.S.Quick Coupling End Dia. 2.2mm x 150mm Long – Calibrated
263.020 Bone Tap with T – Handle Dia. 2.7mm Thread Length 33mm, Total Length 125mm
301.108 Hexagonal Screw Driver  2.0mm Tip – Sillicon Handle
311.004 Mini Depth Gauge(Measuring length 40mm)
804.120 LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122 Tap for 2.7mm Locking Head Screws
804.124 Variable Angle Drill Sleeve 2.7mm
804.127 Conical Type Variable Angle Drill Sleeve 2.7mm
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.166 Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M)
XP.301.080 Star Drive Screw Driver 2mm Tip/T-8
Locking Variable Angle Distal Humerus Medial Plate 2.7/3.5mm

Locking Variable Angle Distal Humerus Medial Plate 2.7/3.5mm

Offering medial column support, this plate features variable angle locking for precise screw orientation. It is suitable for managing intra-articular and comminuted fractures with enhanced stability.

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Left)HolesCat No. (Right)
Ti.838.001 – Ti.838.0081 – 8Ti.838.101 – Ti.838.108

A) Variolock 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.910 To Ti.101.940
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTi.100.710 To Ti.100.740

B) 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTI.101.310 To Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTi.101.410 To Ti.101.450

C) Cortical Screw 2.7mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–6mm To 40mmTi.101.106 To Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.710 To Ti.101.740

D) Variolock 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.910 To Ti.102.980
Stainless SteelStar  DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.510 To Ti.102.580

E) 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.310 To Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.410 To Ti.102.480

F) Cortical Screw 3.5mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.210 To Ti.102.260
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.710 To Ti.102.760
Cat No.Descreption
260.281Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated
804.110LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121Tap for 3.5mm Locking Head Screws
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M)
260.250Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long
263.025Bone Tap with T – Handle Dia. 3.5mm Thread Length 50mm, Total Length 125mm
301.110Small Hexagonal Screw Driver 2.5mm Tip – Sillicon Handle
301.124Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.0mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.125Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical, & 4.0mm Locking Head Screws) – Silicon Handle
301.126Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) – Silicon Handle
303.010Small Depth Gauge (Measurging Upto 80mm)
XP.301.081Star Drive Screw Driver – 2.5mm Tip/T-15
804.114Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate
260.210Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
260.215Drill Bit – S.S.Quick Coupling End Dia. 2.2mm x 150mm Long – Calibrated
263.020Bone Tap with T – Handle Dia. 2.7mm Thread Length 33mm, Total Length 125mm
301.108Hexagonal Screw Driver  2.0mm Tip – Sillicon Handle
311.004Mini Depth Gauge(Measuring length 40mm)
804.120LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122Tap for 2.7mm Locking Head Screws
804.124Variable Angle Drill Sleeve 2.7mm
804.127Conical Type Variable Angle Drill Sleeve 2.7mm
804.163Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.166Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M)
XP.301.080Star Drive Screw Driver 2mm Tip/T-8
Locking Variable Angle Lateral Distal Humerus Plate 2.7/3.5mm

Locking Variable Angle Lateral Distal Humerus Plate 2.7/3.5mm

Crafted for lateral application, this plate provides flexible fixation through variable angle locking holes. It ensures secure fragment capture and supports optimal alignment in complex distal humerus fractures.

  • Indications:
    • Intra – Articular Fractures of the Distal Humerus.
    • Comminuted Supracondylar Fractures of the Distal Humerus.
    • Osteotomies of the Distal Humerus.
    • Nonunions of the Distal Humerus.
  • (Two Plate Technique for the Distal Humerus).
Cat No. (Left)HolesCat No. (Right)
Ti.839.001 – Ti.839.0111 – 11Ti.839.101 – Ti.839.111

A) Variolock 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.910 To Ti.101.940
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTi.100.710 To Ti.100.740

B) 2.7mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTI.101.310 To Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 50mmTi.101.410 To Ti.101.450

C) Cortical Screw 2.7mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–6mm To 40mmTi.101.106 To Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 40mmTI.101.710 To Ti.101.740

D) Variolock 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.910 To Ti.102.980
Stainless SteelStar  DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.510 To Ti.102.580

E) 3.5mm Locking Head Screw - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.310 To Ti.102.380
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 80mmTi.102.410 To Ti.102.480

F) Cortical Screw 3.5mm Dia. - Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.210 To Ti.102.260
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
–10mm To 60mmTi.102.710 To Ti.102.760
Cat No. Descreption
260.281 Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated
804.110 LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121 Tap for 3.5mm Locking Head Screws
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168 Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M)
260.250 Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long
263.025 Bone Tap with T – Handle Dia. 3.5mm Thread Length 50mm, Total Length 125mm
301.110 Small Hexagonal Screw Driver 2.5mm Tip – Sillicon Handle
301.124 Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.0mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.125 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical, & 4.0mm Locking Head Screws) – Silicon Handle
301.126 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) – Silicon Handle
303.010 Small Depth Gauge (Measurging Upto 80mm)
XP.301.081 Star Drive Screw Driver – 2.5mm Tip/T-15
804.114 Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate
260.210 Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
260.215 Drill Bit – S.S.Quick Coupling End Dia. 2.2mm x 150mm Long – Calibrated
263.020 Bone Tap with T – Handle Dia. 2.7mm Thread Length 33mm, Total Length 125mm
301.108 Hexagonal Screw Driver  2.0mm Tip – Sillicon Handle
311.004 Mini Depth Gauge(Measuring length 40mm)
804.120 LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122 Tap for 2.7mm Locking Head Screws
804.124 Variable Angle Drill Sleeve 2.7mm
804.127 Conical Type Variable Angle Drill Sleeve 2.7mm
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.166 Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M)
XP.301.080 Star Drive Screw Driver 2mm Tip/T-8

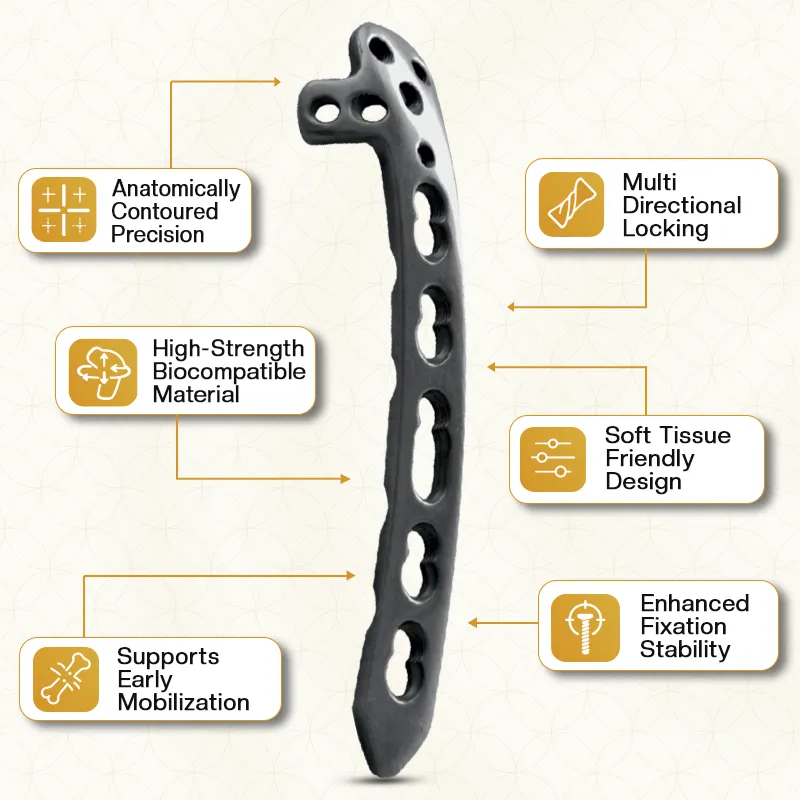

Key Features of Distal Humerus Plates

Anatomically Contoured Precision

Pre-shaped to match the distal humerus anatomy, these humerus plates ensure a close fit that reduces intraoperative bending and supports accurate fracture alignment.

Threaded locking holes enable fixed-angle construct stability, helping maintain reduction even in comminuted or osteoporotic bone.

Strategically designed hole patterns allow flexible screw angulation, giving surgeons better control in capturing small distal fragments.

Slim plate geometry minimizes soft tissue irritation and reduces the risk of postoperative discomfort.

Manufactured from medical-grade titanium or stainless steel for durability, corrosion resistance, and excellent biological compatibility.

Stable fixation promotes early joint movement, which can aid in reducing stiffness and improving functional recovery.

Key Features of Proximal Humerus Fracture Plates
Key Indications of Distal Humerus Fracture Plates

Key Indications of Distal Humerus Fracture Plates

Intra-Articular Distal Humerus Fractures

Ideal for complex fractures involving the joint surface, enabling stable fixation and precise articular reconstruction.

Designed to manage multi-fragmentary fracture patterns by providing strong angular stability and fragment support.

Effective in low bone density cases, where locking technology ensures improved screw hold and construct stability.

Facilitates accurate reduction and fixation of fractures extending between the medial and lateral condyles.

Useful in revision procedures to achieve rigid fixation and promote healing in previously unhealed fractures.

Compatible with parallel or orthogonal plating approaches for enhanced stability in highly unstable fracture patterns.

frequently asked questions

Who is a reliable distal humerus plate manufacturer for bulk and OEM supply?

A reliable distal humerus plate manufacturer is one that can consistently deliver high-quality implants, maintain international certifications, and support long-term distribution partnerships. Companies like Siora Surgicals Pvt. Ltd. are preferred by global distributors because they combine precision manufacturing with scalable production capacity, OEM/private labeling options, and strong export support. For distributors, choosing a dependable manufacturer directly impacts product quality, surgeon trust, and repeat business in their region.

Distributors should carefully assess multiple factors before finalizing a supplier, including regulatory certifications such as ISO 13485 and CE marking, the material quality of implants, and the completeness of the product range. It is also important to evaluate the supplier’s manufacturing consistency, packaging standards, sterilization processes, and export experience. A supplier that offers flexible MOQ, technical support, and timely delivery ensures smoother market entry and better long-term profitability for distributors.

Yes, most established manufacturers, like Siora, offer customization options that allow distributors to tailor products according to their target markets. This includes OEM branding, customized packaging, and even modifications aligned with local regulatory requirements. Such flexibility helps distributors build their own brand identity while maintaining product quality, making it easier to compete in both emerging and established orthopedic implant markets.

Distal humerus plates are typically manufactured using medical-grade stainless steel or titanium alloys. Stainless steel implants are widely used due to their cost-effectiveness and strength, making them suitable for price-sensitive markets. Titanium plates, on the other hand, are lightweight, highly biocompatible, and preferred in premium segments. Distributors often stock both options to cater to different hospital requirements and maximize their market reach.

The demand is generally highest for anatomically contoured locking plates that offer better fixation and ease of surgical application. Among these, posterolateral, medial, and lateral distal humerus plates are commonly required to address different fracture patterns. Distributors who maintain a complete portfolio of these variants are better positioned to meet surgeon needs and increase their order value per client.

The delivery timeline for bulk orders depends on production capacity, order volume, and shipping destination. In most cases, manufacturing takes a few weeks, followed by international shipping that may vary based on logistics and customs clearance. A manufacturer with efficient production planning and export experience can significantly reduce lead times, which is crucial for distributors who need consistent stock availability.

Locking distal humerus plates and even proximal humerus plates are increasingly preferred because they provide enhanced stability, especially in complex or osteoporotic fractures. The locking mechanism allows screws to fix securely into the plate, reducing the chances of implant failure and improving surgical outcomes. This clinical advantage drives higher demand, making locking plates a more profitable and fast-moving product for distributors.

Indian orthopedic implant manufacturers have gained global recognition due to their ability to offer high-quality products at competitive prices. With advanced manufacturing facilities, adherence to international standards, and strong export networks, companies like Siora Surgicals Pvt. Ltd. provide an ideal balance of cost and quality, making them a preferred choice for distributors worldwide.

Distributors can directly reach out to manufacturers through their official website or sales channels to discuss bulk pricing, OEM options, and partnership opportunities. Sharing details about target markets, expected order volumes, and regulatory requirements helps in establishing a structured and mutually beneficial business relationship.

Leave A Message

If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.

WhatsApp
