Description
Following Screws are to be use with above Plates:
A) 3.5mm Locking Head Screw – Self Tapping
Stainless Steel |
Hex Drive |
Titanium |
Cat No. |
Size |
Cat No. |
102.310 To 102.380 |
10mm To 80mm |
Ti.102.310 To Ti.102.380 |
Stainless Steel |
Star Drive |
Titanium |
Cat No. |
Size |
Cat No. |
102.410 To 102.480 |
10mm To 80mm |
Ti.102.410 To Ti.102.480 |
B) Cortical Screw 3.5mm Dia. – Self Tapping
Stainless Steel |
Hex Drive |
Titanium |
Cat No. |
Size |
Cat No. |
102.210 To 102.296 |
10mm To 100mm |
Ti.102.210 To Ti.102.300 |
Stainless Steel |
Star Drive |
Titanium |
Cat No. |
Size |
Cat No. |
102.710 To 102.760 |
10mm To 60mm |
Ti.102.710 To Ti.102.760 |
C) 2.7mm Locking Head Screw – Self Tapping
Stainless Steel |
Hex Drive |
Titanium |
Cat No. |
Size |
Cat No. |
101.310 To 101.350 |
10mm To 50mm |
TI.101.310 To Ti.101.350 |
Stainless Steel |
Star Drive |
Titanium |
Cat No. |
Size |
Cat No. |
101.410 To 101.450 |
10mm To 50mm |
Ti.101.410 To Ti.101.450 |
D) Cortical Screw 2.7mm Dia. – Self Tapping
Stainless Steel |
Hex Drive |
Titanium |
Cat No. |
Size |
Cat No. |
101.106 To 101.140 |
6mm To 40mm |
Ti.101.106 To Ti.101.140 |
Stainless Steel |
Star Drive |
Titanium |
Cat No. |
Size |
Cat No. |
101.710 To 101.740 |
10mm To 40mm |
TI.101.710 To Ti.101.740 |
Following Instruments to be use with above Plate:
Cat No. |
Description |
260.281 |
Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated |
804.110 |
LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
804.121 |
Tap for 3.5mm Locking Head Screws |
804.163 |
Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
804.168 |
Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M) |
260.250 |
Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long |
264.025 |
Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
301.040 |
Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
301.026 |
Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) |
301.025 |
Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screw) |
303.010 |
Small Depth Gauge |
XP.301.081 |
Star Drive Screw Driver – 2.5mm Tip/T-15 |
260.210 |
Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
264.020 |
Bone Tap – Quick Coupling End Dia. 2.7mm, Thread Length 33mm, Total Length 100mm |
301.024 |
Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head Screw) |
301.031 |
Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
301.040 |
Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
311.004 |
Mini Depth Gauge(Measuring length 40mm) |
804.120 |
LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
804.122 |
Tap for 2.7mm Locking Head Screws |
804.162 |
Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8N.m) |
804.166 |
Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M) |
XP.301.080 |
Star Drive Screw Driver 2mm Tip/T-8 |

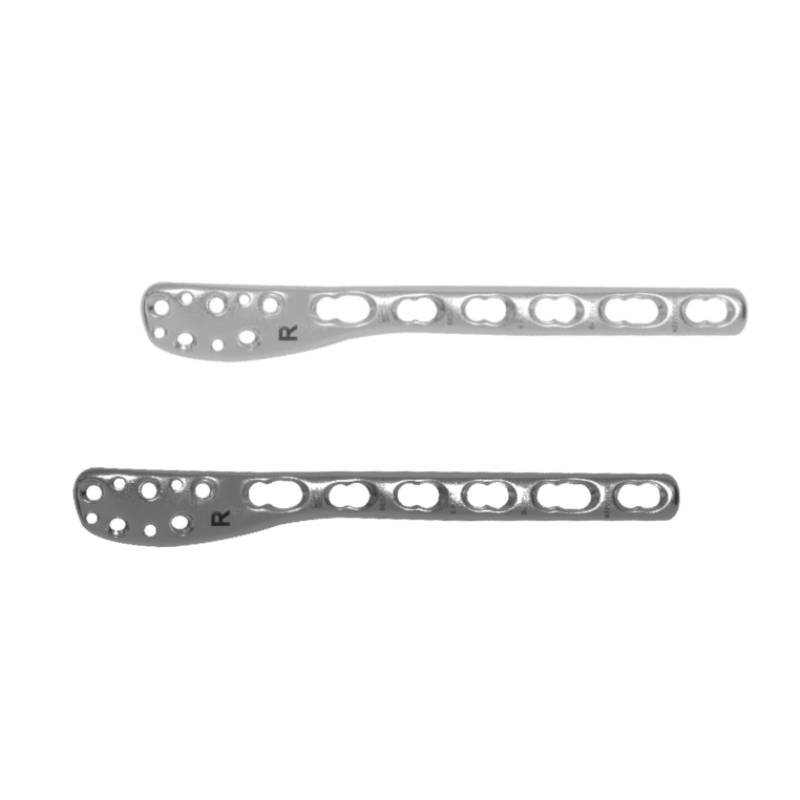

Following Size of Locking Distal Lateral Fibula Plate 2.7/3.5mm are available in Stainless Steel & Titanium Material.
Cat No. (Stainless Steel) |
Holes (Left) |
Cat No. (Titanium) |
882.004 |
4 |
Ti.882.004 |
882.005 |
5 |
Ti.882.005 |
882.006 |
6 |
Ti.882.006 |
882.007 |
7 |
Ti.882.007 |
882.008 |
8 |
Ti.882.008 |
882.009 |
9 |
Ti.882.009 |
882.010 |
10 |
Ti.882.010 |
882.012 |
12 |
Ti.882.012 |
Cat No. (Stainless Steel) |
Holes (Right) |
Cat No. (Titanium) |
882.104 |
4 |
Ti.882.104 |
882.105 |
5 |
Ti.882.105 |
882.106 |
6 |
Ti.882.106 |
882.107 |
7 |
Ti.882.107 |
882.108 |
8 |
Ti.882.108 |
882.109 |
9 |
Ti.882.109 |
882.110 |
10 |
Ti.882.110 |
882.112 |
12 |
Ti.882.112 |
