Mid-Shaft Plates are precision-engineered fixation implants designed for the stabilization of mid-diaphyseal fractures of small and long bones, like the humerus, femur, radius, and ulna, where anatomical alignment and rigid fixation are essential for successful healing. Manufactured from medical-grade titanium or stainless steel, these plates feature a low-profile contour and strategically positioned screw holes that help distribute mechanical loads evenly while minimizing soft tissue irritation. Their anatomical design facilitates accurate fracture reduction and secure fixation, making them suitable for simple, comminuted, and osteoporotic fracture patterns. At Siora Surgicals Pvt. Ltd., mid-shaft locking plates are produced under stringent quality standards to deliver dependable strength, biocompatibility, and long-term stability, supporting early mobilization and improved clinical outcomes.
Siora manufactures different types of mid-shaft plates required for the fixation of mid-diaphyseal fractures in various long bones. These large fragment locking plates are available in varying sizes.

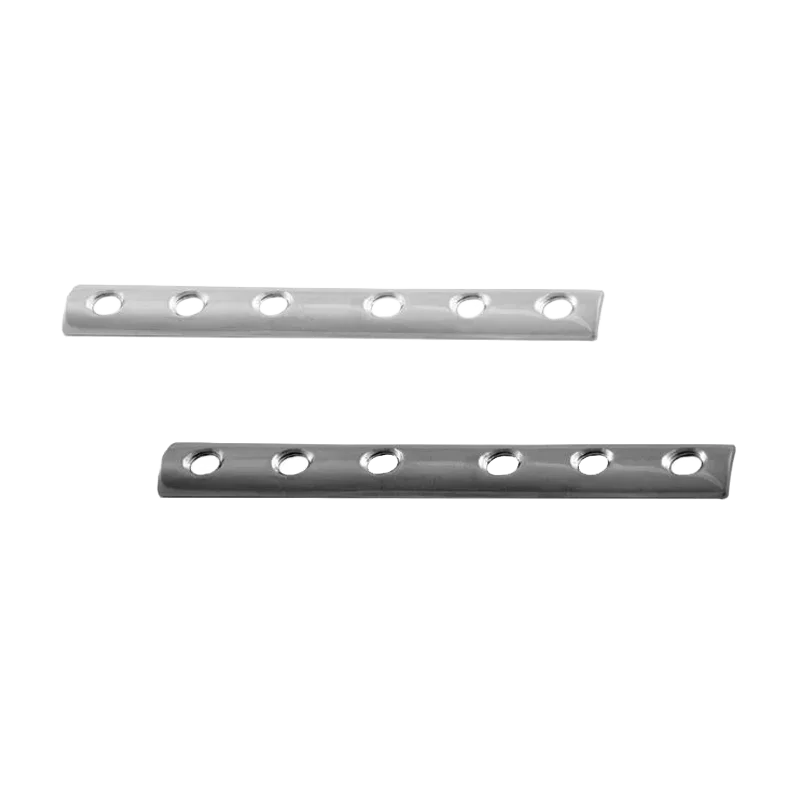

A low-profile locking plate designed for fixation of fractures in radius & ulna, providing angular stability, secure screw locking, and reliable support for fracture healing.
This Plate is to be use in Radius & Ulna Bones.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 138.204 – 138.212 | 4 – 12 | Ti.138.204 – Ti.138.212 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

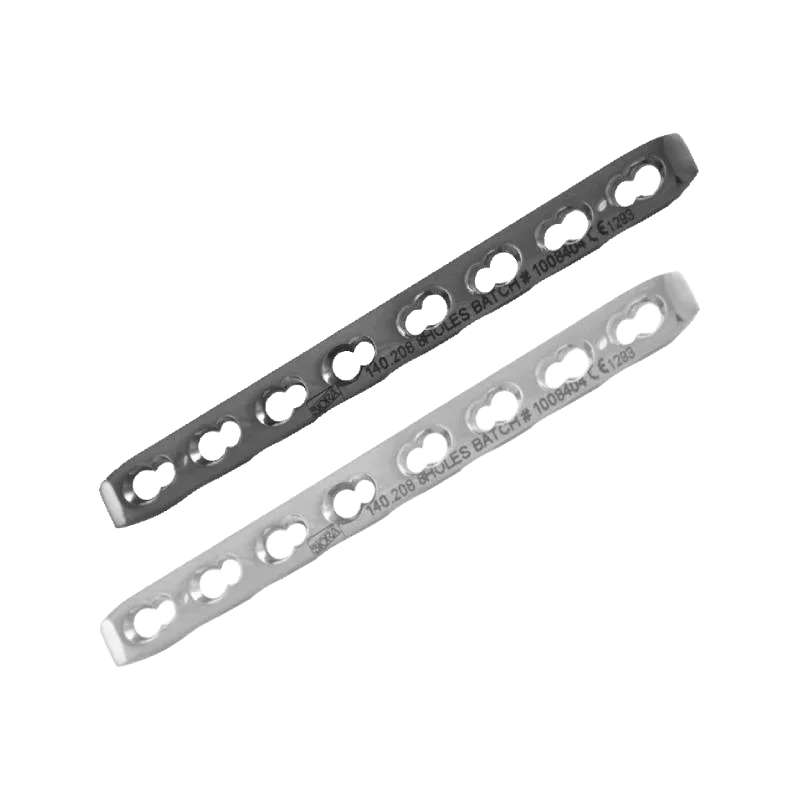

Engineered for small bone fracture fixation in radius, ulna, fibula, & pediatric humerus, this plate combines compression and locking technology to deliver stable fixation, enhanced load distribution, and dependable clinical outcomes.
This Plate is use in Radius and Ulna Bone
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 140.204 – 140.212 | 4 – 12 | Ti.140.204 – Ti.140.212 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

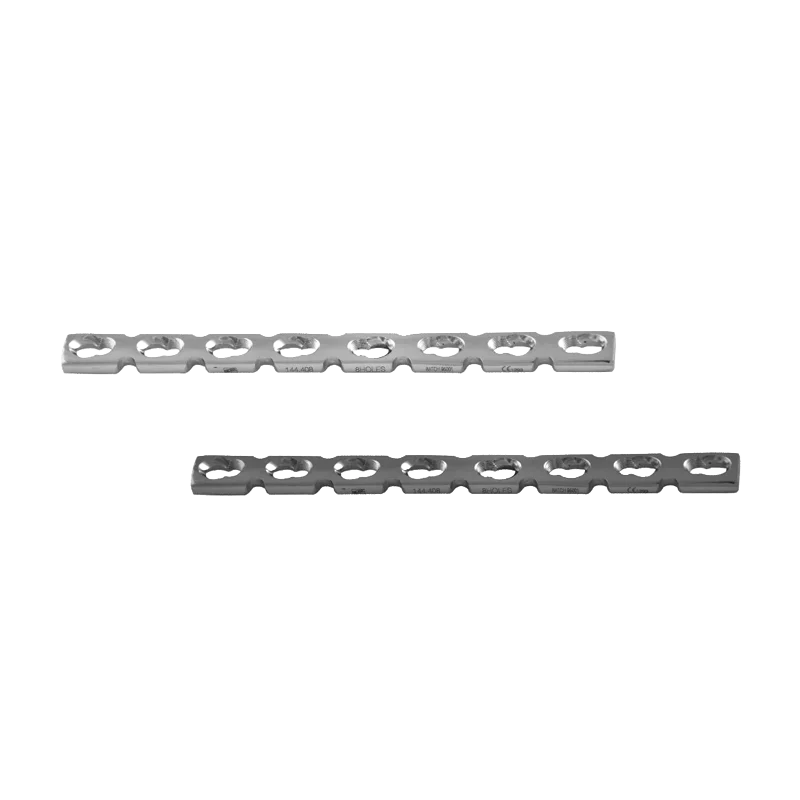

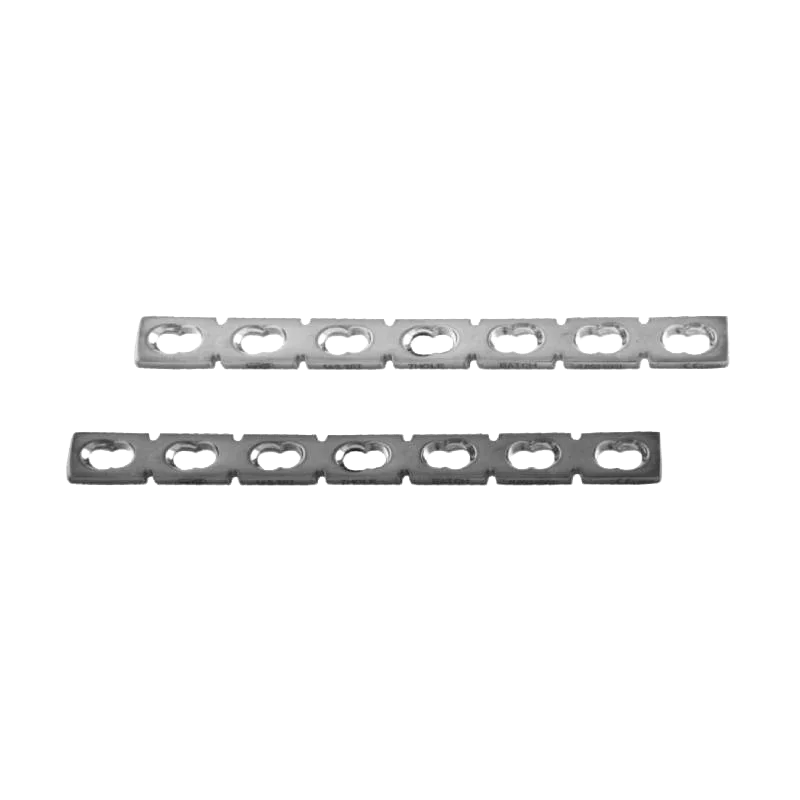

A versatile reconstruction plate that can be contoured intraoperatively, offering stable fixation for complex fractures in pelvic bone and distal humerus, while maintaining strength, alignment, and anatomical restoration.
This Plate is to be use in Pelvic Bone.
Indications: Fractures of Pelvic, Clavicle, Scapula & Distal Humerus Bones.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 144.405 – 144.422 | 5 – 22 | Ti.144.405 – Ti.144.422 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| 803.120 | LCP Bending Iron for Re-Construction Plate (Use in Paris) for 3.5 & 4.5 LCP Plate |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |

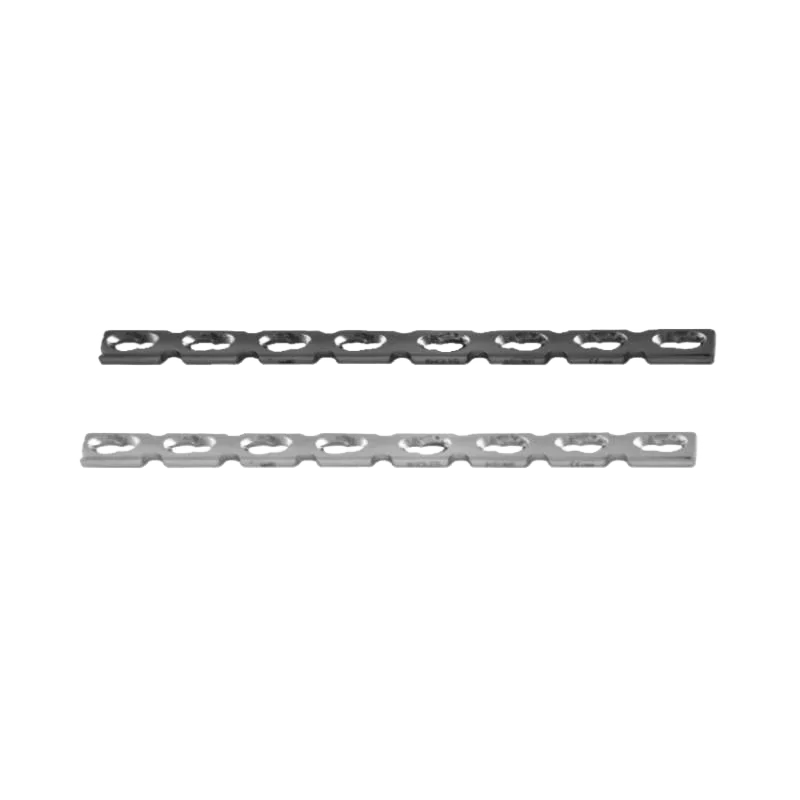

Featuring a thinner profile, this reconstruction plate allows precise contouring and secure locking fixation for fractures in the pelvis, clavicle, scapula, & distal humerus, requiring anatomical adaptation with minimal soft tissue irritation.
This Plate is to be use in Pelvic Bone.
Indications: Fractures of Pelvic, Clavicle, Scapula & Distal Humerus Bones.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 145.205 – 145.222 | 5 – 22 | Ti.145.205 – Ti.145.222 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| 803.120 | LCP Bending Iron for Re-Construction Plate (Use in Paris) for 3.5 & 4.5 LCP Plate |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
A low-profile pelvic plate intended for the fixation and reconstruction of pelvic fractures in curved anatomical areas.
This Plate is to be use in Pelvic Bone.
Indications: Fracture of Pelvic & Acetabular.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 144.206 – 144.218 | 6 – 18 | Ti.144.206 – Ti.144.218 |
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
Designed for long bone fractures in the humerus and tibia, this narrow locking compression plate provides strong fixation, optimal load sharing, and angular stability while preserving periosteal blood supply.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 157.204 – 157.216 | 4 – 16 | Ti.157.204 – Ti.157.216 |
A) 5.0mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
| Cat No. | Descreption |
| 260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
| 260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
| 301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
| 301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
| 303.020 | Large Depth Gauge |
| 803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
| 803.112 | Tap for 5.0mm Locking Head Screws |
| 804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
| 804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
| XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
A broad-profile fixation solution offering increased surface coverage and robust mechanical support for complex long bone fractures, such as femur & tibia, requiring enhanced stability and fixation strength.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 158.206 – 158.218 | 6 – 18 | Ti.158.206 – Ti.158.218 |
A) 5.0mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
| Cat No. | Descreption |
| 260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
| 260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
| 301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
| 301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
| 303.020 | Large Depth Gauge |
| 803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
| 803.112 | Tap for 5.0mm Locking Head Screws |
| 804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
| 804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
| XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
This anatomically adaptable plate is intended for complex pelvic fracture patterns, allowing precise contouring and secure locking fixation to restore alignment and structural integrity.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 149.203 – 149.216 | 3 – 16 | Ti.149.203 – Ti.149.216 |
A) 5.0mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
| Cat No. | Descreption |
| 260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
| 260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
| 301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
| 301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
| 303.020 | Large Depth Gauge |
| 803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
| 803.112 | Tap for 5.0mm Locking Head Screws |
| 804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
| 804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
| XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
Featuring a pre-contoured curved design, this plate conforms to bone anatomy while providing rigid fixation, angular stability, and improved support for demanding fracture cases, especially in the femoral shaft.
| Cat. No. (Stainless Steel) | Holes | Cat. No. (Titanium) |
| 893.010 – 893.020 | 10 – 20 | Ti.893.010 – Ti.893.020 |
A) 5.0mm Locking Head Screw - Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
| Stainless Steel | Hex Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
| Stainless Steel | Star Drive | Titanium |
| Cat No. | Size | Cat No. |
| 106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
| Cat No. | Descreption |
| 260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
| 260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
| 301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
| 301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
| 303.020 | Large Depth Gauge |
| 803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
| 803.112 | Tap for 5.0mm Locking Head Screws |
| 804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
| 804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
| XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
Designed to closely match the natural geometry of the bone, the locking mid-shaft plate ensures an improved fit while reducing the need for extensive intraoperative bending and contouring.
The slim and smooth profile helps minimize soft tissue irritation and implant prominence, contributing to enhanced patient comfort during the recovery period.
Precisely positioned screw holes allow secure fixation and balanced load distribution, helping maintain fracture alignment and stability throughout the healing process.
Manufactured from premium-grade titanium or stainless steel, the plates offer excellent resistance to bending and fatigue, ensuring reliable performance under physiological loads.
Engineered to provide rigid fixation for mid-shaft fractures, the plate supports accurate reduction, promotes bone union, and facilitates early postoperative mobilization when clinically appropriate.
Indicated for the fixation of humeral shaft fractures requiring stable internal support to restore anatomical alignment and facilitate early functional rehabilitation of the upper limb.
Suitable for stabilizing femoral shaft fractures where strong mechanical fixation is essential to withstand physiological loads and promote reliable bone healing.
Designed for displaced or unstable clavicular shaft fractures, providing rigid fixation that helps maintain clavicular length, alignment, and shoulder function.
Used in the treatment of tibial diaphyseal fractures requiring precise reduction and stable fixation to support weight-bearing recovery and fracture union.
Indicated for forearm shaft fractures involving the radius, ulna, or both bones, helping restore anatomical alignment and preserve rotational function of the forearm.
Mid shaft plates are used for the fixation and stabilization of long bone and short bone shaft fractures during orthopedic trauma procedures.
Mid shaft fracture plates are commonly used for:
Yes, our orthopedic mid shaft plates are anatomically designed for improved fitting, stability, and surgical convenience.
Our plates are manufactured using medical-grade stainless steel and titanium materials.
Broad compression plates provide increased strength and fixation support for larger bones, while narrow compression plates are commonly used for smaller bone applications.
Reconstruction plates are designed for complex fracture fixation where contouring and adaptability are required.
Yes, we offer various plate lengths, widths, and hole configurations to meet different surgical requirements.
Yes, we provide OEM manufacturing and private labeling solutions for orthopedic distributors and implant companies.
Yes, customized branding, laser marking, and packaging options are available for OEM customers.
Yes, our orthopedic trauma plates are manufactured under strict quality control processes and international manufacturing standards.
Distributors can contact our sales team with their market details and product requirements for partnership discussions.
If you are interested in our products and want to know more details, please leave message here, we will reply you as soon as we can.
