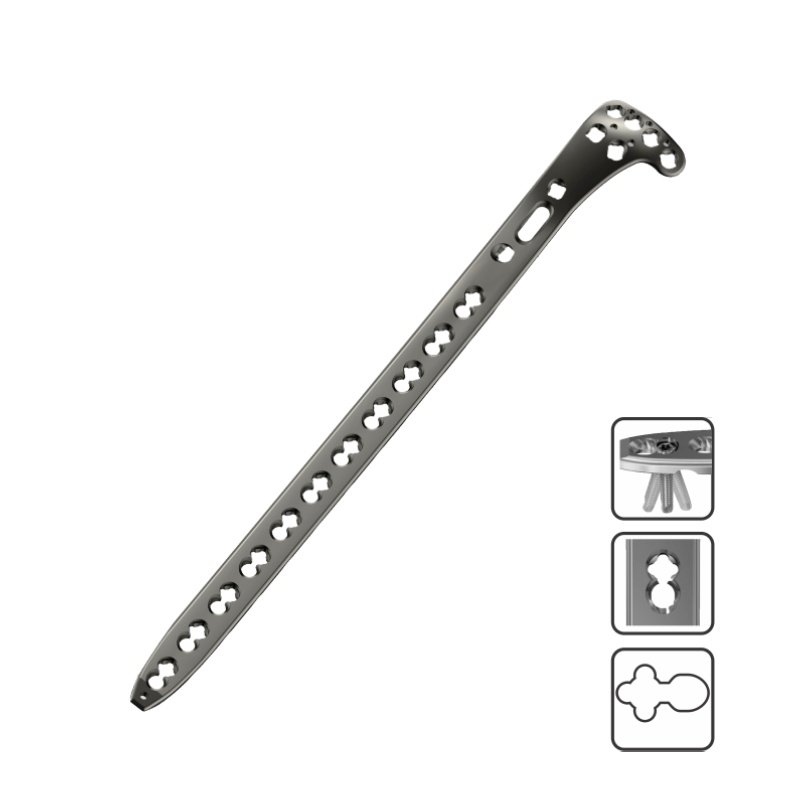

Locking Variable Angle Proximal Lateral Tibia Plate 3.5/4.0mm
- Raw Material: Stainless Steel & Titanium
Indications:
- Fractures Of The Proximal Tibia, Including Simple, Comminuted, Lateral – Wedge, medial Wedge, Depression, Bicondylar Fractures And Fractures With Associated Shaft Fractures.
- Treatment Of Nonunion, Malunions & Osteotomies Of Proximal Tibia.
Description
Following Screws are to be use with above Plates:
A) Variolock 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.910 To 102.980 | 10mm To 80mm | Ti.102.910 To Ti.102.980 |
B) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 To 102.480 | 10mm To 80mm | Ti.102.410 To Ti.102.480 |
C) Variolock 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.912 To 105.980 | 12mm To 80mm | Ti.105.912 To Ti.105.980 |
D) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 To 105.680 | 12mm To 80mm | Ti.105.612 To Ti.105.680 |
E) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 To 102.260 | 10mm To 60mm | Ti.102.210 To Ti.102.260 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M) |
| 260.250 | Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap – Quick Coupling End Dia. 4.0mm, – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screw) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
| 804.114 | Variable Angle Drill Guide For 3.5/4.0MM Variable Angle – LCP Plate |
| 804.128 | Conical Type Variable Angle Drill Sleeve 3.5/4.0mm |
Following Size of VARIOLOCK Locking Variable Angle Proximal Lateral Tibia Plate 3.5/4.0mm are available in Stainless Steel & Titanium Material:
| Cat No. | Holes | Cat No. |
| Stainless Steel | Left | Titanium |
| 891.004 | 4 | Ti.891.004 |
| 891.006 | 6 | Ti.891.006 |
| 891.008 | 8 | Ti.891.008 |
| 891.010 | 10 | Ti.891.010 |
| 891.012 | 12 | Ti.891.012 |
| 891.014 | 14 | Ti.891.014 |
| Cat No. | Holes | Cat No. |
| Stainless Steel | Right | Titanium |
| 891.104 | 4 | Ti.891.104 |
| 891.106 | 6 | Ti.891.106 |
| 891.108 | 8 | Ti.891.108 |
| 891.110 | 10 | Ti.891.110 |
| 891.112 | 12 | Ti.891.112 |
| 891.114 | 14 | Ti.891.114 |
