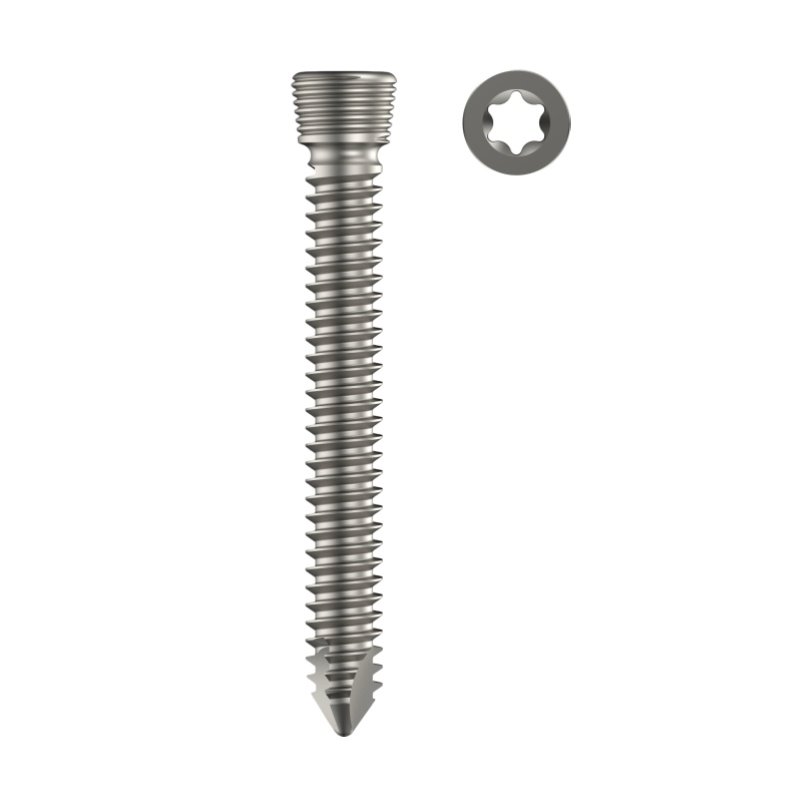

3.5mm Locking Head Screw – Self Tapping (Star Drive)
Following Corresponding Instruments to be Use with above Locking Screw:
Cat. No. | Product Description |
---|---|
260.281 | Drill Bit – S.S. – Quick Coupling End Dia 2.8mm X 180mm Long – Calibrated |
804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
804.121 | Tap for 3.5 MM Locking Head Screws |
804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
XP.301.081 | Star Drive Screw Driver – 2.5mm Tip (Torque 1.5Nm) |
XP.804.172 | Screw Driver Shaft, Q.C End 2.5mm Tip / T-15 |
804.114 | Variable Angle Drill Guide for 3.5/ 4.0mm Variable Angle – LCP Plate – (Optional) |
303.010 | Small Depth Gauge |
804.105 | LCP Universal Drill Guide 3.5mm |
Cat No. (Stainless Steel) | Length | Cat No. (Titanium) |
---|---|---|
102.410 | 10mm | Ti.102.410 |
102.412 | 12mm | Ti.102.412 |
102.414 | 14mm | Ti.102.414 |
102.416 | 16mm | Ti.102.416 |
102.418 | 18mm | Ti.102.418 |
102.420 | 20mm | Ti.102.420 |
102.422 | 22mm | Ti.102.422 |
102.424 | 24mm | Ti.102.424 |
102.426 | 26mm | Ti.102.426 |
102.428 | 28mm | Ti.102.428 |
102.430 | 30mm | Ti.102.430 |
102.432 | 32mm | Ti.102.432 |
102.434 | 34mm | Ti.102.434 |
102.435 | 35mm | Ti.102.435 |
102.436 | 36mm | Ti.102.436 |
102.438 | 38mm | Ti.102.438 |
102.440 | 40mm | Ti.102.440 |
102.445 | 45mm | Ti.102.445 |
102.450 | 50mm | Ti.102.450 |
102.455 | 55mm | Ti.102.455 |
102.460 | 60mm | Ti.102.460 |
102.465 | 65mm | Ti.102.465 |
102.470 | 70mm | Ti.102.470 |
102.475 | 75mm | Ti.102.475 |
102.480 | 80mm | Ti.102.480 |
