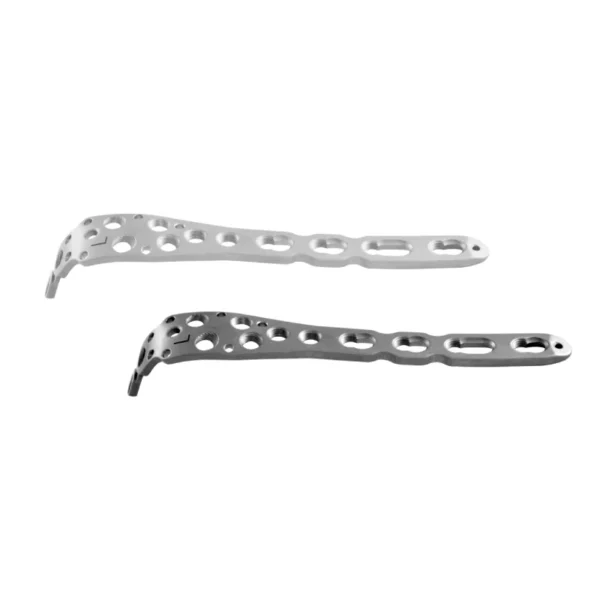

Locking Olecranon Plate 3.5 / 4.0 MM

  • The 3.5mm Locking Olecranon Plates are Indicated for Fixation of Fractures, Osteotomies and Nonunions of the Olecranon, Particularly in Osteopenic Bones.

Indications:

  • Fracture of Olecranon.

  • Nonunion of Olecranon.

  • Osteotomies of Olecranon.

Description

Following Screws are to be use with Above Plates:

A) 3.5mm Locking Head Screw – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
102.310 to 102.380 10mm to 80mm Ti.102.310 to Ti.102.380
Stainless Steel Star Drive Titanium
Cat No. Size Cat No.
102.410 to 102.480 10mm to 80mm Ti.102.410 to Ti.102.480

B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
105.512 to 105.580 12mm to 80mm Ti.105.512 to Ti.105.580
Stainless Steel Star Drive Titanium
Cat No. Size Cat No.
105.612 to 105.680 12mm to 80mm Ti.105.612 to Ti.105.680

C) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
102.210 to 102.296 10mm to 100mm Ti.102.210 to Ti.102.300

D) Cancellous Screw 4.0mm Dia. Short Thread

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
104.010 to 104.085 10mm to 85mm Ti.104.010 to Ti.104.085

E) Cancellous Screw 4.0mm Dia. Full Thread

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
105.010 to 105.085 10mm to 85mm Ti.105.010 to Ti.105.085

Following Instruments to be use with above Plate:

Cat No. Description
260.281 Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110 LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121 Tap for 3.5mm Locking Head Screws
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168 Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250 Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025 Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm
260.270 Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
264.037 Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm
301.040 Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.026 Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws)
301.025 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws)
303.010 Small Depth Gauge
XP.301.081 Star Drive Screw Driver – 2.5mm Tip/T-15

Following Size of Locking Olecranon Plate 3.5 / 4.0 MM are available in Stainless Steel & Titanium Material.

Cat No. (Stainless Steel) Holes (Left) Cat No. (Titanium)
865.003 3 Holes Ti.865.003
865.005 5 Holes Ti.865.005
865.007 7 Holes Ti.865.007
865.009 9 Holes Ti.865.009
Cat No. (Stainless Steel) Holes (Right) Cat No. (Titanium)
865.103 3 Holes Ti.865.103
865.105 5 Holes Ti.865.105
865.107 7 Holes Ti.865.107
865.109 9 Holes Ti.865.109
