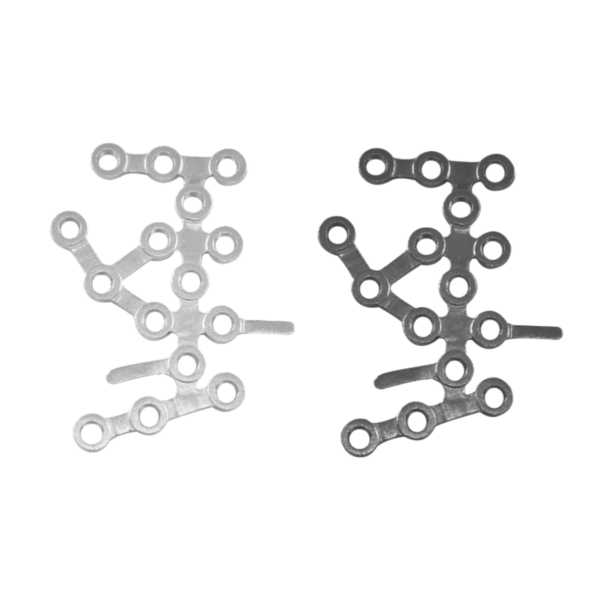

Locking Calcaneal Plate 2.7mm

Locking Calcaneal Plate 2.7mm

Send Enquiry
Return to Sub Category
Return to Main Category
  • Raw Material: Stainless Steel & Titanium

This Plate Is To Be Use In

Indications :

  • Complex Fractures of the Calcaneus Bone.
Categories: ,

Description

Following Screws are to be use with above Plates:

A) 2.7mm Locking Head Screw – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
101.310 To 101.35010mm To 50mmTi.101.310 To Ti.101.350
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
101.410 To 101.45010mm To 50mmTi.101.410 To Ti.101.450

B) Cortical Screw 2.7mm Dia. – Self Tapping

Stainless SteelHex DriveTitanium
Cat No.SizeCat No.
101.106 To 101.1406mm To 40mmTi.101.106 To Ti.101.140
Stainless SteelStar DriveTitanium
Cat No.SizeCat No.
101.710 To 101.74010mm To 40mmTi.101.710 To Ti.101.740
Following Instruments to be use with above Plate:
Cat No.Description
260.210Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long
264.020Bone Tap – Quick Coupling End Dia. 2.7mm,  Thread Length 33mm, Total Length 100mm
301.124Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle
301.031Hexagonal Screw Driver 2.0mm Tip – Silicon Handle
301.110Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
311.004Mini Depth Gauge(Measuring length 40mm)
804.120LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit
804.122Tap for 2.7mm Locking Head Screws
804.162Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8N.m)
804.166Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M)
XP.301.080Star Drive Screw Driver 2mm Tip/T-8
Following Size of Locking Calcaneal Plate 2.7mm are available in Stainless Steel & Titanium Material:
Cat No. (Stainless Steel) Right Length Cat No. (Titanium)
137.240 Small 40mm Ti.137.240
137.250 Medium 50mm Ti.137.250
Cat No. (Stainless Steel) Left Length Cat No. (Titanium)
137.245 Small 40mm Ti.137.245
137.255 Medium 50mm Ti.137.255
