Locking Anterior Clavicle Plate ‘S’ Shape 3.5mm

Indications:

  • Fractures of the Clavicle.

  • Nonunions of the Clavicle.

  • Malunions of the Clavicle.

  • Osteotomies of the Clavicle.

Description

Following Screws are to be use with Above Plates:

A) 3.5mm Locking Head Screw – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
102.310 to 102.380 10mm to 80mm Ti.102.310 to Ti.102.380

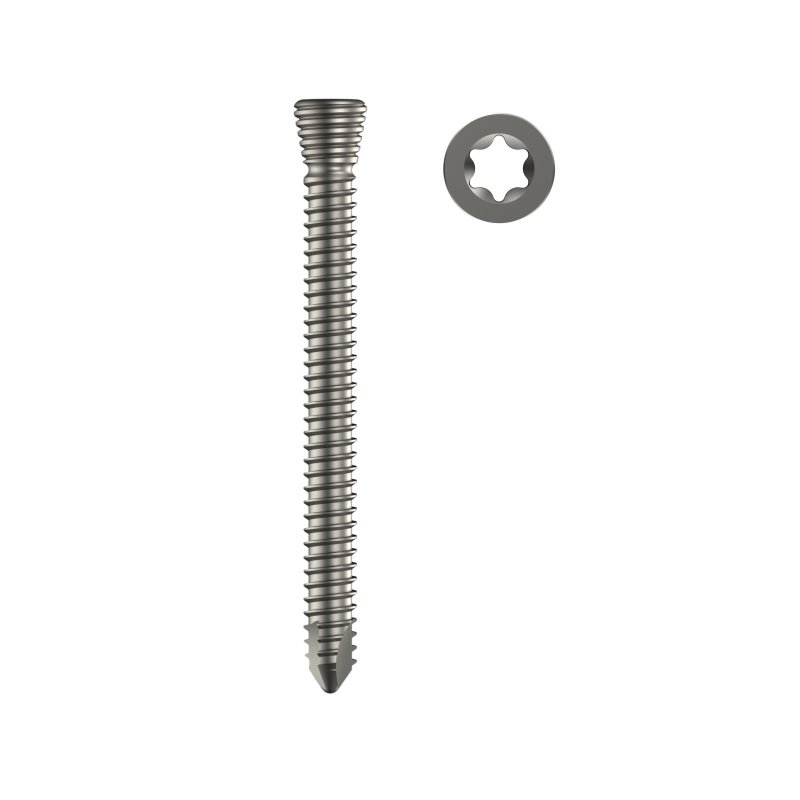

Stainless Steel Star Drive Titanium
Cat No. Size Cat No.
102.410 to 102.480 10mm to 80mm Ti.102.410 to Ti.102.480

B) Cortical Screw 3.5mm Dia. – Self Tapping

Stainless Steel Hex Drive Titanium
Cat No. Size Cat No.
102.210 to 102.296 10mm to 100mm Ti.102.210 to Ti.102.300

Following Instruments to be use with above Plate:

Cat No. Description
260.281 Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated
804.110 LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm
804.121 Tap for 3.5mm Locking Head Screws
804.163 Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm)
804.168 Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm)
260.250 Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long
264.025 Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm
260.270 Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long
301.040 Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle
301.026 Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws)
301.025 Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws)
303.010 Small Depth Gauge
XP.301.081 Star Drive Screw Driver – 2.5mm Tip/T-15

Following Size of Locking Anterior Clavicle Plate ‘S’ Shape 3.5mm are available in Stainless Steel & Titanium Material.

Cat No. (Stainless Steel) Holes (Left) Cat No. (Titanium)
877.005 5 Holes Ti.877.005
877.006 6 Holes Ti.877.006
877.007 7 Holes Ti.877.007
877.008 8 Holes Ti.877.008
Cat No. (Stainless Steel) Holes (Right) Cat No. (Titanium)
877.105 5 Holes Ti.877.105
877.106 6 Holes Ti.877.106
877.107 7 Holes Ti.877.107
877.108 8 Holes Ti.877.108
