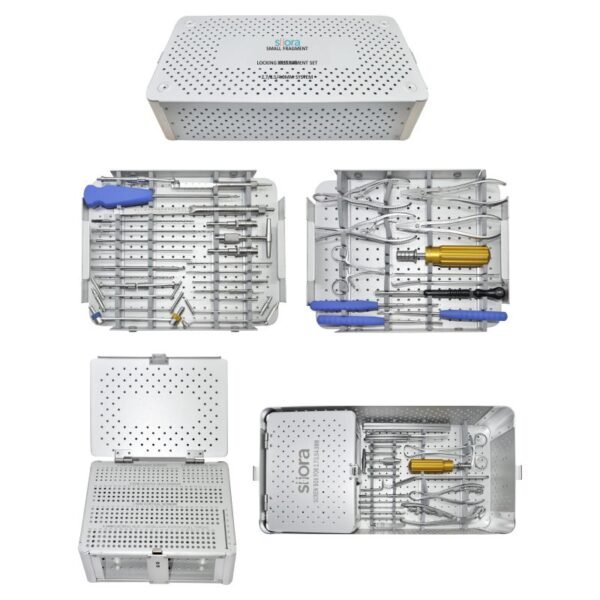

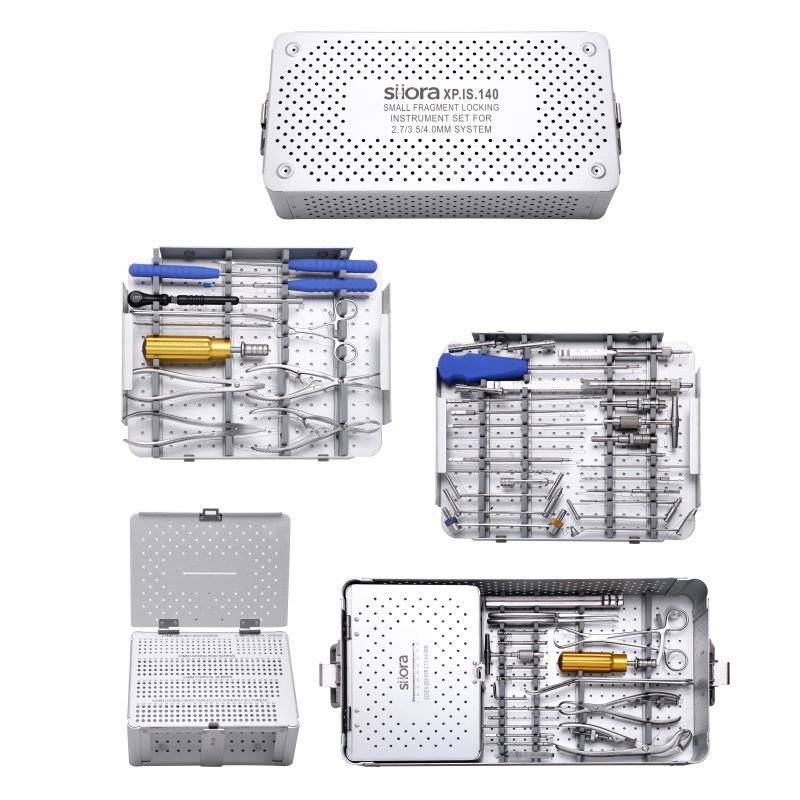

Small Fragment Locking Instrument Set For 2.7/3.5/4.0mm System

Description

XP.IS.140 Small Fragment Locking Instrument Set For 2.7/3.5/4.0mm System Unit
XP.910.001 Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 150mm Long 1
XP.910.002 Drill Bit – S.S. – Quick Coupling End Dia. 2.8mm X 180mm Long 1
XP.910.003 Drill Bit – S.S. – Plain Shank, Jacob Chuck End Dia. 1.8mm X 100mm Long 2
XP.910.004 Drill Bit – S.S. – Plain Shank, Jacob Chuck End Dia. 2.0mm X 125mm Long 3
XP.910.005 Drill Bit – S.S. – Plain Shank, Jacob Chuck End Dia. 2.7mm X 115mm Long 1
XP.910.006 Drill Bit – S.S. – Plain Shank, Jacob Chuck End Dia. 3.0mm X 115mm Long 2
XP.910.007 Bone Tap – Quick Coupling End For 2.7mm Cortical Screws, Length 70mm 1
XP.910.008 Bone Tap – Quick Coupling End For 2.7mm Locking Head Screws, Length 70mm 1
XP.910.009 Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm 1
XP.910.010 Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 65mm, Total Length 185mm 1
XP.910.011 Bone Tap – Quick Coupling End Dia. 4.0mm, – Cancellous, Thread Length 20mm, Total Length 110mm 1
XP.910.012 Hexagonal Screw Driver -2.0mm Tip 1
XP.910.013 Hexagonal Screw Driver Shaft, Q.C. End 2.0mm Tip 1
XP.910.014 Hexagonal Screw Driver Shaft, Q.C. End 2.5mm Tip Length 100mm 1
XP.910.015 Hexagonal Screw Driver Shaft, Q.C. End 2.5mm Tip Length 140mm 1
XP.910.016 Tourque Limiting Handle for Screw Driver 2.0mm Tip (0.8N.M) 1
XP.910.017 Tourque Limiting Handle for Screw Driver 2.5mm Tip (1.5N.M) 1
XP.910.018 Self Holding Sleeve for 2.7 mm Locking Head Screws 1
XP.910.019 Self Holding Sleeve for 2.7 mm Cortical Screws 1
XP.910.020 Depth Gauge for 2.7mm Locking Head Screws 1
XP.910.021 Depth Gauge for 2.7mm Cortical Screws 1
XP.910.022 Depth Gauge for 3.5/4.0mm Screws 1
XP.910.023 Small Plate Bender – Pair 1
XP.910.024 Plate Bending Plier – Straight 1
XP.910.025 Plate Bending Plier – Curved 1
XP.910.026 LCP Drill Sleeve 2.7mm for 1.8mm Drill Bit 2
XP.910.027 Variable Angle Drill Guide for VA-LCP 2.7MM Plates 1
XP.910.028 LCP Drill Sleeve 3.5mm (for 2.8mm Drill Bit ) 2
XP.910.029 LCP Universal Drill Guide 2.0/2.7mm 1
XP.910.030 LCP Universal Drill Guide -3.5mm 1
XP.910.031 Guide Wire Sleeve for 2.7mm screws 2
XP.910.032 Guide Wire Sleeve for 3.5mm screws 2
XP.910.033 Guide Wire Plain Trocar Tip 1.5mm X 150mm 6
XP.910.034 Threaded Guide Wire 1.5mm X 150mm 2
XP.910.035 Small Neutral & Loaded Drill Guide 2.5mm 1
XP.910.036 Drill & Tap Sleeve Combined 2.5/3.5mm 1
XP.910.037 Counter Sink, Q.C. End 6.0mm Head (For 2.7,3.5&4.0mm Screws) 1
XP.910.038 Hollow Reamer For Removal of Damage Screw (For 2.7,3.5&4.0mm Screws ) 1
XP.910.039 Conical Extraction Screw For 2.7, 3.5 & 4.0mm Screws 1
XP.910.040 Hohmann Retractor 16mm Wide, Long Narrow Tip, 240mm Length 2
XP.910.041 Hohmann Retractor 8mm Wide, Short Narrow Point, 165mm Length 1
XP.910.042 Hohmann Retractor 14mm Wide, Short Narrow Point, 150mm Length 1
XP.910.043 Periosteal Elevator 3.0mm Width, Curved Blade, Straight Edge 1
XP.910.044 Periosteal Elevator 3.0mm Width, Curved Blade, Round Edge 1
XP.910.045 Periosteal Elevator – Curved 9.0mm 1
XP.910.046 Periosteal Elevator – Curved 12mm 1
XP.910.047 Quick Coupling Handle T -Type 2
XP.910.048 Mini Reduction – Forceps Pointed 1
XP.910.049 Screw Holding – Forceps 1
XP.910.050 Pin -Wrench 1
XP.910.051 Self Centering Bone Holding Forceps -190mm 2
XP.910.052 Reduction forceps With Pointed Soft Look-155mm 1
XP.910.053 Reduction forceps With Serrated Soft Lock – 155mm 1
XP.910.054 Reduction Forceps – Pointed Ratchet Lock – 180mm 1
XP.910.055 Reduction forceps – Serrated Speed Lock – 170mm 1
XP.910.056 Aluminium Screw Box For 2.7/3.5/4.0mm Small Locking Fragment 1
XP.400.141 Graphic Instrument Box for Small Fragment Locking System 1
