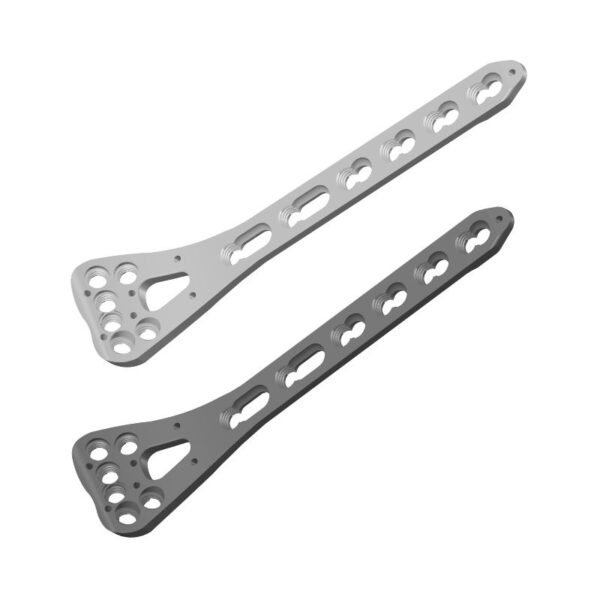

Locking Volar Plate 2.7mm Head 4 Holes (Head width 22.0mm)
Indications:
-
Complex Intra – Articular and Extra – Articular Fractures of Distal Radius (Volar Approach).
-
Osteotomies of Distal Radius (Volar Approach).
Following Screws are to be use with above Plates:
A) 2.7mm Locking Head Screw – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
101.310 to 101.350 | 10mm to 50mm | Ti.101.310 to Ti.101.350 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
101.410 to 101.450 | 10mm to 50mm | Ti.101.410 to Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
101.106 to 101.140 | 6mm to 40mm | Ti.101.106 to Ti.101.140 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
101.710 to 101.740 | 10mm to 40mm | Ti.101.710 to Ti.101.740 |
Following Instruments to be use with above Plate:
Cat No. | Description |
---|---|
260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
264.020 | Bone Tap Quick Coupling End Dia 2.7mm, Thread Length 33mm, Total Length 100mm |
301.024 | Hexagonal Screw Driver With Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking screws) |
301.031 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
311.004 | Mini Depth Gauge (Measuring Length 40mm) |
804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
804.122 | Tap for 2.7mm Locking Head Screws |
804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8Nm) |
804.166 | Hexagonal Screw Driver Q.C.End Shaft, 2.0mm Tip (for Torque Handle 0.8Nm) |
XP.301.080 | Small Star Drive Screw Driver 2mm Tip / T-8 |
Following Size of Locking Volar Plate 2.7mm Head 4 Holes (Head width 22.0mm) are available in Stainless Steel & Titanium Material.
Cat No. (Stainless Steel) | Holes (Left) | Cat No. (Titanium) |
---|---|---|
894.202 | 2 Holes | Ti.894.202 |
894.203 | 3 Holes | Ti.894.203 |
894.204 | 4 Holes | Ti.894.204 |
894.205 | 5 Holes | Ti.894.205 |
894.206 | 6 Holes | Ti.894.206 |
894.207 | 7 Holes | Ti.894.207 |
894.208 | 8 Holes | Ti.894.208 |
894.210 | 10 Holes | Ti.894.210 |
Cat No. (Stainless Steel) | Holes (Right) | Cat No. (Titanium) |
---|---|---|
894.302 | 2 Holes | Ti.894.302 |
894.303 | 3 Holes | Ti.894.303 |
894.304 | 4 Holes | Ti.894.304 |
894.305 | 5 Holes | Ti.894.305 |
894.306 | 6 Holes | Ti.894.306 |
894.307 | 7 Holes | Ti.894.307 |
894.308 | 8 Holes | Ti.894.308 |
894.310 | 10 Holes | Ti.894.310 |
