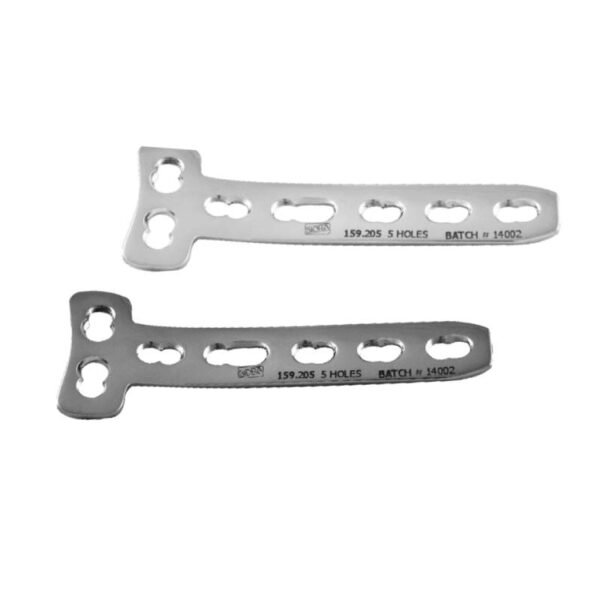

Locking T-Plate 4.5/5.0mm
- Raw Material: Stainless Steel & Titanium
This Plate Is To Be Use In
Indications :
- Buttress Metaphyseal Fractures Of The Proximal And Distal Tibia medial Tibial Plateau.
- Split Type Fractures Of The Medial Tibia Plateau.
- Medial Split Fractures With Associated Depression.
- Segmental fractures Of The Proximal Tibia.
- Fixation Of Nonunion & Malunions Of The Medial Proximal Tibia & Tibia Shaft.
- Metaphyseal Fractures Of The Proximal Humerus.
Description
Following Screws are to be use with above Plates:
A) 5.0mm Locking Head Screw – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
Following Instruments to be use with above Plate:
Cat No. | Description |
---|---|
260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
303.020 | Large Depth Gauge |
803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
803.112 | Tap for 5.0mm Locking Head Screws |
804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
Following Size of Locking T-Plate 4.5/5.0mm are available in Stainless Steel & Titanium Material.
Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
---|---|---|
159.203 | 3 | Ti.159.203 |
159.204 | 4 | Ti.159.204 |
159.205 | 5 | Ti.159.205 |
159.206 | 6 | Ti.159.206 |
159.207 | 7 | Ti.159.207 |
159.208 | 8 | Ti.159.208 |
159.209 | 9 | Ti.159.209 |
