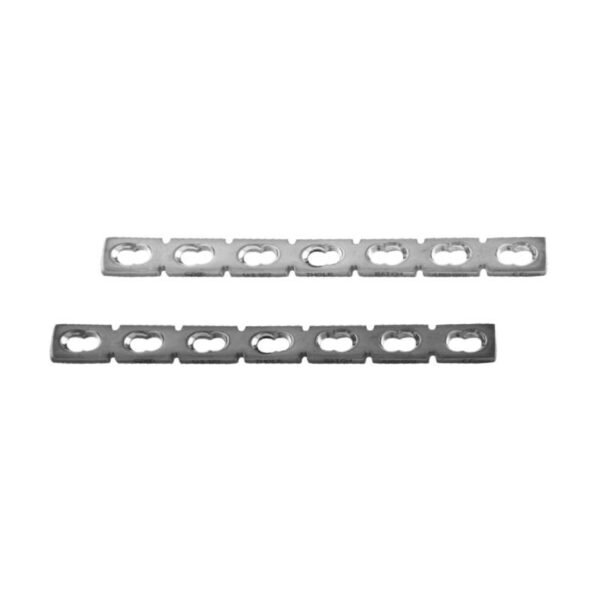

Locking Re-construction Plate 4.5mm – Straight
- Raw Material: Stainless Steel & Titanium
This Plate Is To Be Use In
Indications :
- To fix the Pelvic
Description
Following Screws are to be use with above Plates:
A) 5.0mm Locking Head Screw – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
Following Instruments to be use with above Plate:
Cat No. | Description |
---|---|
260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
303.020 | Large Depth Gauge |
803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
803.112 | Tap for 5.0mm Locking Head Screws |
804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
Following Size of Locking Re-construction Plate 4.5mm – Straight are available in Stainless Steel & Titanium Material.
Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
---|---|---|
149.203 | 3 | Ti.149.203 |
149.204 | 4 | Ti.149.204 |
149.205 | 5 | Ti.149.205 |
149.206 | 6 | Ti.149.206 |
149.207 | 7 | Ti.149.207 |
149.208 | 8 | Ti.149.208 |
149.209 | 9 | Ti.149.209 |
149.210 | 10 | Ti.149.210 |
149.211 | 11 | Ti.149.211 |
149.212 | 12 | Ti.149.212 |
149.213 | 13 | Ti.149.213 |
149.214 | 14 | Ti.149.214 |
149.215 | 15 | Ti.149.215 |
149.216 | 16 | Ti.149.216 |
