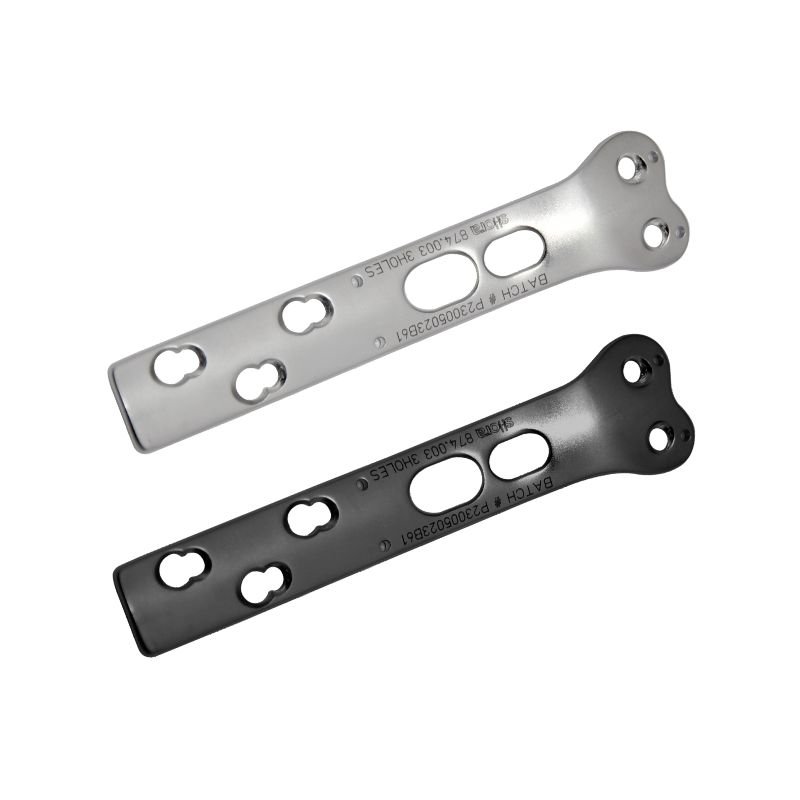

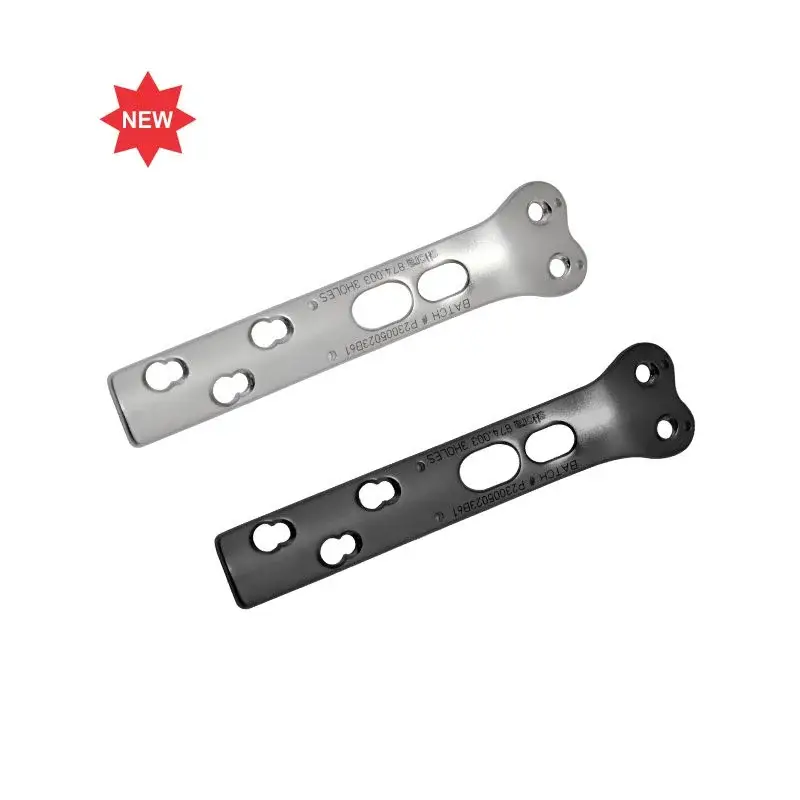

Locking Lateral Support Plate 3.5/4.0mm (use with PFN/TFN nail)
- Raw Material: Stainless Steel & Titanium
This Plate Is To Be Use In
Indications :
- An Unstable Trochanteric Fracture Femur With Lateral Wall Comminution.
Description
Following Screws are to be use with above Plates:
A) 3.5mm Locking Head Screw – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
102.310 To 102.380 | 10mm To 80mm | Ti.102.310 To Ti.102.380 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
102.410 To 102.480 | 10mm To 80mm | Ti.102.410 To Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
105.512 To 105.580 | 12mm To 80mm | Ti.105.512 To Ti.105.580 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
105.612 To 105.680 | 12mm To 80mm | Ti.105.612 To Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
102.210 To 102.296 | 10mm To 100mm | Ti.102.210 To Ti.102.300 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
102.710 To 102.760 | 10mm To 60mm | Ti.102.710 To Ti.102.760 |
Following Instruments to be use with above Plate:
Cat No. | Description |
---|---|
260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm x 180mm Long – Calibrated |
260.250 | Drill Bit – S.S. – Quick Coupling End Dia. 2.5mm X 115mm Long |
260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length 50mm, Total Length 110mm |
264.037 | Bone Tap – Quick Coupling End Dia. 4.0mm, – Cancellous, Thread Length 85mm, Total Length 110mm |
301.025 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screw) |
301.026 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head Screw) |
301.040 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
303.010 | Small Depth Gauge |
804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
804.121 | Tap for 3.5mm Locking Head Screws |
804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip(For Torque Handle 1.5N.M) |
XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
Following Size of Locking Lateral Support Plate 3.5/4.0mm (use with PFN/TFN nail) are available in Stainless Steel & Titanium Material.
Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
---|---|---|
874.002 | 2 | Ti.874.002 |
874.003 | 3 | Ti.874.003 |
