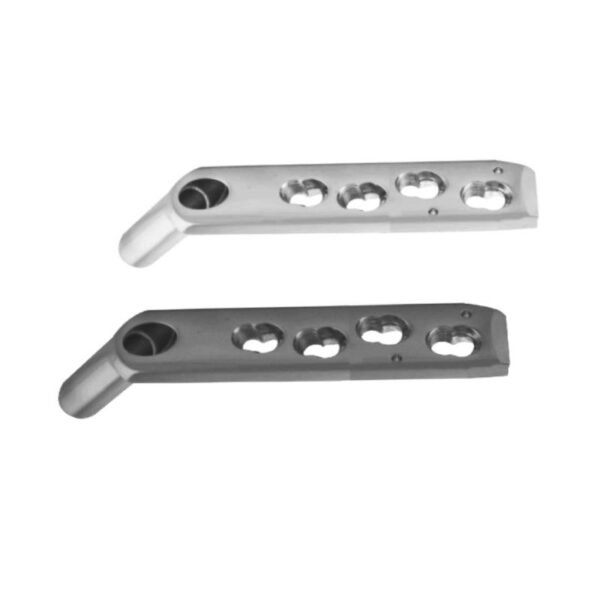

Locking- DHS- 135 Deg. Long Barrel
- Raw Material: Stainless Steel & Titanium
This Plate Is To Be Use In
Indications :
- Subtrochantric Fractures.
- Intertrochantric Fractures With Shaft Femur.
- Intertrochantric Fractures (Type A-3).
Description
Following Screws are to be use with above Plates:
A) 5.0mm Locking Head Screw – Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.314 To 106.390 | 14mm To 90mm | Ti.106.314 To Ti.106.390 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.414 To 106.490 | 14mm To 90mm | Ti.106.414 To Ti.106.490 |
B) 4.5mm Cortical Screw Self Tapping
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.214 To 106.274 | 14mm To 74mm | Ti.106.214 To Ti.106.274 |
Stainless Steel | Star Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
106.120 To 106.160 | 20mm To 60mm | Ti.106.120 To Ti.106.160 |
C) DHS/DCS Screw With Compression Screw
Stainless Steel | Hex Drive | Titanium |
---|---|---|
Cat No. | Size | Cat No. |
168.050 To 168.145 | 50mm To 145mm | Ti.168.050 To Ti.168.145 |
Following Instruments to be use with above Plate:
Cat No. | Description |
---|---|
260.430 | Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated |
260.320 | Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long |
301.029 | Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) |
301.050 | Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle |
303.020 | Large Depth Gauge |
803.110 | LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm |
803.112 | Tap for 5.0mm Locking Head Screws |
804.164 | Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm) |
804.170 | Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M) |
XP.301.082 | Star Drive Screw Driver – 3.5mm Tip/T-20 |
701.022 | DHS Angle Guide – 135º |
701.023 | T – Handle with Quick Coupling |
701.024 | Direct Measuring Device – S.S. |
701.025 | DHS Tripple Reamer |
701.026 | Wrench for DHS Screws |
701.027 | DHS Impactor |
701.028 | DHS Tap |
701.029 | Centering Sleeve for DHS Tap |
701.030 | Centering Sleeve for DHS Wrench |
701.031 | Coupling Screw for Inserting DHS Screw |
701.032 | Guide Shaft for Coupling Screw |
701.033 | Long Coupling Screw for DHS Screw Removal |
701.034 | Stylet 2.5mm |
701.021 | Threaded Guide Wire 2.5mm |
Following Size of Locking- DHS- 135 Deg. Long Barrel are available in Stainless Steel & Titanium Material.
Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
---|---|---|
166.303 | 3 | Ti.166.303 |
166.304 | 4 | Ti.166.304 |
166.305 | 5 | Ti.166.305 |
166.306 | 6 | Ti.166.306 |
166.307 | 7 | Ti.166.307 |
166.308 | 8 | Ti.166.308 |
166.309 | 9 | Ti.166.309 |
166.310 | 10 | Ti.166.310 |
– | 12 | Ti.166.312 |
– | 14 | Ti.166.314 |
– | 16 | Ti.166.316 |
– | 18 | Ti.166.318 |
– | 20 | Ti.166.320 |
