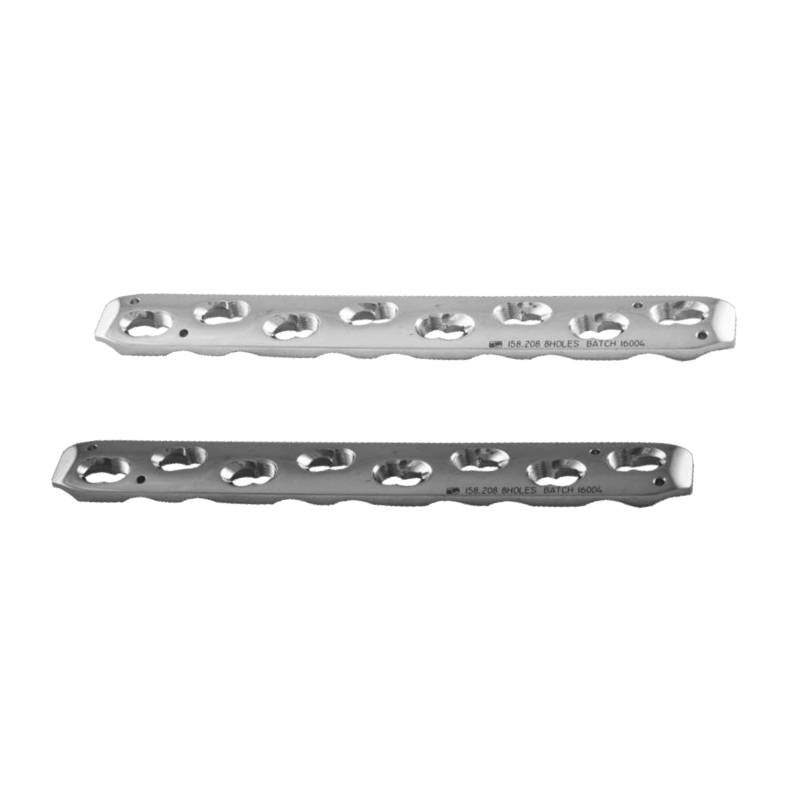

Locking Broad Compression Plate 4.5/5.0mm

This Plate Is To Be Use In

Indications :

Fixation of Various Long Bones, Such as femur & Tibia.
These are also used In Fixation of Periprosthetic Fractures, Osteopenic Bone Fixation of Nonunions And Malunions in Adult Patients.

Description

Following Screws are to be use with above Plates:

A) 5.0mm Locking Head Screw – Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
106.314 To 106.390	14mm To 90mm	Ti.106.314 To Ti.106.390

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
106.414 To 106.490	14mm To 90mm	Ti.106.414 To Ti.106.490

B) 4.5mm Cortical Screw Self Tapping

Stainless Steel	Hex Drive	Titanium
Cat No.	Size	Cat No.
106.214 To 106.274	14mm To 74mm	Ti.106.214 To Ti.106.274

Stainless Steel	Star Drive	Titanium
Cat No.	Size	Cat No.
106.120 To 106.160	20mm To 60mm	Ti.106.120 To Ti.106.160

Following Instruments to be use with above Plate:

Cat No.	Description
260.430	Drill Bit – S.S. – Quick Coupling End Dia. 4.3mm X 221mm Long – Calibrated
260.320	Drill Bit – S.S. – Quick Coupling End Dia. 3.2mm X 130mm Long
301.129	Hexagonal Screw Driver with Self Holding Sleeve 3.5mm Tip (for 5.0mmLocking Head & 5.0mm Locking Cancellous Screw) – Silicon Handle
301.114	Large Hexagonal Screw Driver 3.5mm Tip – Silicon Handle
303.020	Large Depth Gauge
803.110	LCP Drill Sleeve 5.0mm for Drill Bit 4.3mm
803.112	Tap for 5.0mm Locking Head Screws
804.164	Q.C. Torque Screw Driver Handle 3.5mm Tip (Torque 4.0Nm)
804.170	Hexagonal Screw Driver Q.C. End Shaft, 3.5mm Tip(For Torque Handle 4.0N.M)
XP.301.082	Star Drive Screw Driver – 3.5mm Tip/T-20

Following Size of Locking Broad Compression Plate 4.5/5.0mm are available in Stainless Steel & Titanium Material:
