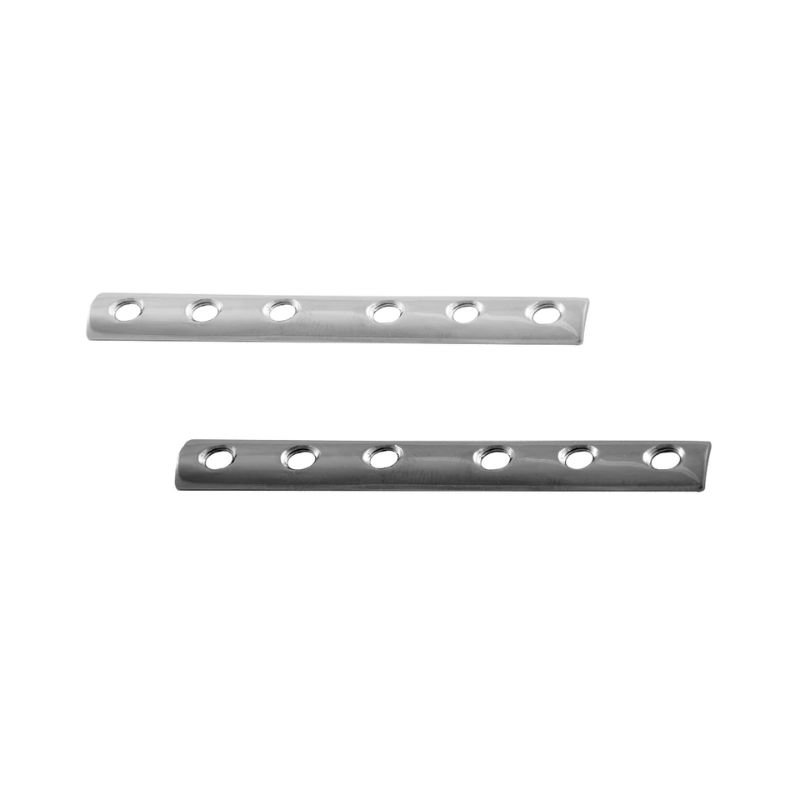

3.5 mm One Third Locking Plate
- Raw Material: Stainless Steel & Titanium
- This Plate is to be use in Radius & Ulna Bones.
Indications:
- Fracture of Radius Bone.
- Fracture of Ulna Bone.
- Fracture of Fibula Bone.
Description
Following Screws are to be use with above Plates:
A) 3.5mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.310 to 102.380 | 10mm to 80mm | Ti.102.310 to Ti.102.380 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.410 to 102.480 | 10mm to 80mm | Ti.102.410 to Ti.102.480 |
B) 4.0mm Locking Head Cancellous Screw Full Thread – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.512 to 105.580 | 12mm to 80mm | Ti.105.512 to Ti.105.580 |
| Stainless Steel | Star Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.612 to 105.680 | 12mm to 80mm | Ti.105.612 to Ti.105.680 |
C) Cortical Screw 3.5mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 102.210 to 102.296 | 10mm to 100mm | Ti.102.210 to Ti.102.300 |
D) Cancellous Screw 4.0mm Dia. Short Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 104.010 to 104.085 | 10mm to 85mm | Ti.104.010 to Ti.104.085 |
E) Cancellous Screw 4.0mm Dia. Full Thread
| Stainless Steel | Hex Drive | Titanium |
|---|---|---|
| Cat No. | Size | Cat No. |
| 105.010 to 105.085 | 10mm to 85mm | Ti.105.010 to Ti.105.085 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|---|
| 260.281 | Drill Bit – S.S. Quick Coupling End Dia. 2.8mm X 180mm Long Calibrated |
| 804.110 | LCP Drill Sleeve 3.5mm for Drill Bit 2.8mm |
| 804.121 | Tap for 3.5mm Locking Head Screws |
| 804.163 | Q.C. Torque Screw Driver Handle 2.5mm Tip (Torque 1.5Nm) |
| 804.168 | Hexagonal Screw Driver Q.C. End Shaft, 2.5mm Tip (for Torque Handle 1.5Nm) |
| 260.250 | Drill Bit – S.S. Quick Coupling End Dia. 2.5mm x 115mm Long |
| 264.025 | Bone Tap – Quick Coupling End Dia. 3.5mm, Thread Length50mm, Total Length 110mm |
| 260.270 | Drill Bit – S.S. – Quick Coupling Dia. 2.7mm X 125mm Long |
| 264.037 | Bone Tap Quick Coupling End Dia. 4.0mm – Cancellous, Thread Length 85mm, Total Length 110mm |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 301.126 | Hexagonal Screw Driver With Self Holding Sleeve 2.5mm Tip (for 2.7mm Cortical, 3.5mm & 4.0mm Locking Head screws) – Silicon Handle |
| 301.125 | Hexagonal Screw Driver with Self Holding Sleeve 2.5mm Tip (for 3.5mm Cortical & 4.0mm Cancellous Screws) – Silicon Handle |
| 303.010 | Small Depth Gauge |
| XP.301.081 | Star Drive Screw Driver – 2.5mm Tip/T-15 |
Following Size of 3.5 mm One Third Locking Plate are available in Stainless Steel & Titanium Material:
| Cat No. (Stainless Steel) | Holes | Cat No. (Titanium) |
|---|---|---|
| 138.204 | 4 Holes | Ti.138.204 |
| 138.205 | 5 Holes | Ti.138.205 |
| 138.206 | 6 Holes | Ti.138.206 |
| 138.207 | 7 Holes | Ti.138.207 |
| 138.208 | 8 Holes | Ti.138.208 |
| 138.209 | 9 Holes | Ti.138.209 |
| 138.210 | 10 Holes | Ti.138.210 |
| 138.211 | 11 Holes | Ti.138.211 |
| 138.212 | 12 Holes | Ti.138.212 |
